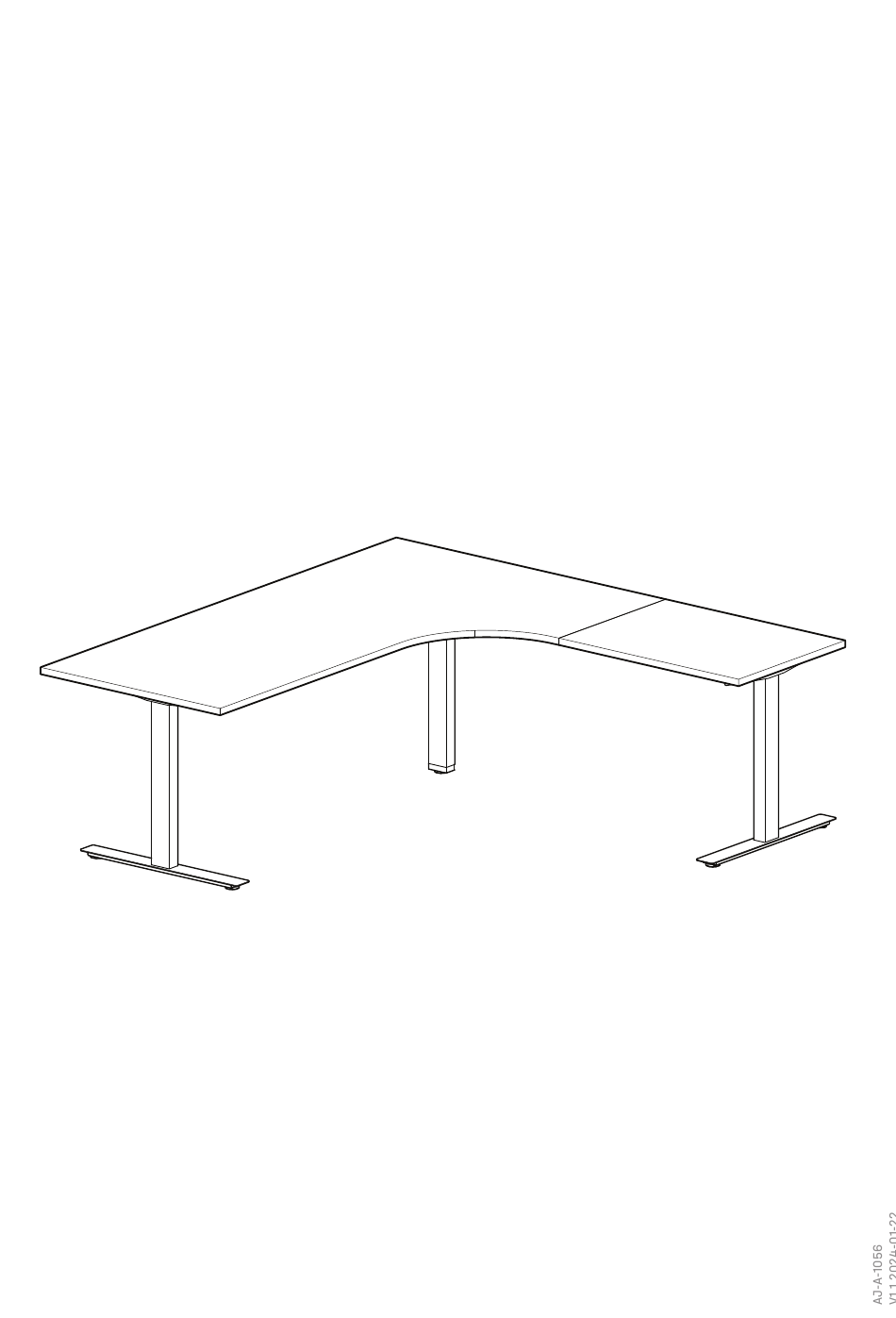

- Page 1 Assembly instructions Fixed 3-leg corner desk...
-
Page 2: Package Contents
PACKAGE CONTENTS DESK COMPONENTS Crossbar rail Side bracket Foot 600mm Corner leg Crossbar rail (Corner leg) Foot 700mm HARDWARE M6x30 5mm rubber M8x16 M6x12 M6x10 Screw clamp Tapping screw 5x20 Corner bracket Hex key Note: There may be additional hardware included in the package, as these are used for different desk configurations. - Page 3 ASSEMBLY INSTRUCTIONS Crossbar rail M6x12...
- Page 4 Corner bracket M6x30 M6x12 Top view...
- Page 5 M8x16 M6x12 M8x16...
- Page 6 M8x16 M6x12 M8x16...
- Page 7 M6x12 M6x10 Screw clamp 5mm rubber CLICK!
- Page 8 10-15cm 10-15cm Tapping screw 5x20...
- Page 9 Assembly instructions - 3 leg corner desk English Step 1 Start with the two crossbar rails (B3). Make sure that you pick the correct ones, as the are very similar to the add- on crossbar rails (B8). See illustration to check the difference. The crossbar rails are compressed when delivered. 1.
