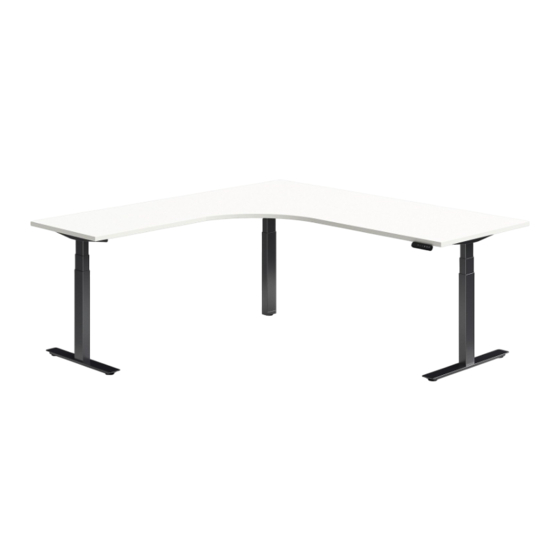

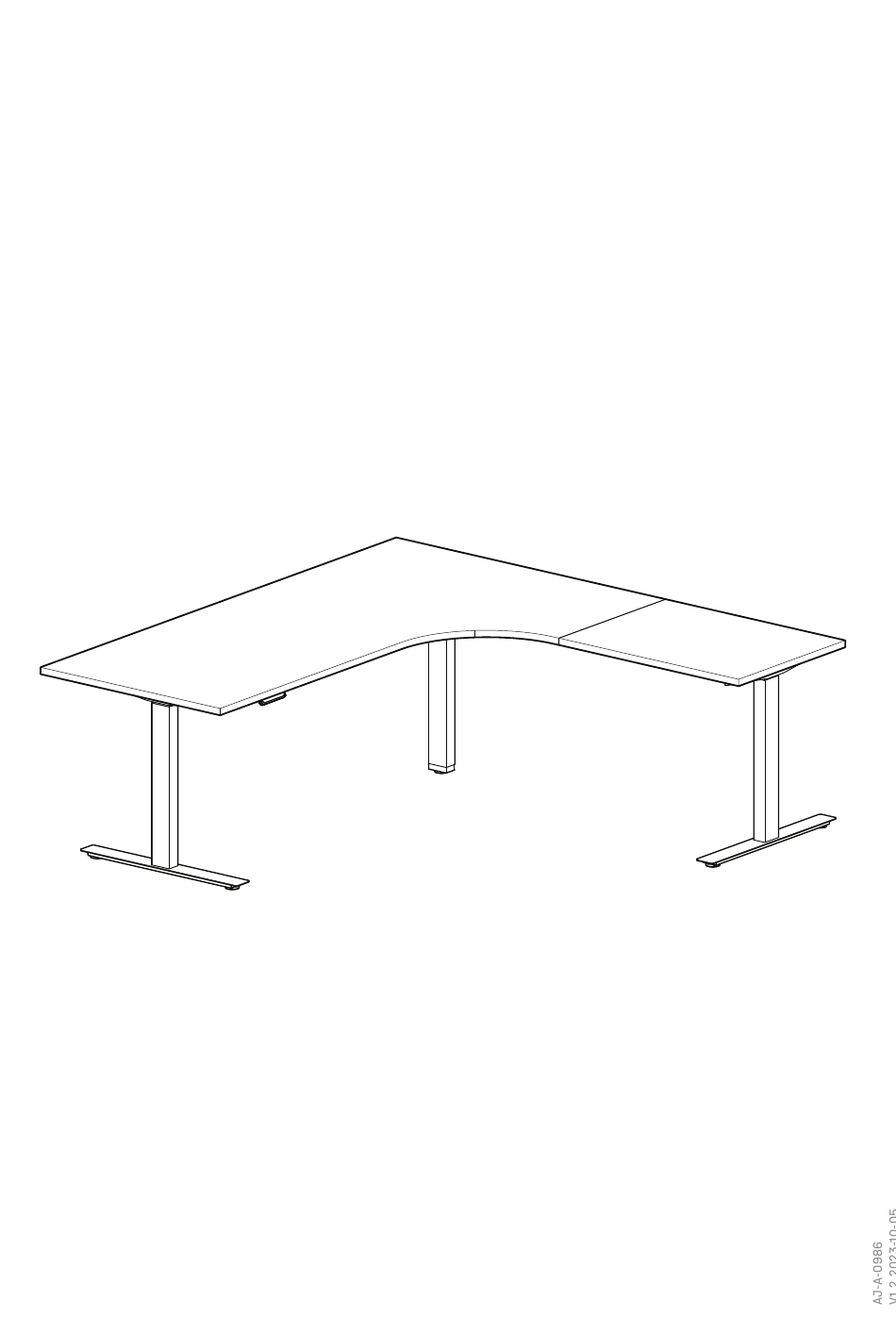

- Page 1 Electric height adjustable desk Assembly instructions 3-leg standing desk...
-
Page 2: Package Contents
PACKAGE CONTENTS DESK COMPONENTS Crossbar rail Side bracket Foot 600mm Corner leg Crossbar rail (Corner leg) Foot 700mm HARDWARE 2mm rubber 5mm rubber M8x14 M6x12 M6x10 Screw clamp Screw guide bush Handset* Control box Power cable Leg cable (short) Leg cable (long) Tapping screw 5x20 Tapping screw 5x16 M6x30... - Page 3 Screw clamp Screw guide bush 2mm rubber 5mm rubber D3 & D8 M6x12...
- Page 4 Corner bracket M6x30 M6x12...
- Page 5 M8x14 M6x12 M8x14...
- Page 6 M8x14 M6x12 M8x14...
- Page 7 M6x12 M6x10...
- Page 8 10-15cm 10-15cm Tapping screw 5x20...
- Page 9 Leg cable Leg cable Handset Tapping screw 5x16 Control box Tapping screw 5x20 Power cable (short) (long) Underside view...
- Page 10 Assembly instructions - 3 leg corner desk English Step 1 The crossbar rails (D3 & D8) are compressed when delivered. 1. Loosen the set screws slightly and extend the inner rail. 2. Attach rubber bushing (H6) and plastic screw guide bushing (H4) on the thicker part of the crossbar rail.
- Page 11 Assembly instructions - 3 leg corner desk English Step 9 1. Fix the tabletop to the frame, using the included tapping screws 5x20mm (H8). Step 10 (H8) to fix the control box (H10). Place it between the two crossbars, near one of 1.
