GMB850 user's manual

2.3.5

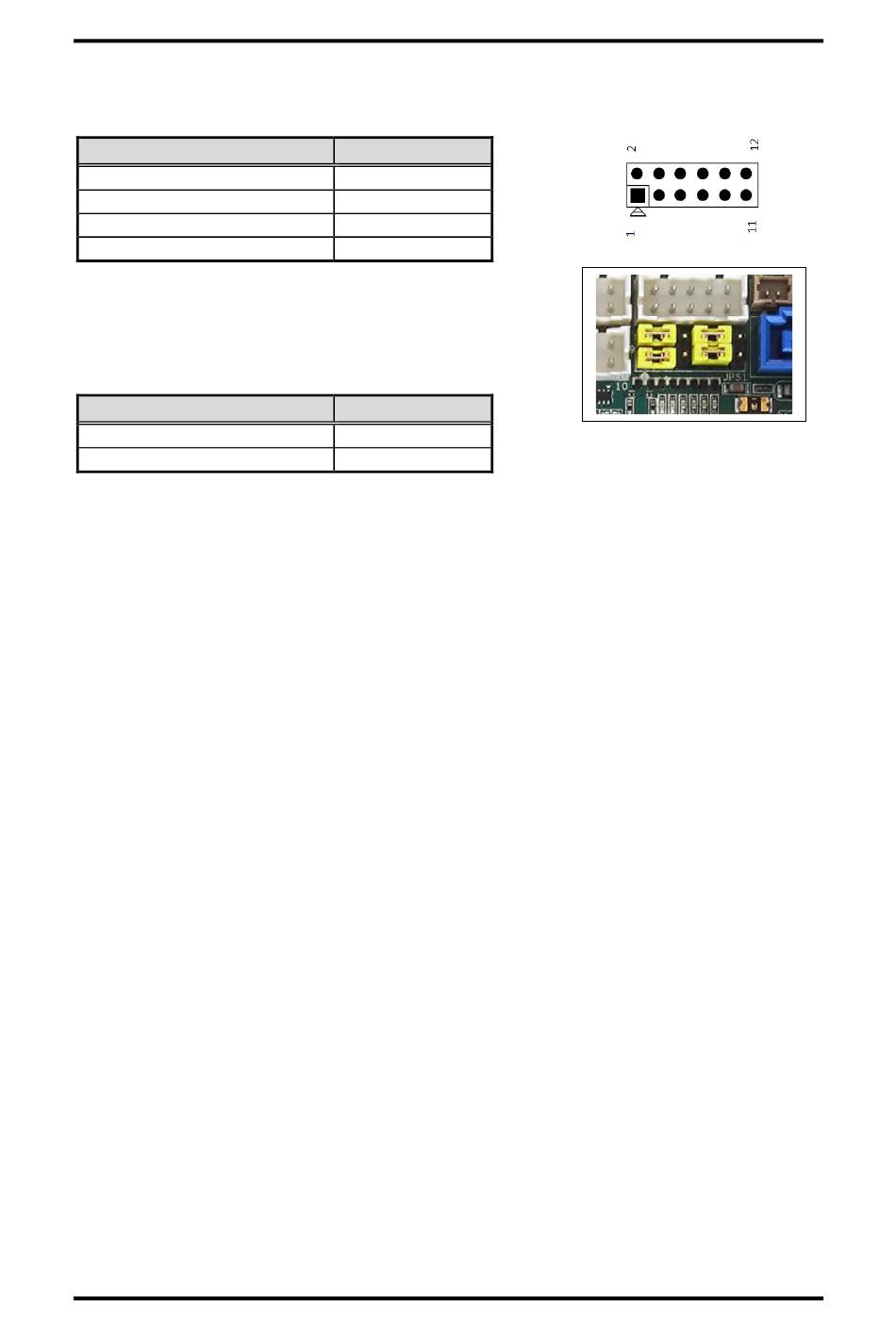

COM3 & COM4: Function select (JPS1)

COM3 could be defined as RS232 or ccTalk

COM4 could be defined as RS232 or ccTalk.

Function

COM5 RS232 (Default)

COM5 ccTalk

COM6 RS232 (Default)

COM6 ccTalk

2.3.6

COM5 could be defined as RS232 or TTL_5V

Function

RS232 (Default)

TTL_5V

Setting

1-3 close

3-5 close

2-4 close

4-6 close

Setting

1-3, 2-4 close

3-4, 5-6 close
