- Page 1 Caution: You must read this before you proceed Bar Cart Label Picture Description Legs Top Frame Middle Shelf Frame Bottom Frame Noble house Home Furnishings LLC 1 of 9...
- Page 2 Glass Top mesh shelf Wheel Wheel with Brake Label Picture Description ① Allen Wrench ② Bolt (M6*16MM) ③ Flate Wash ④ Spanner ⑤ Glass Suction Cup Noble house Home Furnishings LLC 2 of 9...

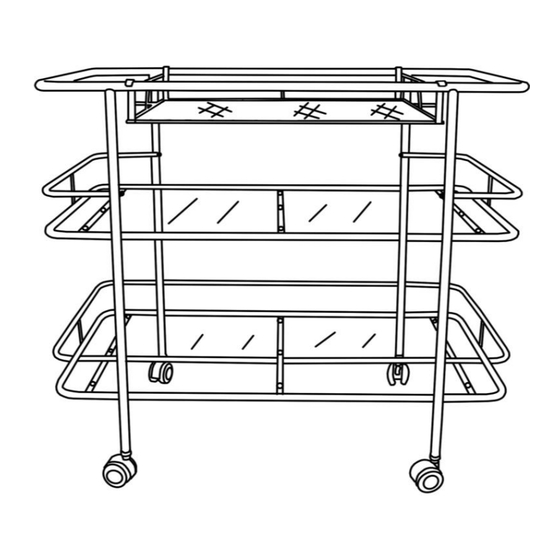

- Page 3 Before Beginning Assembly: *18pcs *18pcs *20pcs Overview Top mesh shelf（F） Top Frame(B) Middle Shelf Legs（A) Frame(C) Bottom Glass(E) Frame(D) Wheel(G) Wheel with brake (H) FRONT FACING Noble house Home Furnishings LLC 3 of 9...
- Page 4 This Bar Cart has multiple parts and may require up to 30 minutes to assemble. To give you an overview of the Bar Cart parts, the above picture is to help you put the various parts into perspective. Please read through the instructions below to familiarise yourself with the parts and steps before assembly.
- Page 5 Do not fully tighten the Bolts. Step 4 ① ① ② ② ③ ③ Attach Bottom Frame(D) to Left Frame(A) using Bolts(②) and Flat Washer(③)with Allen Wrench(①). Do not fully tighten the Bolts. Noble house Home Furnishings LLC 5 of 9...
- Page 6 Step 6 ③ Attach Wheels with Brakes(H) to Legs(A) in Left side using Spanner(④). Attach Wheels(G) to Legs(A) in Right Side using Spanner(④). Step 7 Stand the Bar Cart up, as shown. Noble house Home Furnishings LLC 6 of 9...
- Page 7 Gently press down on the Glass Shelves after you put them into the frame. Please pressure down on each corner to adjust the gap between glass and frame. Then,Tighten all bolts at all joints fully in a sequential manner. Noble house Home Furnishings LLC 7 of 9...
- Page 8 Step 11 Your Bar Cart is ready for use. This Bar Cart can only be used on a flat, level surface. Noble house Home Furnishings LLC 8 of 9...
- Page 9 Stains may be removed with mild soap solution and ● damp cloth. Children should not climb or jump on the furniture. ● Dust and pick-up spills using a clean, non-colored, ● lint-free cloth. Noble house Home Furnishings LLC 9 of 9...
