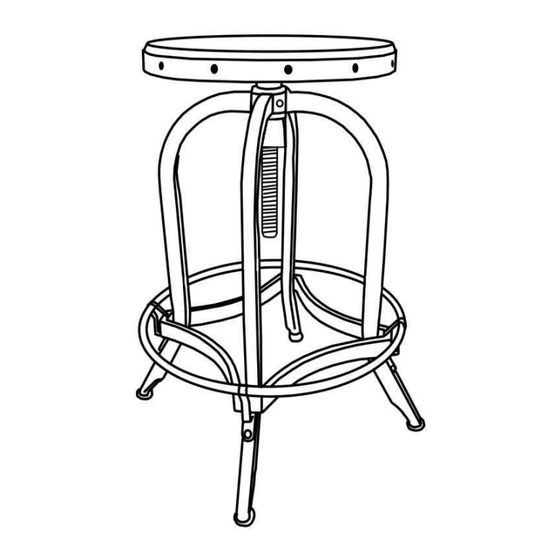

Noble House Home Furnishings Barstool Assembly Instructions Manual
Hide thumbs
Also See for Barstool:
- Assembly instructions manual (9 pages) ,
- Assembly instructions (5 pages) ,
- Assembly instructions manual (9 pages)
Related Manuals for Noble House Home Furnishings Barstool
Summary of Contents for Noble House Home Furnishings Barstool
- Page 1 Caution : You must read this before you proceed Barstool Label Picture Description Barstool Seat Barstool Leg Frame with Thread Rod Barstool Leg Noble House Home Furnishings LLC. 1 OF 7...
- Page 2 Footrest Label Picture Description Bolt(M6*16mm) ① Washer(M6) ② Spring Washer(M6) ③ Allen Wrench(M6) ④ Bolt(M8*16mm) ⑤ Allen Wrench(M8) ⑥ Washer(M8) ⑦ ⑧ Spring Washer(M8) ⑨ Bolt(M6*20mm) Noble House Home Furnishings LLC. 2 OF 7...
- Page 3 Before *10pcs Beginning Assembly *10pcs *5pcs *5pcs *5PCS *5pcs *5PCS Step 1 Place the above components on a clean and soft surface. Noble House Home Furnishings LLC. 3 OF 7...
- Page 4 ③ ① ④ Attach the Barstool Leg(C) to the Barstool Leg frame with the Thread Rod(B) using the Bolts(①) ,Washers(②) and Spring Washers(③) with the Allen Wrench(④), then bolt in the other side of the Barstool Leg(C). Do not fully tighten the bolts.
- Page 5 Stand up the assembled Barstool frame as shown above. Step 5 ④ ⑨ ② ③ Attach the Footrest(D) to the assembled Barstool frame(B.C) using the Bolts(⑨), Washers(②) and Spring Washers(③) with the Allen Wrench(④). Tighten all bolts sequentially. Noble House Home Furnishings LLC. 5 OF 7...
- Page 6 ⑤ ⑧ ⑧ ⑦ ⑦ Attach the Barstool Seat(A) to the assembled Barstool frame(B.C.D) using the Bolts(⑤)，Washers(⑦) and Spring Washers(⑧) with the Allen Wrench(⑥) . Tighten all bolts. Step 7 Your barstool is ready to use. This Barstool can only be used on a flat, level surface.
- Page 7 Stains may be removed with mild soap solution and ● damp cloth. Children should not climb or jump on the furniture. ● Dust and pick-up spills using a clean, non-colored, ● lint-free cloth. Noble House Home Furnishings LLC. 7 OF 7...
