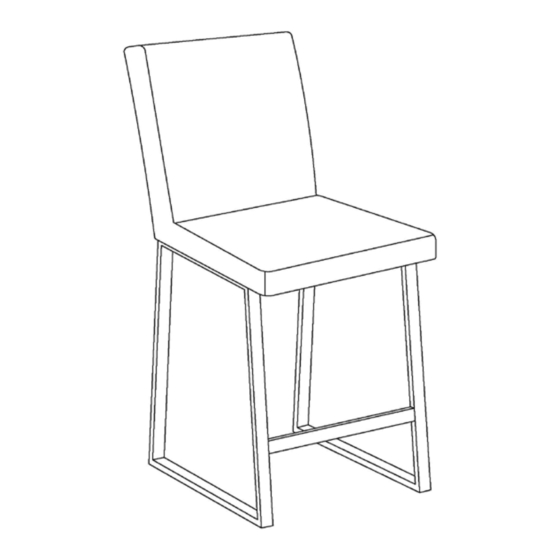

Noble House Home Furnishings BARSTOOL Assembly Instructions Manual
Hide thumbs
Also See for BARSTOOL:
- Assembly instructions manual (9 pages) ,
- Assembly instructions (5 pages) ,
- Assembly instructions manual (8 pages)
Related Manuals for Noble House Home Furnishings BARSTOOL
Summary of Contents for Noble House Home Furnishings BARSTOOL
- Page 1 Assembly Instructions Caution: You must read this before you proceed BARSTOOL Parts List Label Picture Description Chair Seat Left Leg (with Adjustable Leveller) Noble house Home Furnishings LLC Page 1 OF 8...
-
Page 2: Assembly Preparation
Right Leg (with Adjustable Leveller) Front Rail Back Rail Front Connecting Hardware Label Picture Description ① Bolt (M6*19mm) Spring Washer ② ③ Washer ④ Allen Key Assembly Preparation Before Beginning Assembly: Noble house Home Furnishings LLC Page 2 OF 8... -
Page 3: Assembly Steps
This Barstool has multiple parts and may require up to 30 minutes to assemble. To give you an overview of the Barstool, the above picture is to help you put the various parts into perspective. Please read through the instructions below to familiarise yourself with the parts and steps before assembly. - Page 4 Attach Front Rail(D) and Back Rail(E) to Left Leg(B) using Bolts(①), Spring Washer(②) and Washer(③) with Allen Key(④) as shown above. Please note: This Step do not fully tighten the Bolts. Step 3 Noble house Home Furnishings LLC Page 4 OF 8...
- Page 5 Please note: This Step do not fully tighten the Bolts. Step 5 Insert Right Leg(C) into Front Connecting Rod(F) using Bolts(①), Spring Washer(②)and Washer(③) with Allen Key(④) as shown above. Please note: This Step do not fully tighten the Bolts. Noble house Home Furnishings LLC Page 5 OF 8...
- Page 6 Tighten all Bolts at all joints fully in a sequential manner. Step 7 Adjust the Pre-installed Levelers at the bottom of Left Leg (B) and Right Leg (C) until the Barstool is level with the ground. Noble house Home Furnishings LLC Page 6 OF 8...
- Page 7 Step 8 Your Barstool is ready for use. This Barstool can only be used on a flat, level surface. Noble house Home Furnishings LLC Page 7 OF 8...
- Page 8 Noble house Home Furnishings LLC Page 8 OF 8...
