2-3. LED Indictor
PWR LED: System is ready.
RX LED: RS232/422/485 Receiving.
TX LED: RS232/422/485 Transmitting.
13. Install TRP-C08
13-1. Power Connection (USB Internal Bus)
Direct power input from USB bus port, current 100mA/+5V, no external power necessary.
13-2. USB Connection
TRP-C08 use the standard A to B type USB cable between host and converter.
3-3. RS232 wiring connection

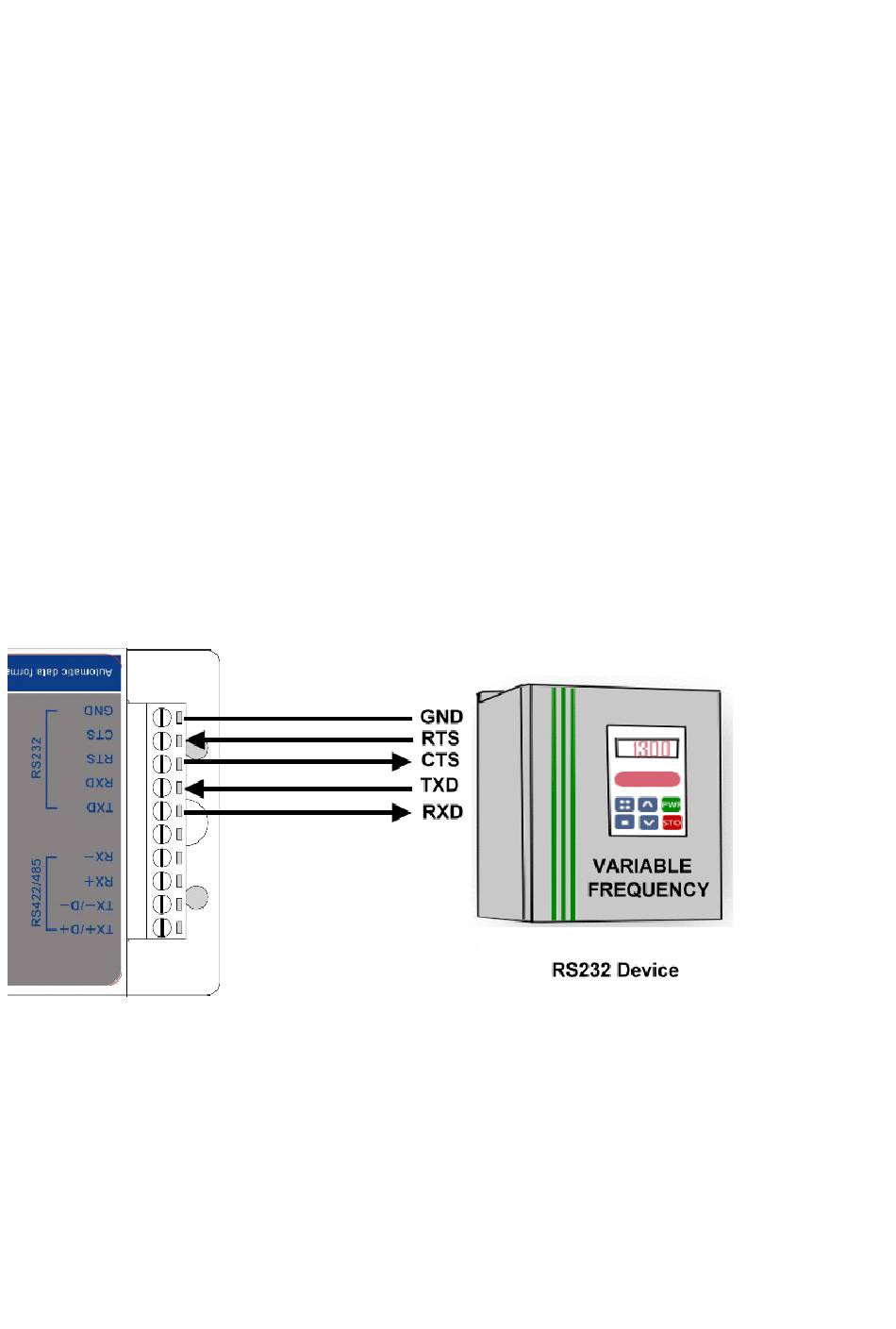

The RS232 supports 5 channels plus Signal Ground and is configured as DTE like a computer.
Signals are single ended and referred to Ground. To use handshaking or flow control user must
set Host PC's RTS/CTS during configuration. Refer to the pin assignment for connection as
below.
2-6. RS485 Wiring connection
The RS485 mode supports the Transmit and Receive channels using 2-wire half-duplex
operation. Refer to the pin assignment for connection as below.
