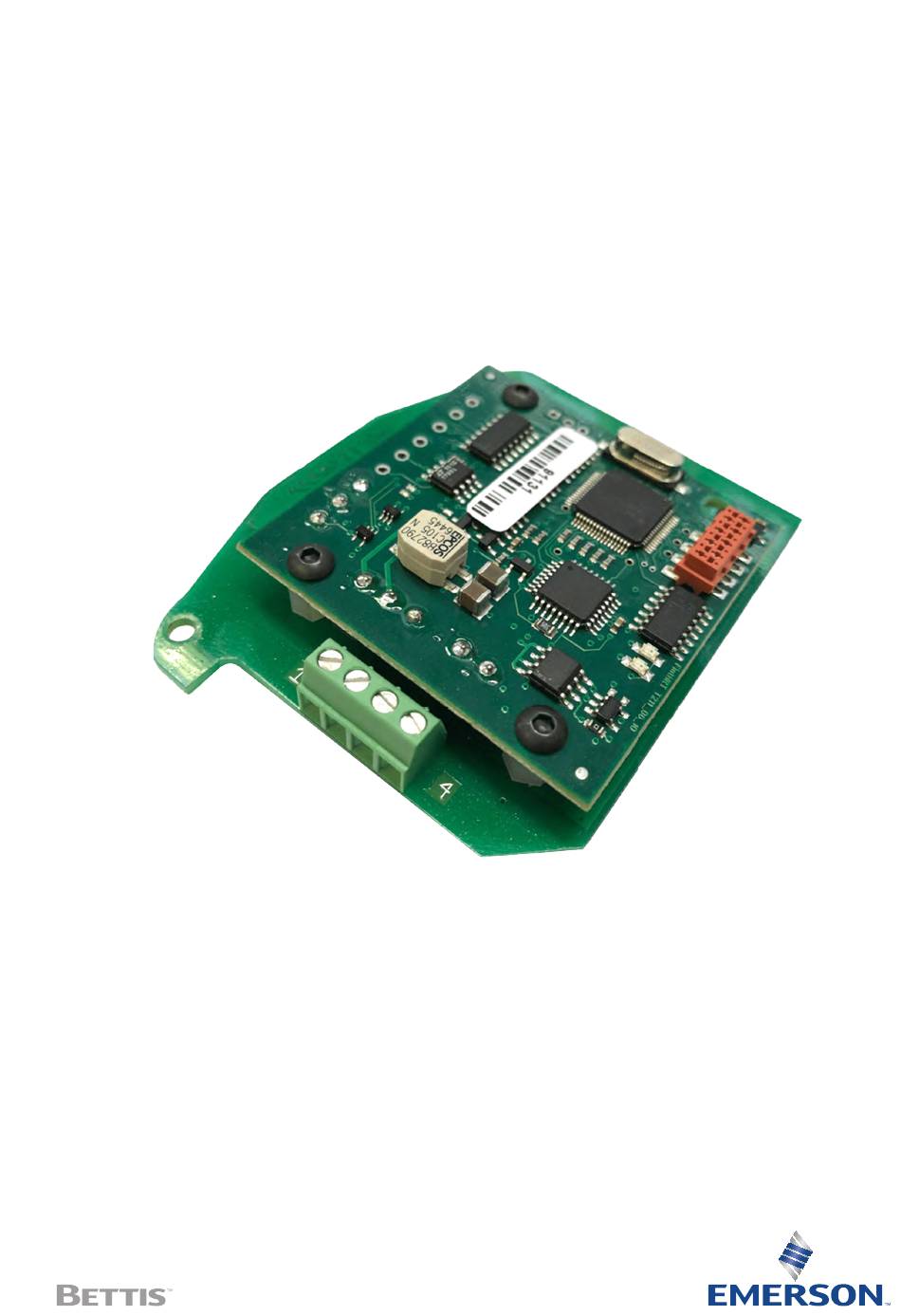

- Page 1 Installation, Operation and Maintenance Manual MAN-02-04-60-0740-EN Rev. 1 May 2024 Bettis RTS HART Upgrade Kit - Conversion Instructions...
- Page 2 Notes Installation, Operation and Maintenance Manual May 2024 MAN-02-04-60-0740-EN Rev. 1 This page is intentionally left blank.
-
Page 3: Table Of Contents
Installation, Operation and Maintenance Manual Table of Contents MAN-02-04-60-0740-EN Rev. 1 May 2024 Table of Contents Section 1: Parts Needed Parts Needed ........................1 Section 2: Conversion Instructions Conversion Instructions ....................2 Section 3: Programming and Activation Programming ......................7 Activation ........................ - Page 4 Notes Installation, Operation and Maintenance Manual May 2024 MAN-02-04-60-0740-EN Rev. 1 This page is intentionally left blank.
-
Page 5: Section 1: Parts Needed
Installation, Operation and Maintenance Manual Section 1: Parts Needed MAN-02-04-60-0740-EN Rev. 1 May 2024 Section 1: Parts Needed Figure 1. Table 1. Part Amount Description 14488 HART Circuit Board Phillips-Head Screw M3x16 9895 Plastic Phillips-Head Screw M3x16 9896 Distance Column 8 mm 7084 Plastic Hexagonal Nut M3 13992... -
Page 6: Section 2: Conversion Instructions

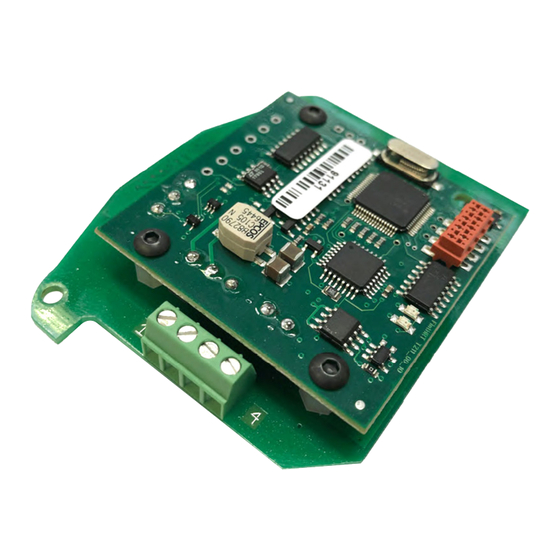

Section 2: Conversion Instructions Installation, Operation and Maintenance Manual May 2024 MAN-02-04-60-0740-EN Rev. 1 Section 2: Conversion Instructions Figure 2. Insert both M3x16 Phillips-head screws (No. 2) and the 3x16 plastic Phillips-head screw (No. 3) into the bores of the Logic II board (No. 6) as shown in Figure 2. - Page 7 Installation, Operation and Maintenance Manual Section 2: Conversion Instructions MAN-02-04-60-0740-EN Rev. 1 May 2024 Figure 3. Now, insert the distance columns (No. 4) onto the three screws and put the HART circuit board (No. 1) on the distance columns. Please make sure that the HART circuit board is properly connected to the Logic II board via the plug connector marked in red on Figure 3.
- Page 8 Section 2: Conversion Instructions Installation, Operation and Maintenance Manual May 2024 MAN-02-04-60-0740-EN Rev. 1 Figure 5. Connect the Adapter (No. 8) to the 8-pole Micro-Fit plug of the actuator. Figure 6. Connect the cables of the adapter to the HART circuit board as shown in Figure 6.
- Page 9 Installation, Operation and Maintenance Manual Section 2: Conversion Instructions MAN-02-04-60-0740-EN Rev. 1 May 2024 Figure 7. Plug in the Micro-Fit connector to the 8-pole connector of the Logic II circuit board. Figure 8. Plug in the remaining cables as before the conversion to the logic circuit board as shown in Figure 8.
- Page 10 Section 2: Conversion Instructions Installation, Operation and Maintenance Manual May 2024 MAN-02-04-60-0740-EN Rev. 1 Figure 9. Mount the Logic II circuit board in the actuator and fasten it with corresponding screws. Conversion Instructions...
-
Page 11: Section 3: Programming And Activation
Installation, Operation and Maintenance Manual Section 3: Programming and Activation MAN-02-04-60-0740-EN Rev. 1 May 2024 Section 3: Programming and Activation Programming For programming, request download of SmartTool2 through your Sales Representative. After the successful installation and registration, connect with the actuator. Use the Wizard and choose function “Extension Kit Install”... -
Page 12: Activation
HART bus. To upgrade an On/Off unit, two software smartcodes are required — “RTS-ER-SR” and “RTS-BSC”. A unit with already enabled modulating function will require only one smartcode “RTS-BSC”. Please contact Emerson order management team or sales representative to order software smartcodes. NOTE: By ordering smartcodes, it is necessary to provide a correlated RTS SN/KEY and a setup file to Emerson team to generate correct smartcodes. - Page 13 Installation, Operation and Maintenance Manual Section 3: Programming and Activation MAN-02-04-60-0740-EN Rev. 1 May 2024 Once correct smartcodes are provided by Emerson, they can be entered in an RTS actuator by one of the following methods. • Method 1: Using SmartTool Software —...
- Page 14 Section 3: Programming and Activation Installation, Operation and Maintenance Manual May 2024 MAN-02-04-60-0740-EN Rev. 1 • Method 2: Using RTS Display — If user does not have SmartTool to connect to RTS actuator, a smartcode can be entered through the local display. Please navigate to the menu parameter P20.2 Smartcode by using the right side (black color) knob to enter the key.
- Page 15 Installation, Operation and Maintenance Manual Notes MAN-02-04-60-0740-EN Rev. 1 May 2024 This page is intentionally left blank.
- Page 16 VCIOM-14722-EN © 2019, 2024 Emerson. All rights reserved. The Emerson logo is a trademark and service mark of Emerson Electric Co. Bettis™ is a mark of one of the Emerson family of companies. All other marks are property of their respective owners.
