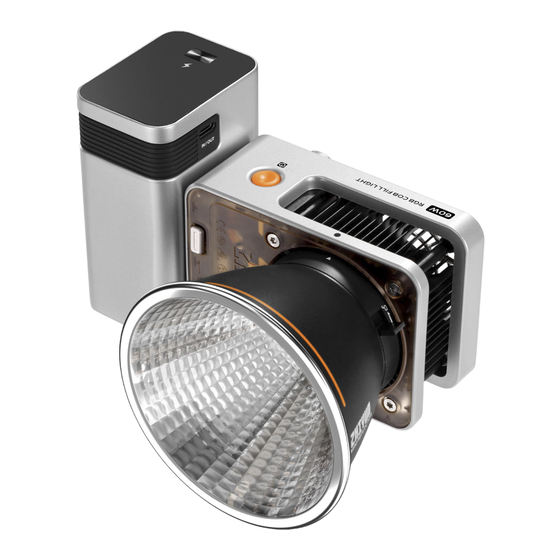

Zhiyun MOLUS X60 User Manual

Zhiyun MOLUS X60 User Manual

Cob light
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
The following features are available in
this PDF document.
Quick Keyword Search
Enter the keyword in the search box
and hit the search button
Quick Jump between
Chapters
Click the title of a specific chapter on
the Contents to jump to it
*Reading software such as Adobe Reader is
needed to support the functions above.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOLUS X60 and is the answer not in the manual?

Questions and answers

Related Manuals for Zhiyun MOLUS X60

Summary of Contents for Zhiyun MOLUS X60

  • Page 1 The following features are available in this PDF document. Quick Keyword Search Enter the keyword in the search box and hit the search button Quick Jump between Chapters Click the title of a specific chapter on the Contents to jump to it *Reading software such as Adobe Reader is needed to support the functions above.
  • Page 2 ZHIYUN MOLUS X60 COB Light User Guide...

  • Page 3: Table Of Contents

    Contents Brief■Introduction ■ Brief■Introduction■ ··················· 1 Product■List ■ Product■List■ ······················ 3 Get■to■Know■ZHIYUN■MOLUS■X60 ■ Get■to■Know■ZHIYUN■MOLUS■X60■ ············· 5 Power■Supply ■ Power■Supply■ ····················· 6 Installing■and■Removing■ZHIYUN■Mini■Reflector■ ■ (hereinafter■referred■to■as■"reflector"）■ Installing■the■Reflector■ ················· 8 Removing■the■Reflector■ ················· 8 Installing■the■Tripod ■ Installing■and■Removing■ZHIYUN■Mini■Softbox■ ■ (hereinafter■referred■to■as■"softbox"） Installing■the■Softbox■ ·················· 10 Removing■the■Softbox■ ················· 11 Installing■and■Removing■ZHIYUN■diffusion■dome■...
  • Page 4 Firmware■Upgrade ■ Contents Product■Specifications ■ Disclaimer■and■Warnings ■ Reading■Tips■ ····················· 21 Safe■Operation■Instructions■ ··············· 21 Warranty■Card ■ Warranty■Period■ ···················· 22 Warranty■Exclusions■ ·················· 22 Warranty■Claim■Procedure■················ 22 Contact■Card ■...

  • Page 5: Brief Introduction

    WARNING This product is not waterproof. Prevent contact with any kind of liquid with the ZHIYUN MOLUS X60. Never use the product in the rain or a humid environment. If water accidentally enters the device when using, please stop using it...
  • Page 6 Brief■Introduction Battery safety precautions: ① It is strictly prohibited to use batteries that are not provided by ZHIYUN. If you need to replace the battery, please contact ZHIYUN or designated agents. ZHIYUN will not be responsible for any battery accidents or equipment malfunctions caused by using batteries that are not officially provided by ZHIYUN.

  • Page 7: Product■List

    Before using this product, please check carefully that all the following items are included in the product package. In case that any item is found missing, please contact ZHIYUN or your local selling agent. Fill Light x1 DC Power Adapter x1...
  • Page 8 Grid x1** ZHIYUN Mini Softbox x1** Quick Start Guide x1 Items marked “*” are included in the ZHIYUN MOLUS X60 COMBO and PRO package. Items marked “**” are included in the ZHIYUN MOLUS X60 PRO package. The ZHIYUN MOLUS X60 PRO package includes two ZHIYUN MOLUS grip batteries.

  • Page 9: Get To Know Zhiyun Molus X60

    Get■to■Know■ZHIYUN■MOLUS■X60 Get to Know ZHIYUN MOLUS X60 Fan Shade Cooling Vent Mode Dial Power Button Adjust Dial Display Screen Accessory Mount Cooling Vent COB Chip 1/4’ ’ Screw Hole Microphone DC Power Supply Port Grip Battery Release USB-C Port Button...

  • Page 10: Power Supply

    Power■Supply Power Supply The battery is not included inside the device. For the ZHIYUN MOLUS X60 to work properly, please power the device using one of the following methods: ① Power via USB adapter: Use the USB Type-C charging cable to connect the USB adapter (not provided) and the USB-C power supply port of ZHIYUN MOLUS X60.
  • Page 11 ③ Power via ZHIYUN MOLUS Grip Battery: Remove the silicone case at the ZHIYUN MOLUS grip battery contact points, and install the ZHIYUN MOLUS grip battery to the ZHIYUN MOLUS X60 as shown in the image to power ZHIYUN MOLUS X60.

  • Page 12: Installing And Removing Zhiyun Mini Reflector

    Installing the Reflector Align the reflector mount with the ZHIYUN MOLUS X60 accessory mount. Install the reflector to the ZHIYUN MOLUS X60 and rotate the reflector as shown in the image until you hear a click sound. The reflector is then installed.

  • Page 13: Installing The Tripod

    Installing the Tripod Align the 1/4" screw of the tripod with the 1/4" threaded hole at the bottom of the ZHIYUN MOLUS X60. Drive the screw firmly to finish the installation. Tripod is not provided.

  • Page 14: Installing And Removing Zhiyun Mini Softbox

    Align the softbox mount with the ZHIYUN MOLUS X60 accessory mount, install the softbox to the ZHIYUN MOLUS X60 ① and rotate the softbox as shown in the image until you hear a click sound ② . Loosen the softbox straps ③ , push the axis to the right as shown in the image until the softbox expands and clicks into the mount ④...

  • Page 15: Removing The Softbox

    ② . Toggle the lock to another side ③ while rotating the softbox as shown in the image ④ . Remove the softbox from the ZHIYUN MOLUS X60 accessory mount ⑤ . Pack the softbox and tie the straps.

  • Page 16: Installing And Removing Zhiyun Diffusion Dome

    Installing and Removing ZHIYUN Diffusion Dome (hereinafter referred to as "diffusion dome"） Installing Diffusion Dome Install the reflector to ZHIYUN MOLUS X60. Expand the diffusion dome as shown in the image, and align the opening of the diffusion dome with the reflector.

  • Page 17: How To Use Zhiyun Molus X60

    How to Use ZHIYUN MOLUS X60 DO NOT stare at the chips when the device is operating. The IP rating of the outer case is IP20. Buttons and Dials Power Button: Long press the power button and turn the Adjust dial/ Mode dial Power on (grip battery powered).

  • Page 18: Operation Instruction

    How to Use ZHIYUN MOLUS X60 Operation Instruction 1. CCT Mode Settings Single press Mode dial to switch to CCT mode. Single press or turn the Adjust dial to adjust brightness. Turn the Mode dial to adjust color temperature. Brightness adjustment range: 0-100% Color temperature adjustment range: 2700K-6500K.
  • Page 19 How to Use ZHIYUN MOLUS X60 3. Music Mode Settings Single press Mode dial to switch to Music mode. Single press or turn the Adjust dial to adjust brightness. Turn the Mode dial to adjust color temperature. Brightness adjustment range: 0-100% Color temperature adjustment range: 2700K-6500K.

  • Page 20: Power-On Settings

    When the light is powered by a DC power adapter and the Live mode is on, if you use a long press at the power button to power off the ZHIYUN MOLUS X60, you need to also use a long press to power on the light when you plug the...
  • Page 21 Firmware■Upgrade You can use “Zhiyun Led Tools” or “ZY Vega” to perform the ZHIYUN MOLUS X60 firmware upgrade. Method 1: 1. Visit the official website of ZHIYUN (www.zhiyun-tech.com), go to the ZHIYUN MOLUS X60 product page, click "Download", find the Zhiyun Led Tools and the firmware and download.
  • Page 22 Firmware■Upgrade Method 2: The firmware of the ZHIYUN MOLUS X60 can be upgraded using the "ZY Vega" app. For more detailed instructions, please visit the ZHIYUN official website at www.zhiyun-tech.com and watch the related video tutorials for the ZHIYUN MOLUS X60.

  • Page 23: Product■Specifications

    Illuminance (maximum power, 2680(lux) Lab Data 1 without reflector) Illuminance (maximum power, 10500(lux) Lab Data 2 with reflector) ZHIYUN MOLUS Grip 2550mAh Battery Capacity ZHIYUN MOLUS Grip Battery Runtime 50min Lab Data 3 (maximum power) ZHIYUN MOLUS Grip 2H 30min...
  • Page 24 10500lux. The actual illuminance varies under different conditions. Lab Data 3: The data is collected in the following conditions 25℃ temperature, ZHIYUN MOLUS grip battery is fully-charged, and the color temperature is set at 6500K with 100% brightness. The battery runtime is 50 min. The actual grip battery runtime varies under different conditions: the longer the operating time,...

  • Page 25: Disclaimer■And■Warnings

    Guilin Zhishen Information Technology Co., Ltd (hereinafter referred to as "ZHIYUN") reserves all rights for final explanation of this instruction and other documents related to this product. The information is subject to update without notice.

  • Page 26: Warranty■Card

    1. Customers are entitled to replacement or free repair service in case of quality deficits found in the product within 15 days upon receipt of the product. 2. Customers are entitled to free repair service from ZHIYUN for any product proven defective in material or workmanship that results in product failure during normal consumer usage and conditions within the valid warranty period, which is 12 months counting from the date of selling.
  • Page 27 Warranty■Card Customer Information Customer Name: Phone Number: Address: Sales Information Sales date: Product Serial Number: Distributor Name: Distributor’ s Contact Number: First Maintenance Record Service Date: Repairman Signature: Cause of Problem: Service Result: □ Solved □ Unsolved □ Refunded/Replaced...

  • Page 28: Contact Card

    Contact Card Website Weibo Vimeo Google+ Facebook Facebook (Zhiyun Support) (Zhiyun Tech) Youku Youtube Wechat Instagram...
  • Page 29 E-mail: info@zhiyun-tech.com Address: 09 Huangtong Road, Tieshan Industrial Zone, Qixing District, Guilin, 541004, Guangxi, China For full product information, please visit ZHIYUN's official website: Content on www.zhiyun-tech.com is subject to update without notice. ZHIYUN ™ is a trademark of ZHISHEN All product names or brands referred to hereunder may be trademarks or registered trademarks of their respective holders.
