Summary of Contents for Zhiyun MOLUS G200
- Page 1 The following features are available in this PDF document. Quick Keyword Search Enter the keyword in the search box and hit the search button Quick Jump between Chapters Click the title of a specific chapter on the Contents to jump to it *Reading software such as Adobe Reader is needed to support the functions above.

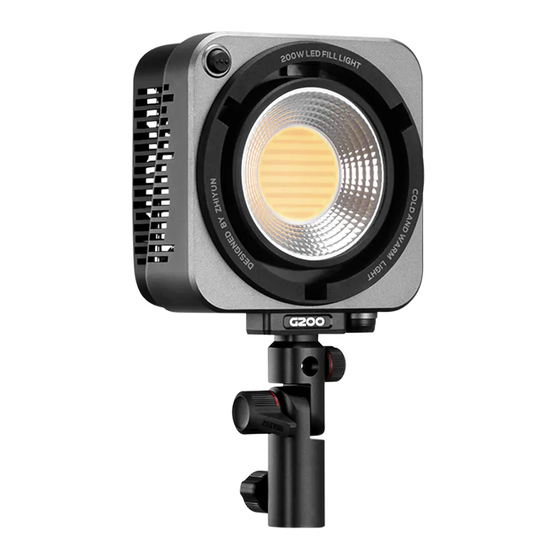

- Page 2 ZHIYUN MOLUS G200 Video Light User Guide...
-
Page 3: Table Of Contents
Contents Brief■Introduction ■ Brief■Introduction■ ··················· 1 Product■List ■ Product■List■ ······················ 3 Get■to■Know■ZHIYUN■MOLUS■G200 ■ Get■to■Know■ZHIYUN■MOLUS■G200■ ············ 4 Power■Supply ■ Power■Supply■ ····················· 5 Installing■Accessories ■ Installing/Detaching■the■Reflector■ ············ 6 Installing■a■Light■Stand■ ················· 7 Installing/Detaching■the■Umbrella■ ············ 8 How■to■Use■ZHIYUN■MOLUS■G200 ■ Button/Knob■Description■ ················ 9 Display■Screen■····················· 10 Operation■Instruction■·················· 10 Power-On■Setting■... - Page 4 Contents Warranty■Card ■ Warranty■Period■ ···················· 18 Warranty■Exclusions■ ·················· 18 Warranty■Claim■Procedure■················ 18 Contact■Card ■...
-
Page 5: Brief Introduction
WARNING This product is not waterproof. Prevent contact with any kind of liquid with the ZHIYUN MOLUS G200. Never use the product in the rain or a humid environment. If water accidentally enters the device when using, please stop using it... - Page 6 7. Before storing this product, please make sure it is completely cooled and store it in a dry and ventilated place. 8. Do not disassemble this product on your own. In the event of malfunctions, it should be repaired by ZHIYUN or authorized maintenance personnel.
-
Page 7: Product■List
Before using this product, please check carefully that all the following items are included in the product package. In case that any item is found missing, please contact ZHIYUN or your local selling agent. ZHIYUN MOLUS G200 x1 Controller x1... -
Page 8: Get To Know Zhiyun Molus G200
Get■to■Know■ZHIYUN■MOLUS■G200 Get to Know ZHIYUN MOLUS G200 Bowens Mount Lock Switch Bowens Mount Cooling Vent COB Chip Aviation Interface Umbrella Hole Umbrella Lock Light Support Fan Guard Cooling Vent Light Support Axle Latch Light Support Latch Aviation Plug Microphone Power Switch... -
Page 9: Power Supply
This product does not contain batteries. To ensure normal operation, please follow these steps: Use the controller cable to connect the controller to the ZHIYUN MOLUS G200, and then use an AC power cable to connect the controller to a power outlet to supply power to the G200. -
Page 10: Installing■Accessories
Installing: Align the mount of the standard reflector with the mount of the MOLUS G200, and install the standard reflector onto the light body ① . Press the standard reflector slightly into the mount of the light body, and rotate the standard reflector counterclockwise until it is locked in place and cannot be rotated ②... -
Page 11: Installing A Light Stand
Installing■Accessories Installing a Light Stand Align the end of the light support with the 1/4 screw at the top of the light stand ① . Then, install the G200 onto the light stand and tighten the light support latch ② . Loosen the light support axle latch ③ and adjust the angle of the light body as you wish ④... -
Page 12: Installing/Detaching The Umbrella
Installing■Accessories Installing/Detaching the Umbrella Insert the handle of the umbrella into the umbrella hole on the light support, and then tighten the umbrella lock clockwise. To detach the umbrella, rotate the umbrella lock counterclockwise and pull out the handle of the umbrella. ②... -
Page 13: How■To■Use■Zhiyun■Molus■G200
The protection level of the MOLUS G200 outer case is IP20. ① During the use of the MOLUS G200, when the temperature rises to a certain degree, the fan will automatically turn on to achieve the purpose of heat dissipation for the light. -
Page 14: Display Screen
Temperature Operation Instruction 1. Brightness/Color Temperature Adjustment Turn on the MOLUS G200, press the brightness/color temperature adjustment knob once to quickly set the brightness/color temperature value. Rotate the brightness/color temperature adjustment knob to finely adjust the brightness/ color temperature value. Please set the appropriate brightness/color temperature value according to your actual scenario. - Page 15 How■to■Use■ZHIYUN■MOLUS■G200 2. MAX Mode Turn on the MOLUS G200, press and hold the brightness adjustment knob and the color temperature adjustment knob at the same time to enter MAX mode. At this time, the G200 outputs maximum power. Press the brightness/color temperature adjustment knob to quickly set the brightness/color temperature value under MAX mode.
-
Page 16: Power-On Setting
How■to■Use■ZHIYUN■MOLUS■G200 3. Music Mode Turn on the MOLUS G200, and long press the color temperature adjustment knob to activate music mode. Adjust the color temperature and brightness to suitable values according to your setting. At this time, the G200 will change its lighting effects in real-time based on the rhythm of the music. -
Page 17: Firmware■Upgrade
Firmware■Upgrade The firmware of the MOLUS G200 can be upgraded using the "ZY Vega" app. For more detailed instructions, please visit the ZHIYUN official website at www.zhiyun-tech.com and watch the related video tutorials for the MOLUS G200. -
Page 18: Product■Specifications
Product■Specifications Product Model： PL109 Max. Input Power 350W Max. Output Power 320W Color Temperature 2700K-6500K Range Brightness Adjustment 0-100% Range CRI ≥ 95 CRI/TLCI TLCI ≥ 97 TM-30 Rf (on average) TM-30 Rg (on average) ≥ 94 Power Supply Standard 100~240V AC 50~60Hz 5~2A Illuminance (CCT mode, maximum power,... - Page 19 4300K with 100% brightness. The illuminance is 85800 lux. The actual illuminance varies under different conditions. Any data mentioned in this user guide is the result of internal testing at ZHIYUN Lab. Under different objective conditions, there may be varying degrees of error...
-
Page 20: Disclaimer■And■Warnings
Guilin Zhishen Information Technology Co., Ltd (hereinafter referred to as "ZHIYUN") reserves all rights for final explanation of this instruction and other documents related to this product. The information is subject to update without notice. -
Page 21: Safe Operation Instructions
DO NOT use with incompatible components or in any way otherwise as mentioned or instructed in the product documents provided by ZHIYUN. The safety guidelines herein contain instructions for safety, operation and maintenance. - Page 22 1. Customers are entitled to replacement or free repair service in case of quality deficits found in the product within 15 days upon receipt of the product. 2. Customers are entitled to free repair service from ZHIYUN for any product proven defective in material or workmanship that results in product failure during normal consumer usage and conditions within the valid warranty period, which is 12 months counting from the date of selling.
- Page 23 Warranty■Card Customer Information Customer Name: Phone Number: Address: Sales Information Sales date: Product Serial Number: Distributor Name: Distributor’ s Contact Number: First Maintenance Record Service Date: Repairman Signature: Cause of Problem: Service Result: □ Solved □ Unsolved □ Refunded/Replaced...
- Page 24 Contact Card Website Weibo Vimeo Google+ Facebook Facebook (Zhiyun Support) (Zhiyun Tech) Youku Youtube Wechat Instagram...
- Page 25 E-mail: info@zhiyun-tech.com Address: 09 Huangtong Road, Tieshan Industrial Zone, Qixing District, Guilin, 541004, Guangxi, China For full product information, please visit ZHIYUN's official website: Content on www.zhiyun-tech.com is subject to update without notice. ZHIYUN ™ is a trademark of ZHISHEN All product names or brands referred to hereunder may be trademarks or registered trademarks of their respective holders.
