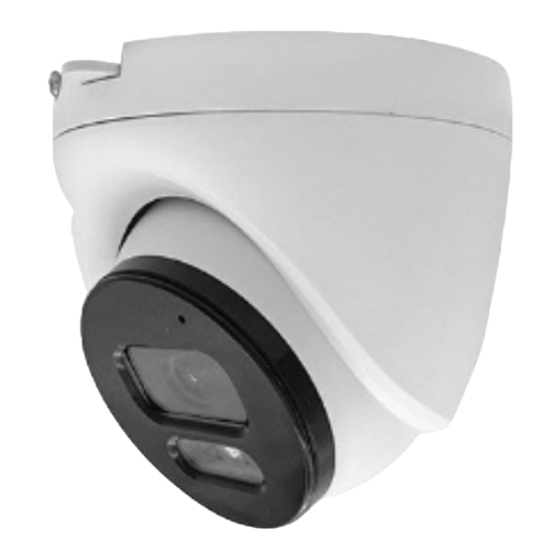

Avtech DGM5203GCAT Installation

CAMERA INSTALLATION
Step1: Remove the screw on the camera (
Step2: Find the release tab (PUSH) as indicated below. Gently push it down and
pull it out to separate the base plate from the camera (
Step3: Locate the base plate to which you would like to install the camera and
place the cable through the plate; make sure the cable is arranged properly.
Then, fasten the base plate to the wall (or ceiling).
Step4: Attach the camera to the plate as indicated below (
camera down to click it to the base plate (
Step5: Rotate the camera and the lens to target the area you want. Then, replace
the screw back you removed in Step1.
Package Content

Camera Quick Guide

FIXED TYPE
Screws &
wall plugs
).
 ).
 ), and gently push the
 ).
Waterproof
plug kit
