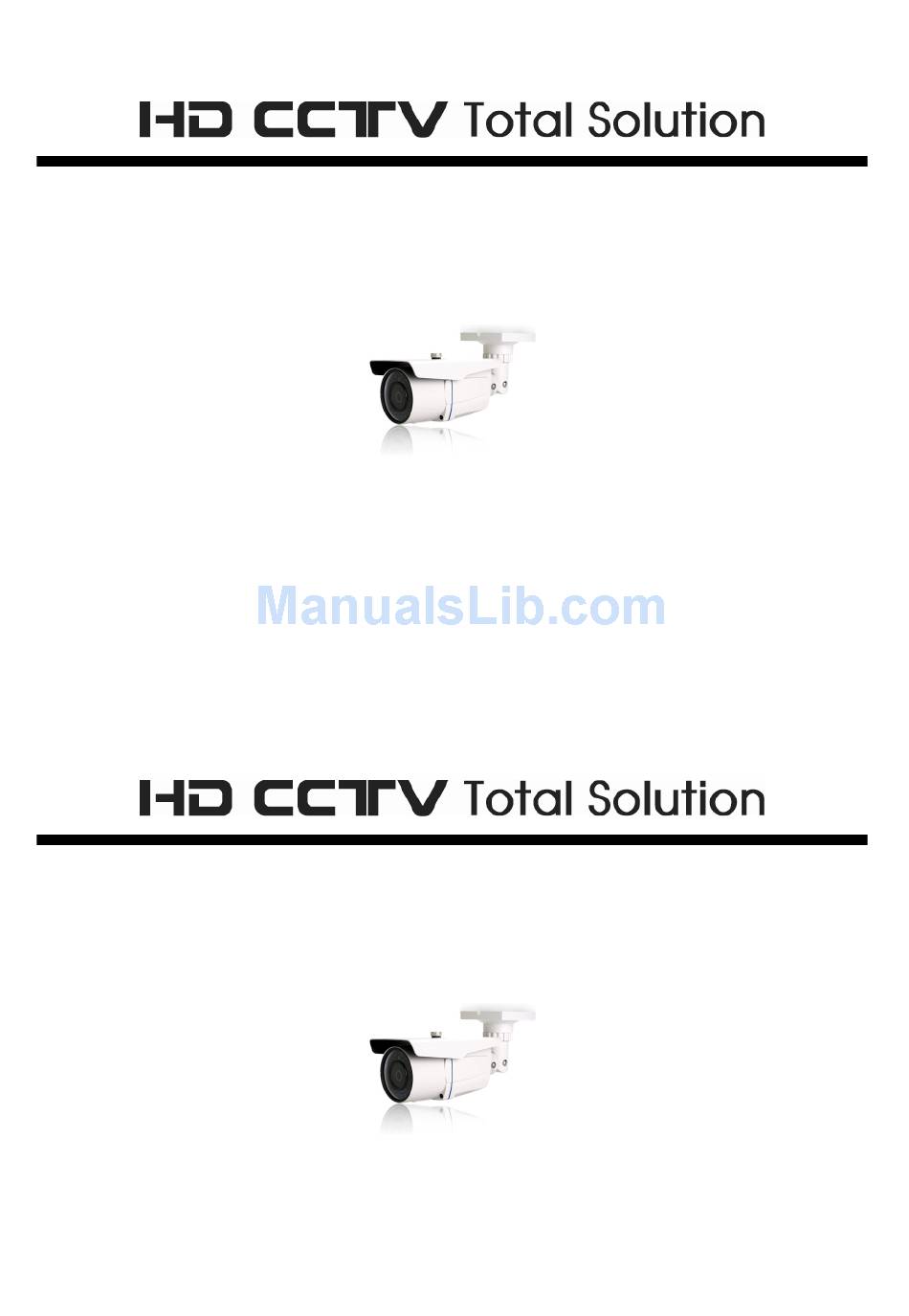

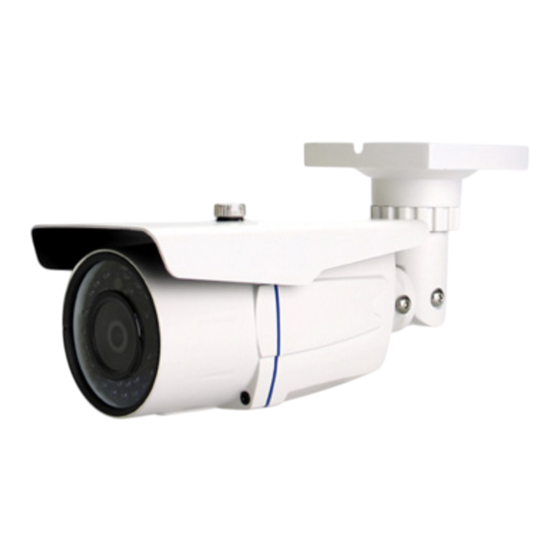

IR Bullet Camera User Manual
The product image shown above may differ from the actual product.
Please use this camera with a DVR which supports HD video recording.
Please read the instructions thoroughly before using the product.
IR Bullet Camera User Manual
The product image shown above may differ from the actual product.
Please use this camera with a DVR which supports HD video recording.
Please read the instructions thoroughly before using the product.
698Z
d108x_V1.1
698Z
d108x_V1.1
Advertisement
Related Manuals for Avtech DG108X
Summary of Contents for Avtech DG108X
- Page 1 698Z IR Bullet Camera User Manual The product image shown above may differ from the actual product. Please use this camera with a DVR which supports HD video recording. Please read the instructions thoroughly before using the product. d108x_V1.1 698Z IR Bullet Camera User Manual The product image shown above may differ from the actual product.
- Page 3 IMPORTANT SAFEGUARD CAUTION RISK OF ELECTRIC SHOCK CAUTION: To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label. The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of such damages. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...
-
Page 5: Table Of Contents
TABLE OF CONTENTS FEATURES PACKAGE CONTENT DIMENSIONS* SPECIFICATIONS* INSTALLATION CONNECTION CAMERA PARAMETERS TABLE OF CONTENTS FEATURES PACKAGE CONTENT DIMENSIONS* SPECIFICATIONS* INSTALLATION CONNECTION CAMERA PARAMETERS... -
Page 7: Features
FEATURES 1. 1/ 2.9” CMOS Sensor with 1080P video output 2. IR effective distance up to 20 meters for day and night surveillance 3. IP66 for weather-proof application PACKAGE CONTENT IR camera * 1 User manual * 1 Installation sticker * 1 ... -
Page 8: Dimensions
DIMENSIONS* *Dimensional Tolerance: ± 5mm DIMENSIONS* *Dimensional Tolerance: ± 5mm... -
Page 9: Specifications
SPECIFICATIONS* Pick-up Element 1/ 2.9” CMOS image sensor Number of Pixels 1936(H) × 1096(V) Video Frame Rate 1080P@30fps / 1080P@25fps Min. Illumination 0.1 Lux / F1.8, 0 Lux (IR LED ON) S/N Ratio More than 48dB (AGC OFF) Shutter Speed 1/30 (1/25) sec ~ 1/33750 (1/28125) sec Lens f3.6mm / F1.8... -
Page 10: Installation
INSTALLATION Step1: Loosen the screw as indicated below to move down the camera lens. Then, locate where to install this camera, and fasten the camera to the ceiling or wall. Step2: Adjust the viewing angle of the camera as indicated below. INSTALLATION Step1: Loosen the screw as indicated below to move down the camera lens. - Page 11 Step3: Slide the sun shield to the camera, and fasten it with the supplied screw. Step4: Power on the camera. Step3: Slide the sun shield to the camera, and fasten it with the supplied screw. Step4: Power on the camera.
-
Page 12: Connection
CONNECTION 1. DC12V Input Terminal Connect the power terminal of the camera to a DC 12V regulated power supply. Note: Please use the correct power adaptor, DC12V (regulated), to operate this unit. The power tolerance of this unit is DC12V ± 10%. Over maximum DC 12V power input will damage this unit. -
Page 13: Camera Parameters
CAMERA PARAMETERS This camera series has its own configuration menu, and either of the two methods below is available to access the menu based on the camera model you have. Note: The methods below are available only when the camera is used with our brand’s HD CCTV DVR. - Page 14 ADVANCED CONFIG CAMERA DETECTION MENU SETUP ALERT NETWORK DISPLAY RECORD DEVICES DCCS DEVICE XXXXX NOTIFY CONNECTION When the camera menu is entered, you’ll see the keys on the bottom right corner to move between and change those configurations. Move between selections. ...
- Page 15 MENU DESCRIPTION EXPOSURE LENS TYPE No function. SHUTTER AUTO Automatically adjust the shutter speed for exposure based on the current environment. 1/100 Manually choose the shutter speed you need for exposure. 1/200 1/250 1/500 1/1000 1/2000 1/4000 1/10000 MENU DESCRIPTION EXPOSURE LENS TYPE No function.
- Page 16 MENU DESCRIPTION EXPOSURE AGC OFF / LOW / Set the level of Auto Gain Control to detect and MIDDLE / enhance the image signals when the light HIGH condition is poor. The higher the value, the stronger the signals will be enhanced, and the more noise the image will get.
- Page 17 MENU DESCRIPTION Use the external light sensor we added in the DAY & MODE camera to detect the surrounding light NIGHT condition and switch to color or B/W mode. If you’re not satisfying with the mode switch time, move down to D N LEVEL / N D LEVEL to manually adjust the sensitivity.
- Page 18 MENU DESCRIPTION IMAGE SET COLOR 1 ~ 256 Set the level of color saturation. GAIN The more the value, the more saturated the color will be, but the more noise the image will get. SHARPNESS 1 ~ 256 Set the level of sharpness to enhance the clarity of image detail by adjusting the aperture and sharpening the edges.
- Page 19 MENU DESCRIPTION IMAGE SET LANGUAGE ENGLISH / Select the language of the menu: English / Simplified Chinese. 中文(簡) Select ON to enable motion detection or OFF FUNC. SET MOTION SCREEN DETECTON* ALARM to disable this function. No function. OUTPUT SECTION Select the area for motion detection.
- Page 20 MENU DESCRIPTION FUNC. SET PRIVACY HEIGHT / Set the area to mask. WIDTH / LEFT / RIGHT / TOP / BOTTOM SYSTEM Select the color for this OSD display. SETUP COLOR OSD BG Select the background color for this OSD display.
-
Page 21: Faq
Q: The image quality at night is not good. I can see some red dots at the edge of the image. What should I do? A: Please go to the camera’s parameter setting page as described in the section of “CAMERA PARAMETERS”, and select EXPOSURE ->...
