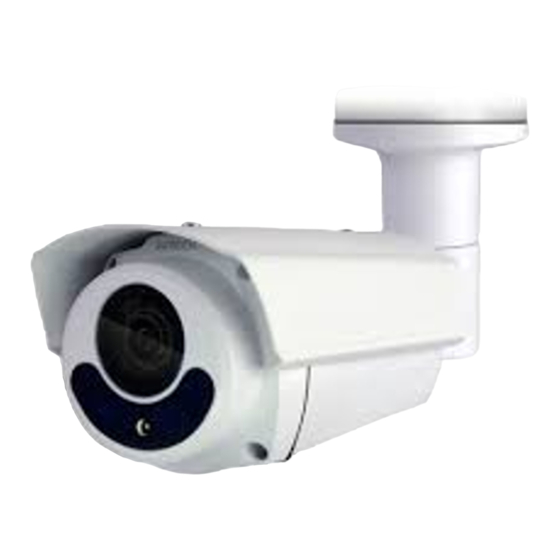

Hd cctv 5mp ir bullet camera
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

5MP IR Bullet Camera User Manual
Please use this camera with a DVR which supports HD video recording.
Please read the instructions thoroughly before using the product.
C
A
U
T
I
O
N
:
C
A
U
T
I
O
N
:
To reduce the risk of electric shock, do not expose this apparatus to rain or moisture.
Only operate this apparatus from the type of power source indicated on the label.
The company shall not be liable for any damages arising out of any improper use, even if we have been advised of the possibility of
such damages.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence
of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
This exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
ROHS Announcement
All lead-free products offered by the company comply with the requirements of the European law on the Restriction
of Hazardous Substances (RoHS) directive, which means our manufacture processes and products are strictly
"lead-free" and without the hazardous substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the product must be collected
separately at the product end-of-life. This applies to your product and any peripherals marked with this symbol. Do
not dispose of these products as unsorted municipal waste.
CE Mark
This apparatus is manufactured to comply with the radio interference.
The company does not warrant that this manual will be uninterrupted or error-free. We reserve the right to revise or
remove any content in this manual at any time.
C
A
U
T
I
O
N
C
A
U
T
I
O
N
R
R
I
I
S
S
K
K
O
O
F
F
E
E
L
L
E
E
C
C
T
T
R
R
I
I
C
C
S
S
H
H
O
O
C
C
K
K
890Z
d5105_5645_V0.9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DGC5645 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avtech DGC5645

Summary of Contents for Avtech DGC5645

  • Page 1 890Z 5MP IR Bullet Camera User Manual Please use this camera with a DVR which supports HD video recording. Please read the instructions thoroughly before using the product. To reduce the risk of electric shock, do not expose this apparatus to rain or moisture. Only operate this apparatus from the type of power source indicated on the label.

  • Page 2: Package Content

    FEATURES 1. 1/2.5” CMOS Sensor with up to 5MP video output 2. Low light sensitivity 3. Quadbrid video output with TVI, CVI, AHD & CVBS 4. DWDR to increase image recognizability in overexposure and dark areas 5. Day and night 24-hour surveillance with IR effective distance up to 50 meters 6.

  • Page 3: Installation

    DIMENSIONS*  Model 1  Model 2 *Dimensional Tolerance: ± 5mm INSTALLATION  Model 1 Step1: Find the wrench supplied in the sales package, and loosen the screw as indicated below to loosen the joint lock of the bracket. Note: for lock, and for unlock.
  • Page 4  Model 2 Step 1: Loosen the screw as indicated below to move down the camera lens. Then, fasten the camera to the ceiling or wall where you want to install. 1. loosen a bit 2. Move down a bit Step 2: Adjust the viewing angle of the camera as indicated below.
  • Page 5 FOCAL LENGTH & FOCUS ADJUSTMENT This function is available for Model 2 only. Note: The access path is taking our HD CCTV recorder as an example. If you’re using other brand’s recorder, please refer to its own user manual to know how to access the camera parameters. Based on the recorder type you have, on the live view: Type 1 Click twice on the channel that this camera is connected to show in full screen, and click on...

  • Page 6: Camera Parameters

    CAMERA PARAMETERS This camera series has its own configuration menu. Note: The camera can’t be accessed to change configurations when the video mode is switched to CVBS. Note: The access path is taking our HD CCTV recorder as an example. If you’re using other brand’s recorder, please refer to its own user manual to know how to access the camera parameters.
  • Page 7 MENU REMARK FORMAT Choose the video resolution and IPS of this camera in different video output mode. VIDEO MODE TVI / AHD / CVI / CVBS MAIN-MENU BRIGHTNESS 1 ~ 10 EXPOSURE MODE GLOBAL Manually adjust the level of BLC from 0 ~ 8.
