Connect and install

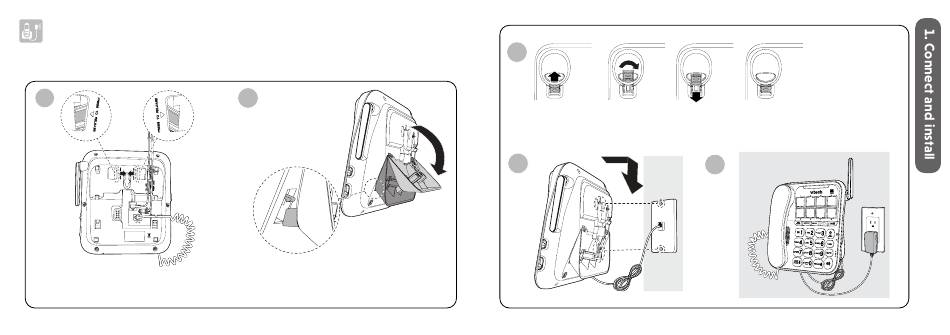

Mount the telephone base (optional)

1
Press the tabs of the wall-mount bracket to
release it from the tabletop orientation.
2
Rotate the wall-mount bracket down and
push it into the telephone base until it
clicks into place.
6
3
Slide the handset Rotate it Slide the handset tab back
tab upward.
upside down. into the slot.
4
The protruding edge
of the handset tab
holds the corded
handset in place
when the telephone is
mounted on the wall.
5
7
