SHOWER
BEFORE YOU BEGIN:
!
IMPORTANT
A) SHOWER TRAY & ENGLEFIELD DURACRYL WALL/TILED WALL INSTALLATION OPTIONS
The tray should be installed in accordance with one of the following recommended methods:
Fig. 1 - Wet Area Wall Board & Englefield Duracryl® Wall
!
IMPORTANT
Install Duracryl Shower Wall
as per installation instructions
supplied with the wall.
TH (Tray height):
Low Profile - 110mm
1236457-A02-F
QUICK-FIT® SHOWER TRAY
Low Profile Tray
70mm Sill height
NOTE: Building requirements can vary, local regulations must be checked
prior to installation.
NOTE: Drawings in this document are not to scale.
TH
September 2023
WET AREA WALL BOARD (9-10mm)
®
SIKA SHOWERBOND ADHESIVE
DURACRYL WALL
SIKASIL NG SILICONE SEALANT
Page 1
®
englefield.co.nz
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kohler Englefield QUICK-FIT
Summary of Contents for Kohler Englefield QUICK-FIT

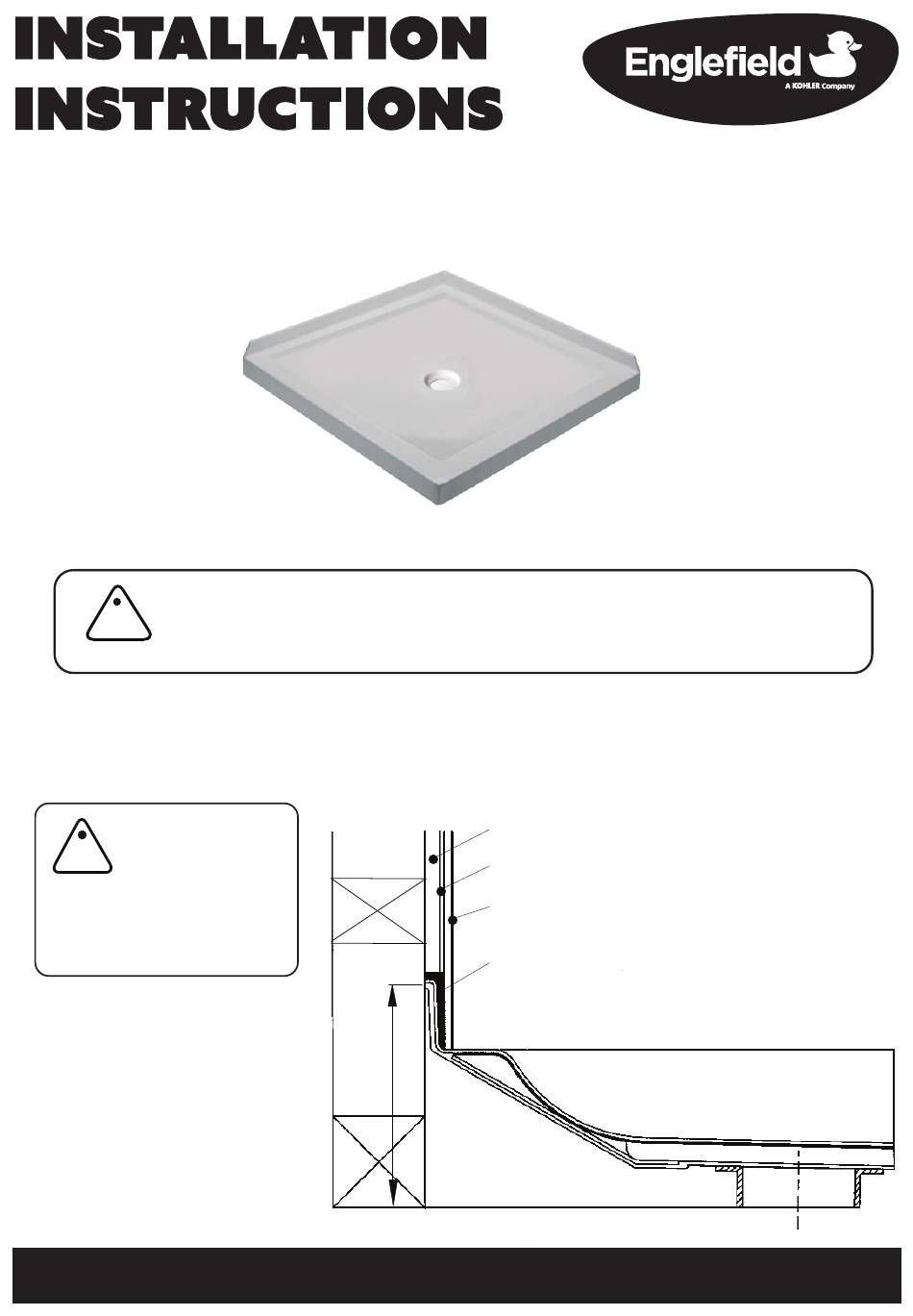

- Page 1 SHOWER QUICK-FIT® SHOWER TRAY Low Profile Tray 70mm Sill height BEFORE YOU BEGIN: NOTE: Building requirements can vary, local regulations must be checked prior to installation. NOTE: Drawings in this document are not to scale. IMPORTANT A) SHOWER TRAY & ENGLEFIELD DURACRYL WALL/TILED WALL INSTALLATION OPTIONS The tray should be installed in accordance with one of the following recommended methods: Fig.
- Page 2 QUICK-FIT® SHOWER TRAY INSTALLATION INSTRUCTIONS Wall retainer extrusions or door must be installed prior to tiling. IMPORTANT Please refer to installation instructions provided with shower door. Fig. 2 - Wet Area Wall Board & Tiles - Method 1 WET AREA WALL BOARD (9-10 mm) GROUT TILES TILE ADHESIVE...
- Page 3 INSTALLATION INSTRUCTIONS QUICK-FIT® SHOWER TRAY B) FLOOR CONSTRUCTION TIMBER When installed on a timber floor, the floor board should be supported at not greater than 500mm centres and the cut-out waste connection kept to a minimum. CONCRETE When installed on a concrete slab floor, chases or channels left for plumbing must be completely backfilled.
- Page 4 Install shower waste. Follow instructions supplied with the waste INSTALLATION - ENGLEFIELD DURACRYL® WALL Install wall if applicable. Follow instructions supplied with the wall. CONTACT AND WARRANTY INFORMATION NEW ZEALAND AUSTRALIA Kohler New Zealand Limited 0800 100 382 info@englefield.co.nz englefield.com englefield.co.nz 1236457-A02-F September 2023 englefield.co.nz...
