Summary of Contents for Kohler Englefield VALENCIA ELITE

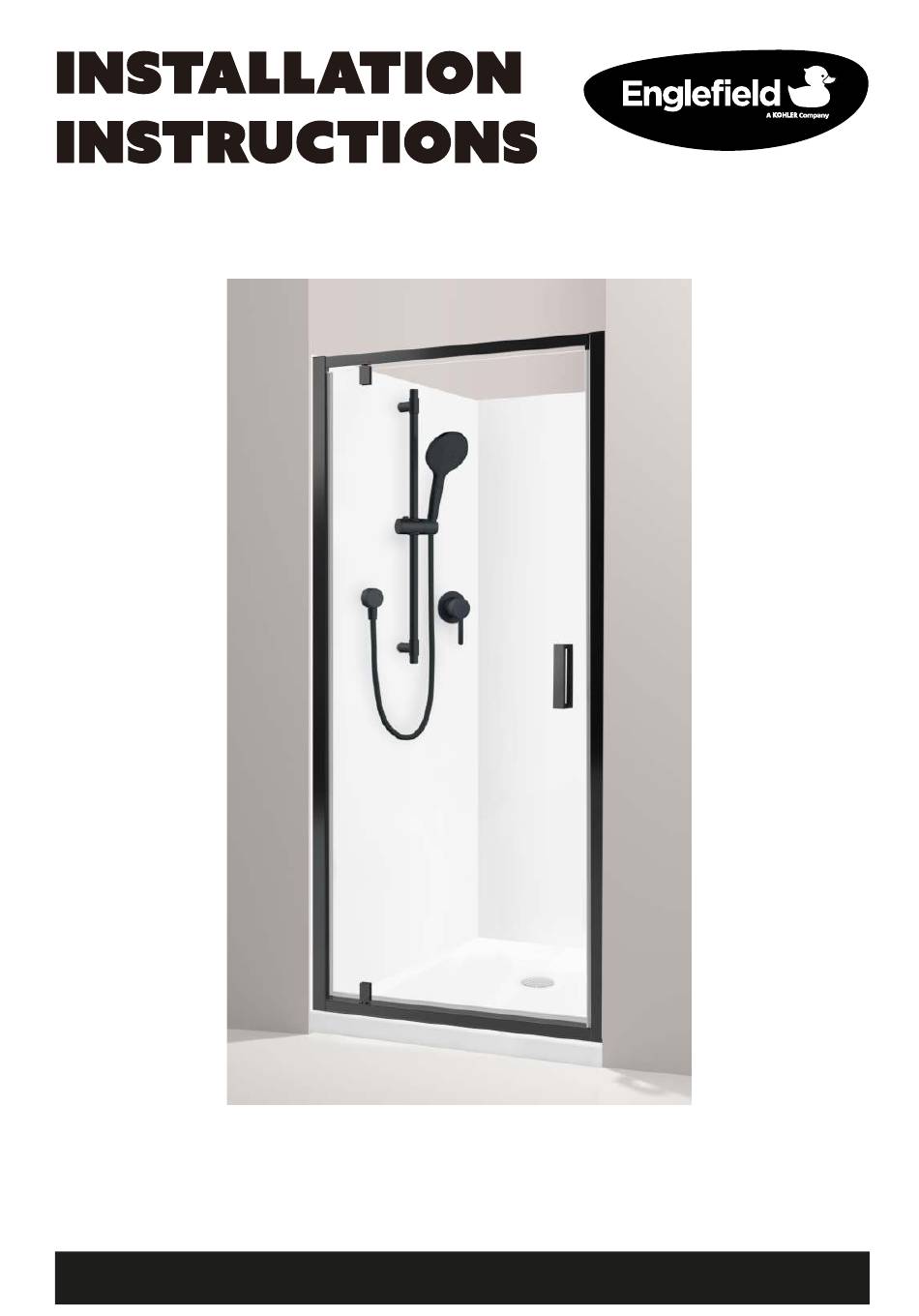

- Page 1 SHOWER VALENCIA ELITE Alcove Pivot Door Note: Tapware and accessories not included. englefield.co.nz 1366031-A02-H October 2023...
-
Page 2: Before You Begin
VALENCIA ELITE Alcove Pivot Door INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Before installing the shower please read these instructions carefully to familiarise yourself with the required tools, materials and installation sequences. Please leave these instructions for the consumer after installation. Refer to the separate care and maintenance guide for important care and cleaning information. -
Page 3: Tools And Materials Required
Alcove Pivot Door VALENCIA ELITE INSTALLATION INSTRUCTIONS TOOLS AND MATERIALS REQUIRED Square Drive 3.0 mm PARTS IDENTIFICATION 2 x Corner Covers 1 x Handle Kit 2 x Wall Channels 1 x Seal Pack 1 x Handle Assembly ... -
Page 4: Construction Requirements
Alcove Pivot Door VALENCIA ELITE INSTALLATION INSTRUCTIONS CONSTRUCTION REQUIREMENTS Wall Framing ATTENTION Due to the weight of the glass panels Englefield strongly Double Double recommends fixing the wall studs studs retainers to double studs for all installation types (as shown). For acrylic tray with acrylic or tiled wall For tile floor and tile wall - Finished surfaces Size... -
Page 5: Installation Options
VALENCIA ELITE Alcove Pivot Door INSTALLATION INSTRUCTIONS INSTALLATION - Options OPTION 1 - Acrylic Wall & Tray Tray: For tray installation refer to the instructions supplied with the tray. Wall: For wall installation refer to the instructions supplied with the wall. - Proceed to Door Installation. -
Page 6: Installation
Alcove Pivot Door VALENCIA ELITE INSTALLATION INSTRUCTIONS INSTALLATION Caution: Ensure tray or tiled floor is level & walls are vertical & square. ± 0 mm Tip: Cover the waste to prevent the loss of small parts. If installing onto a tray protect the tray surface during installation. - Page 7 VALENCIA ELITE Alcove Pivot Door INSTALLATION INSTRUCTIONS ± 0 mm 3 mm 10 mm IMPORTANT! The handle side retainer must be fitted first. Position a wall channel on the “handle side” wall. The flange with pre-drilled holes should face inside the enclosure. Using a level, make sure that the channel is upright. Mark the position of fixing holes down the centre of the channel, then remove channel.
- Page 8 VALENCIA ELITE Alcove Pivot Door INSTALLATION INSTRUCTIONS Place the other wall channel on the opposing wall. Use a level to ensure that it is upright. Mark fixing hole positions down the inner flange of the channel, then remove the wall channel. Drill with a 3mm bit.
- Page 9 VALENCIA ELITE Alcove Pivot Door INSTALLATION INSTRUCTIONS (a) Slot the door assembly into the pre-installed (handle side) wall channel, and swing the entire door frame into position. Note! Be careful not to scratch the extrusions or smudge the silicone sealant during this process. Inside of enclosure (b) With the wall channel in position, insert the fixing screws...
- Page 10 VALENCIA ELITE Alcove Pivot Door INSTALLATION INSTRUCTIONS Centralise the door frame within the wall channels, making sure that the door frame is square. ± 0 mm Ø 3 mm From the inside of the enclosure, drill four holes in the door frame through the centre marked points on the wall channel with a 3mm HSS drill (not supplied).
- Page 11 Alcove Pivot Door VALENCIA ELITE INSTALLATION INSTRUCTIONS 750 DOORS 900 DOORS 1000 DOORS [for 1200 doors see page 11] flap facing into shower Vertical Door Seal Door Seal Door Seal Install the door seals and magnetic strip onto the door. Install the door handle, ensuring that the grub screws are on the underside.
- Page 12 VALENCIA ELITE Alcove Pivot Door INSTALLATION INSTRUCTIONS 1200 DOORS [for 750,900,1000 doors see page 10] fixed panel Vertical Seal Magnetic Strip Door Seal Door Seal Install the vertical seal onto the fixed panel. Install the door seals and magnetic strip onto the door panel. Install the door handle, ensuring that the grub screws are on the underside.
- Page 13 VALENCIA ELITE Alcove Pivot Door INSTALLATION INSTRUCTIONS Entire Entire length length 200mm up 200mm up Entire length wall board finishing wall retainer strip silicone or liner channel adhesive silicone Fit the caps to the top of the extrusions. Add silicone or modify caps to fit if required. Apply sealant along the outside surfaces of the enclosure.
-
Page 14: Spare Parts
VALENCIA ELITE Alcove Pivot Door INSTALLATION INSTRUCTIONS SPARE PARTS Wall Finishing Strip 1315530-** Scan the QR barcode on the packaging Wall Retainer or underside of top caps to identify 1278347-** product SKU and date of manufacture. Retainer Cover Clip 1278349 Retainer Cover 1278348-** Pivot Hinge... -
Page 15: Cleaning And Maintenance Instructions
VALENCIA ELITE Alcove Pivot Door INSTALLATION INSTRUCTIONS CLEANING AND MAINTENANCE INSTRUCTIONS Please refer to our website for cleaning instructions. CONTACT AND WARRANTY INFORMATION NEW ZEALAND AUSTRALIA Kohler New Zealand Limited 0800 100 382 info@englefield.co.nz englefield.com englefield.co.nz englefield.co.nz 1366031-A02-H October 2023...
