BEFORE YOU BEGIN
BEFORE YOU BEGIN
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information-
consumer.
·
E SERIES cabinet adopts E0 grade wood-based panel of
high quality, and with further processing, its harmful
emissions will be less than 0.5mg/L.
·
Turn off the water supply.
·
The pluming installation must comply with Water Supply
Regulations/Bye-laws, Building Regulations or any
particular regulations and practices, specified by the local
water company or water undertakers. The installation
should be carried out by a plumber.
·
Before installation carefully inspect the new fixture for any
signs of damage.
·
This product complies with GB 24977-2010.
·
Before installation, make sure to reserve the upper and
lower water holes on the wall and floor. Refer to the image
2 below.
ORDERING INFORMATION
This installation covers the following products in the E SERIES
range:
E SERIES Vanity W/ITB Drawer 940mm ..............K-34938T
E SERIES Vanity W/ITB DR Drawer 1245mm ......K-34941T
POPLIN Vanity Top 940mm.......................K-96016T-1/-4/-8
POPLIN Vanity Top 1245mm.....................K-96017T-1/-4/-8

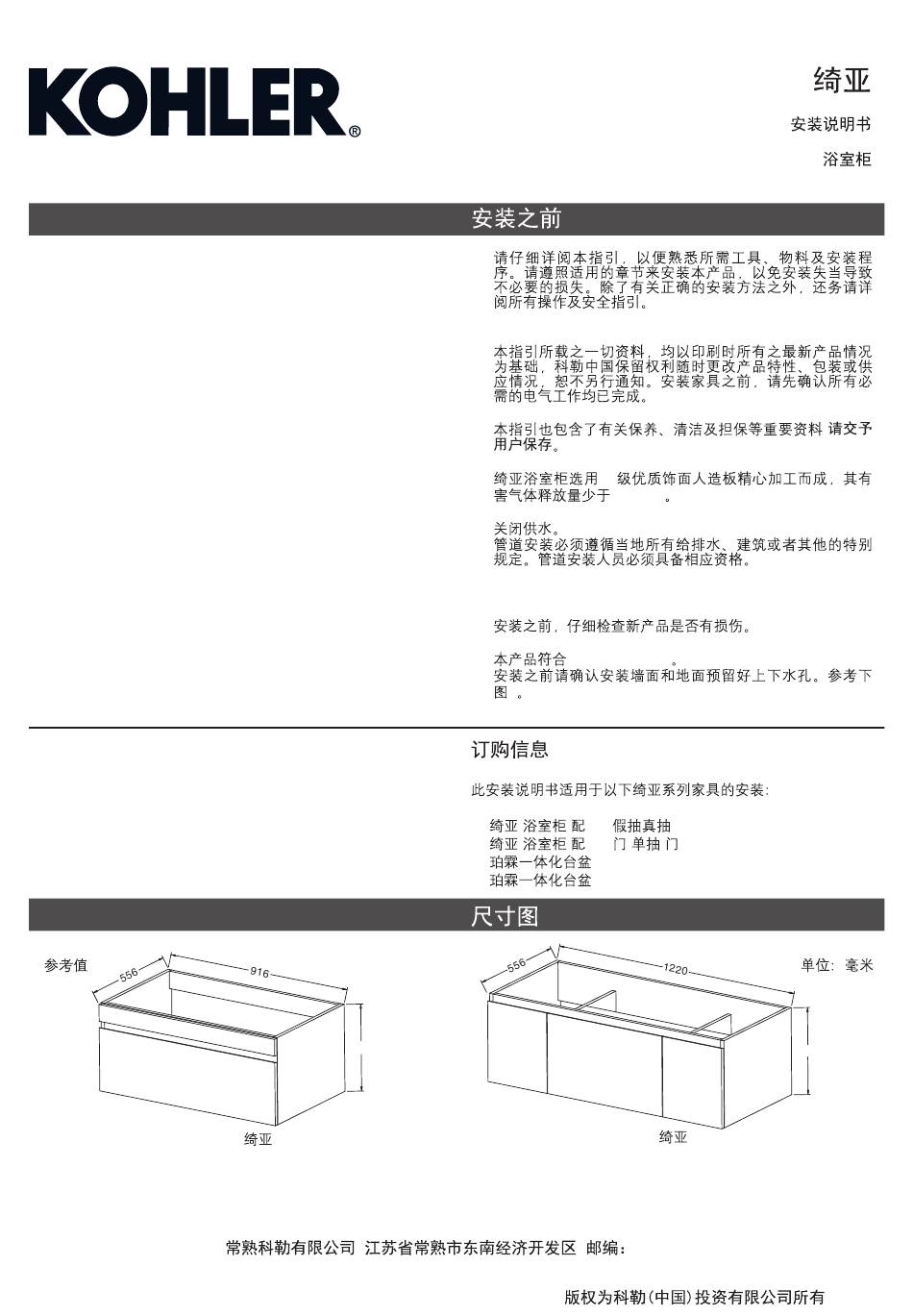

ROUGHING-IN
Reference
E SERIES
K-34938T 916*556*400mm
CHANGSHU KOHLER LTD.,
1586908-T2-A
please leave instructions for the
400
CHANGSHU, JIANGSU PROVINCE, CHINA
·
·
·
·
·
·
·
·
·
2
K-34941T 1220*556*400mm
SOUTHEAST ECONOMIC DEVELOPMENT ZONE,
POST CODE 215500
©
Copyright Kohler China Investment Co., Ltd. 2024
-1-
©
E SERIES
INSTALLATION INSTRUCTIONS
K-34938T/K-34941T
E0
0.5mg/L
GB 24977-2010
ITB
940mm ...................K-34938T
ITB
1245mm ...............K-34941T
940mm .............................K-96016T-1/-4/-8
1245mm ...........................K-96017T-1/-4/-8
E SERIES
215500
CABINET
-
UNIT : mm
400
2024
