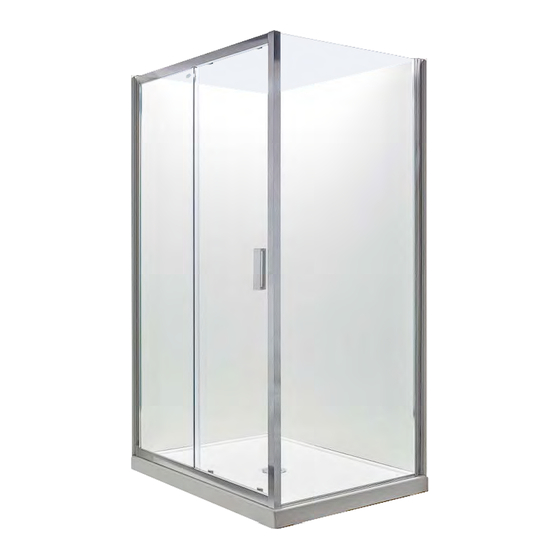

Kohler Englefield VALENCIA ELITE Installation Instructions Manual
Corner sliding 12x9
Hide thumbs
Also See for Englefield VALENCIA ELITE:
- Installation instructions manual (16 pages) ,
- Installation instructions manual (15 pages) ,
- Installation instructions manual (7 pages)
Related Manuals for Kohler Englefield VALENCIA ELITE
Summary of Contents for Kohler Englefield VALENCIA ELITE

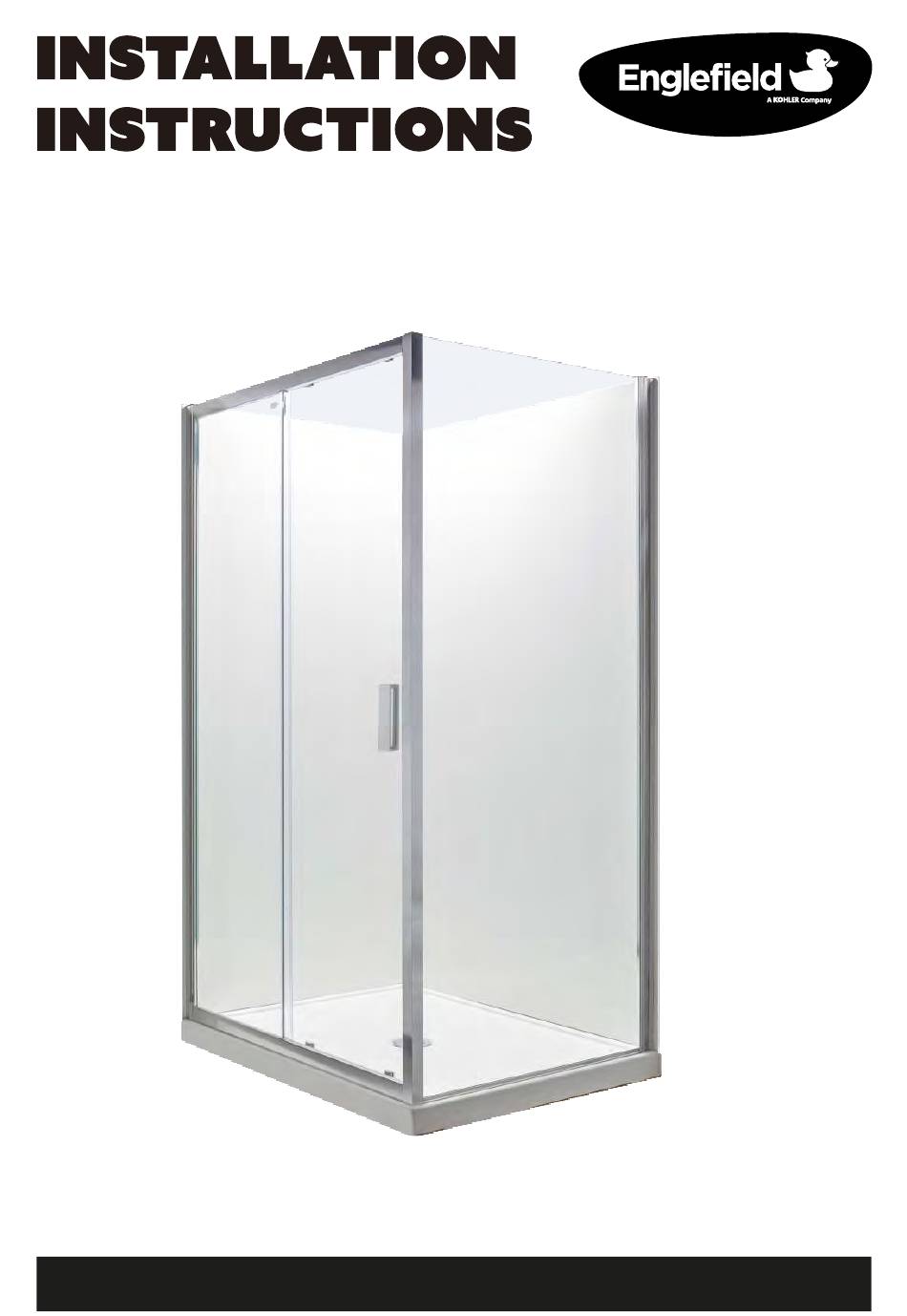

- Page 1 SHOWER VALENCIA ELITE Corner Sliding 12x9 englefield.co.nz 1371374-A02-B October 2023...
-
Page 2: Before You Begin
Corner Sliding Shower VALENCIA ELITE INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Before installing the shower please read these instructions carefully to familiarise yourself with the required tools, materials and installation sequences. Please leave these instructions for the consumer after installation. Refer to the separate care and maintenance guide for important care and cleaning information. -
Page 3: Tools And Materials Required
VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS TOOLS AND MATERIALS REQUIRED Square Drive 2.0 mm - supplied 3.0 mm PARTS IDENTIFICATION 2 x Wall 1 x Fittings Kit Channels 1 x Door 2 x Corner 1 x Seal Pack Covers ... -
Page 4: Side Panel
VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS 1 x Side Panel 4 x Assembly Screws 4 x Cover Caps 1 x Top Cap 2 x Top Caps 1 x Screw Spacer 1 x Drip Strip Extrusion englefield.co.nz Page 3 1371374-A02-B... -
Page 5: Construction Requirements
VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS CONSTRUCTION REQUIREMENTS ATTENTION Due to the weight of the glass panels Englefield strongly recommends constructing double studs (as below) to fix the wall retainers to. Size Dim ‘A’ Dim ‘B’ 1200 x 900 LH 1200 1200 x 900 RH 1200... -
Page 6: Installation Options
VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS INSTALLATION - Options OPTION 1 - Acrylic Wall & Tray Tray: For tray installation refer to the instructions supplied with the tray. Wall: For wall installation refer to the instructions supplied with the wall. - Proceed to Door and Return Installation. -
Page 7: Installation
VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS INSTALLATION Caution: Ensure tray or tiled floor is level & walls are vertical & square. ± 0 mm ± 0 mm Tip: Cover the waste to prevent the loss of small parts. If installing onto a tray protect the tray surface during installation. - Page 8 VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS 3 mm 10 mm Position the wall channels on the wall. The short leg should face inside the shower enclosure. Using a level, ensure that the channels are upright. Mark the position of the fixing holes down the centre of the channels, then remove the wall channels.
- Page 9 VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS Logo badge on outside of shower Door To switch the door orientation, replace the top roller assemblies Long leg with the bottom roller assemblies. to outside Note! The roller assemblies with the push button will be at the bottom.
- Page 10 VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS Side Panel Side Panel Sliding Door Sliding Door The door orientation denotes the direction of the side panel. Once the door is in its correct orientation, fit the drip strip extrusion to the bottom edge of the side panel. Gently tap extrusion into place with a rubber mallet.
- Page 11 VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS Side Panel Side Panel Sliding Door Sliding Door Ø 3 mm If frame adjustment is required, keep corner post assembly fitted tightly together and carefully slide the frame (door and/or side panel) out from the wall channels. From the inside of the enclosure, drill four holes in the door frame through the centre marked points on the wall channel with a 3 mm HSS drill (not supplied).
- Page 12 VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS Use the Screw Spacer to install screws into the four corner post holes, then tighten. The Screw Spacer is to help prevent losing screws within the corner post assembly. Fit the screw cover caps over the screwheads. englefield.co.nz Page 11 1371374-A02-B...
- Page 13 VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS (a) Hang the door onto the top rail. Note! Make sure that the top rollers have adjusting screws facing downwards. (b) Loosen the top rollers with the adjusting screw until the bottom rollers easily clip into the bottom rail.
- Page 14 VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS Unlocked Rotate 90° Locked (a) Install the door handle, ensuring the grub screws are on the underside. Fit the seals to the door and the fixed panel. (c) Lock the top roller assemblies in position by turning the lock through 90º. (d) Fit the roller covers.
- Page 15 VALENCIA ELITE Corner Sliding Shower INSTALLATION INSTRUCTIONS Full length Full length 200mm up 200mm up Both ends of side panel strip Full length Full length wall finishing wall retainer strip liner channel silicone/adhesive Fit the caps to the top of the extrusions. Add silicone or modify caps to fit if required. Apply sealant along the outside surfaces of the enclosure.
-
Page 16: Cleaning And Maintenance Instructions
Side Panel Fittings Kit ** Colour code must be specified when ordering. 1348297-** (eg: white -0, black -BL, metallic -SHP, satin -SS) CONTACT AND WARRANTY INFORMATION NEW ZEALAND AUSTRALIA Kohler New Zealand Limited 0800 100 382 info@englefield.co.nz englefield.com englefield.co.nz englefield.co.nz Page 15...
