4.1.3 Door Opener Opening Time and Call Time

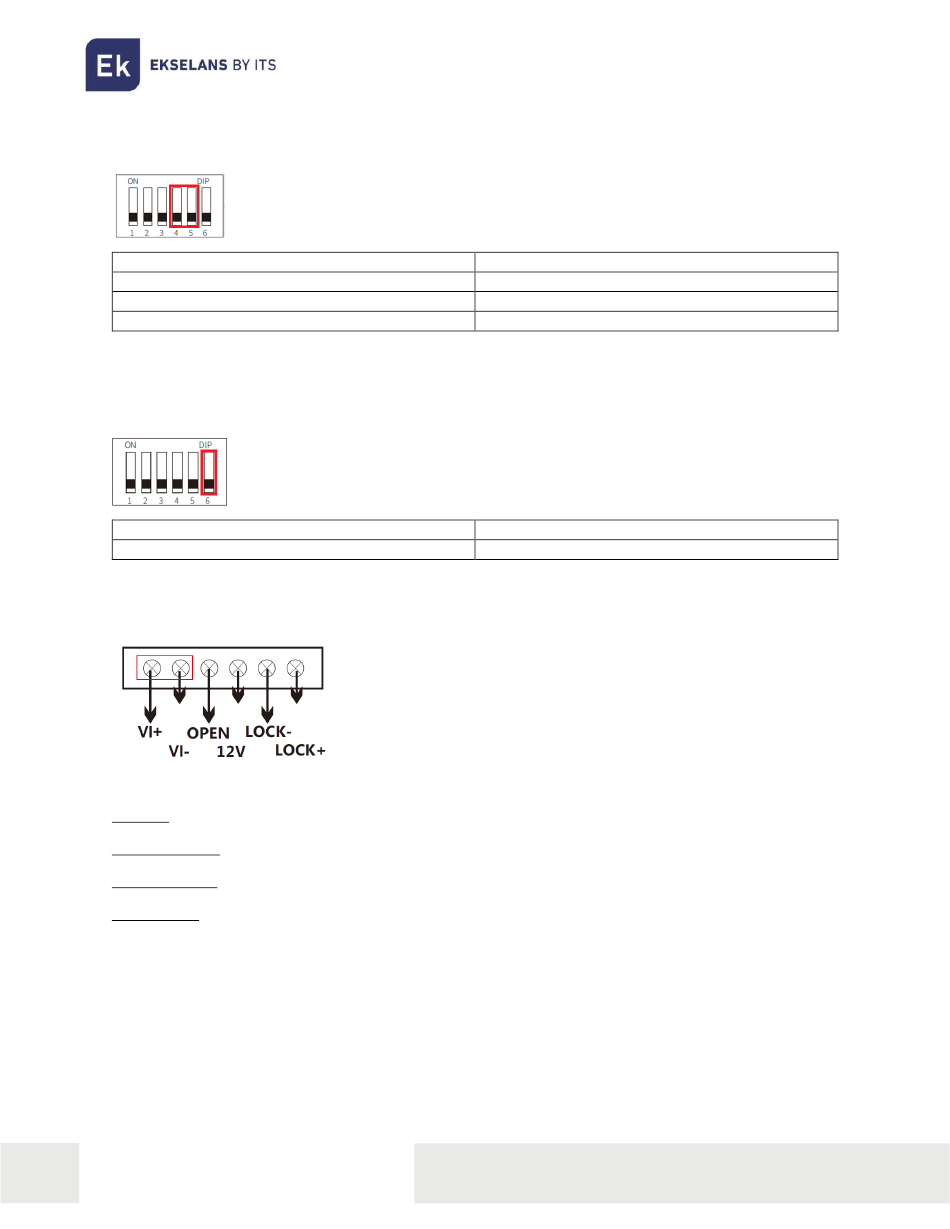

Dip switches 4 and 5 are used for this configuration.

4.1.4 Additional Camera

If it is required to use an additional camera in the installation, it is necessary to activate it on dip
switch 6 (Note: only one additional camera can be used per entrance panel).

4.2 Connections

VI+/VI-: Analog Camera Connection.
LOCK-/LOCK+: 12V Door Opener Power Output (MAX: 800mA & 3.5A Direct Power).
OPEN/LOCK-: Auxiliary door opener button.
12V/LOCK-: External power connection for the door opener (12V: COM).
