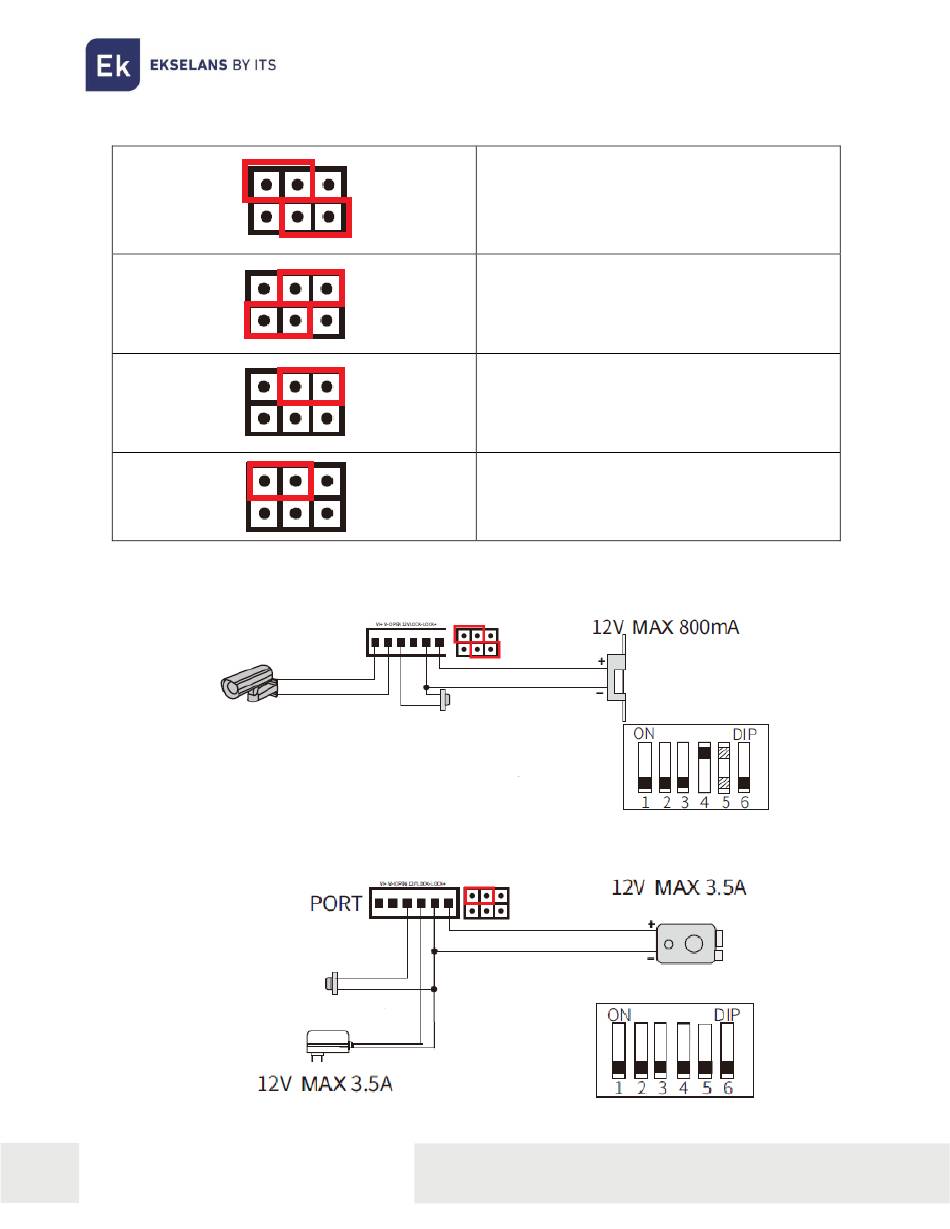

4.3 Types of jumper configurations
Connection examples:
12V door opener connection with open contact, auxiliary door opener button and analogue camera.
Externally powered door opener connection and open contact and auxiliary door opener button.
ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain) Phone:
+34935839543 · info@ek.plus · www.ek.plus
HOME WIFI KIT USER MANUAL
Power supply at 12V MAX 800mA
(Relay in NW position)
Continuous power supply at 12V MAX 800mA
(Relay in NC position)
Connection to external source
(Relay in NC position)
IMPORTANT: Maximum current 3.5A
Connection to external source
(Relay in NW position)
IMPORTANT: Maximum current 3.5A
10
