Sealey CST998 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
Always load evenly with the centre of gravity of the load as near the centre and rear of the plate
9
as possible.
Obtain additional support for large or wide loads to prevent tipping.
9
DO NOT overload the truck - see Specification.
8
DO NOT leave unattended, especially when loaded, unless the wheels are chocked or the truck is
8
otherwise secured.
DO NOT use truck on curbs or steps - use a ramp.
8
DO NOT allow others to ride on the truck.
8
DO NOT use the truck if any part is damaged, paying particular attention to the wheels.
8
2. INTRODUCTION
Extra-strong tubular steel frame construction. Steel centred pneumatic wheels allow transport
over the roughest terrain. Load protection rails to prevent damage. Features P-handle design to
improve flat loading and enables one-handed operation.
3. SPECIFICATION
Model No: ............................................................ CST998
Capacity: ..................................................................300kg
Height(s): ..............................................................1300mm
Overall Width: .........................................................550mm
Platform Depth: ......................................................230mm
Wheel Size: .........................................................Ø250mm
Wheel Width: ............................................................90mm
4. ASSEMBLY
4.1. WHEELS
4.1.1. Ensure axle is clean from dust and dirt to allow free movement of the wheel.
4.1.2. Slide the wheel (Fig.1.2) onto the axle (Fig.1.1), followed by the washer
(Fig.1.3), complete by pushing the split pin (Fig.1.4) through the hole in the
end of the axle and bending over to retain.
4.1.3. Repeat for the other side.
© Jack Sealey Limited

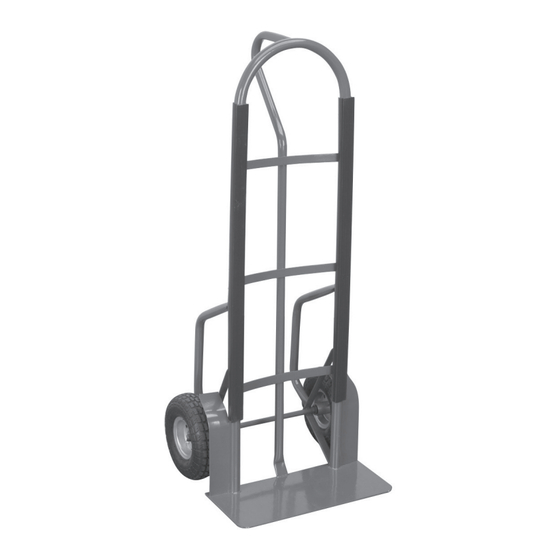

300KG SACK TRUCK WITH PNEUMATIC TYRES
CST998
MODEL NO:
Original Language Version
fig.1 fig.1
CST998 Issue 3 (H,2,3,F) 29/06/23
