Sealey CST990.V3 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAfeTy
Always load evenly with the centre of gravity of the load as near the centre and rear of the plate as possible.
9
obtain additional support for large or wide loads to prevent tipping.
9
Do noT overload the truck - see Specification.
8
Do noT leave unattended, especially when loaded, unless the wheels are chocked or the truck is otherwise secured.
8
Do noT use truck on uneven ground and Do noT run over curbs or steps - use a ramp.
8
Do noT allow others to ride on the truck.
8
Do noT use the truck if any part is damaged, paying particular attention to the wheels.
8
2. InTroDuCTIon
extra strong tubular steel frame construction. Steel centred pneumatic wheels allow transport over the roughest terrain. Features extra foldaway
toe plate for added extension when transporting larger loads. Ideal for delivery drivers, farmers or builders.
3. SpeCIfICATIon
Capacity: ...................................................................... 250kg
Height(s): ................................................................. 1249mm
nett Weight: ................................................................... 14kg
overall Width: ............................................................ 650mm
Platform depth: ................................................... 325/620mm
Wheel Size: ............................................................. Ø250mm
Wheel Thickness: ......................................................... 90mm
4. operATIon
3.1 Wheels. ensure each axle is clean from dust and dirt to allow free movement of the wheel. You will need to slide the axle through the
frame bushes first.
3.2 Slide the wheel (fig.1.2) onto the axle (fig.1.1), followed by the washer (fig.1.3) and complete by pushing the split pin (fig.1.4) through the
hole in the end of the axle and bending over to retain.
3.3 Repeat for the other side.
fig.1
© Jack Sealey limited

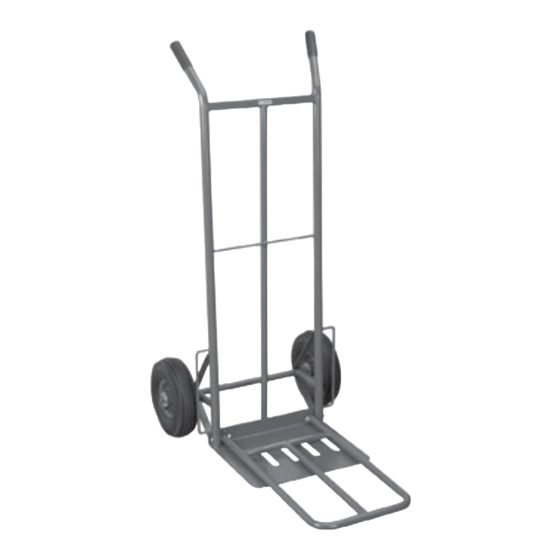

SACK TruCK
CST990.V3
Model no:
fig.2
Original Language Version CST990.V3 Issue 2 (HF) 12/10/18
