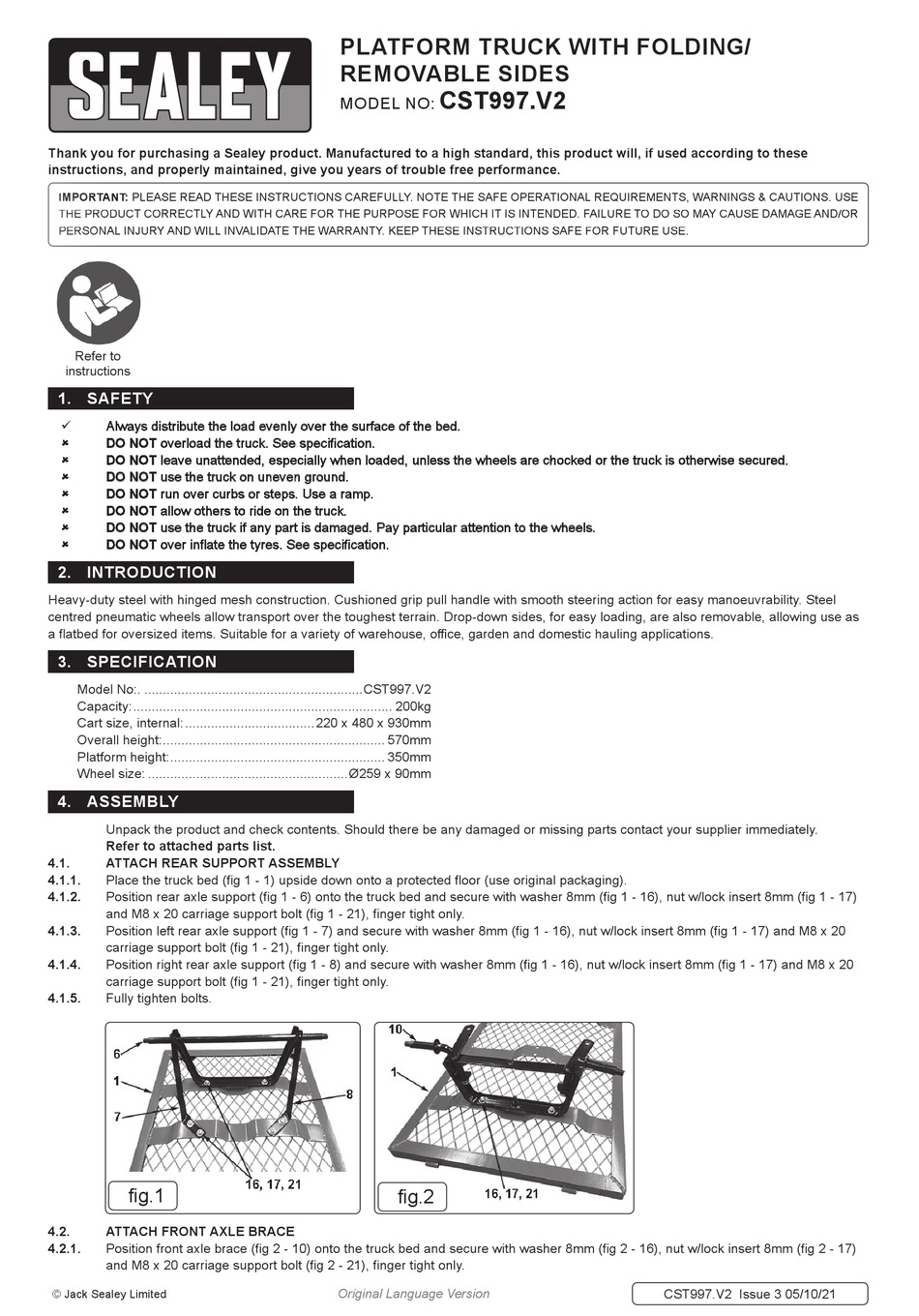

Sealey CST997.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMP P OR R TA TANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
TH H E P P RO O DUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PE E RS S ON N AL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instructions
1. SAFETY
 Always distribute the load evenly over the surface of the bed. Always distribute the load evenly over the surface of the bed.
 DO NOT overload the truck. See specifi cation. DO NOT overload the truck. See specifi cation.
 DO NOT leave unattended, especially when loaded, unless the wheels are chocked or the truck is otherwise secured. DO NOT leave unattended, especially when loaded, unless the wheels are chocked or the truck is otherwise secured.
 DO NOT DO NOT use the truck on uneven ground. use the truck on uneven ground.
 DO NOT DO NOT run over curbs or steps. Use a ramp. run over curbs or steps. Use a ramp.
 DO NOT DO NOT allow others to ride on the truck. allow others to ride on the truck.
 DO NOT use the truck if any part is damaged. Pay particular attention to the wheels. DO NOT use the truck if any part is damaged. Pay particular attention to the wheels.
DO NOT over infl ate the tyres. See specifi cation. DO NOT over infl ate the tyres. See specifi cation.

2. INTRODUCTION
Heavy-duty steel with hinged mesh construction. Cushioned grip pull handle with smooth steering action for easy manoeuvrability. Steel
centred pneumatic wheels allow transport over the toughest terrain. Drop-down sides, for easy loading, are also removable, allowing use as
a fl atbed for oversized items. Suitable for a variety of warehouse, offi ce, garden and domestic hauling applications.
3. SPECIFICATION
Model No:. ...........................................................CST997.V2
Capacity: ...................................................................... 200kg
Cart size, internal: ...................................220 x 480 x 930mm
Overall height: ............................................................ 570mm
Platform height: .......................................................... 350mm
Wheel size: ......................................................Ø259 x 90mm
4. ASSEMBLY
Unpack the product and check contents. Should there be any damaged or missing parts contact your supplier immediately.
Refer to attached parts list.
4.1. ATTACH REAR SUPPORT ASSEMBLY
4.1.1. Place the truck bed (fi g 1 - 1) upside down onto a protected fl oor (use original packaging).
4.1.2. Position rear axle support (fi g 1 - 6) onto the truck bed and secure with washer 8mm (fi g 1 - 16), nut w/lock insert 8mm (fi g 1 - 17)
and M8 x 20 carriage support bolt (fi g 1 - 21), fi nger tight only.
4.1.3. Position left rear axle support (fi g 1 - 7) and secure with washer 8mm (fi g 1 - 16), nut w/lock insert 8mm (fi g 1 - 17) and M8 x 20
carriage support bolt (fi g 1 - 21), fi nger tight only.
4.1.4. Position right rear axle support (fi g 1 - 8) and secure with washer 8mm (fi g 1 - 16), nut w/lock insert 8mm (fi g 1 - 17) and M8 x 20
carriage support bolt (fi g 1 - 21), fi nger tight only.
4.1.5. Fully tighten bolts.
fi g.1
4.2. ATTACH FRONT AXLE BRACE
4.2.1. Position front axle brace (fi g 2 - 10) onto the truck bed and secure with washer 8mm (fi g 2 - 16), nut w/lock insert 8mm (fi g 2 - 17)
and M8 x 20 carriage support bolt (fi g 2 - 21), fi nger tight only.
© Jack Sealey Limited
PLATFORM TRUCK WITH FOLDING/
REMOVABLE SIDES
CST997.V2
MODEL NO:
fi g.2
Original Language Version CST997.V2 Issue 3 05/10/21
