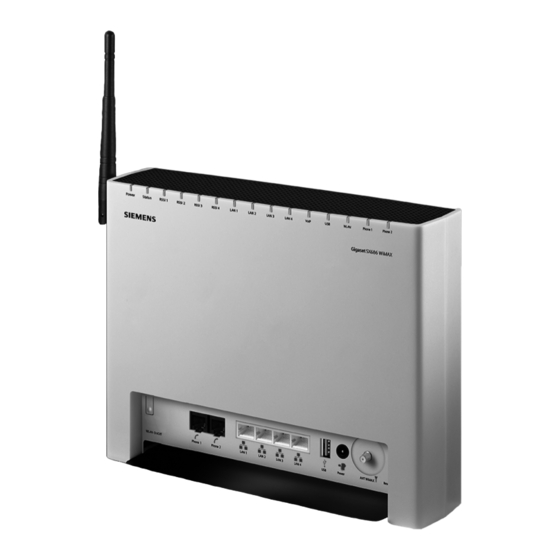

Page 1 Gigaset SX686 WiMAX User Guide This device works in a frequency band for which a general licence might have to be obtained. Please contact your service provider or your National Authority for Frequency Management about licensing before putting this device into service.
Page 3: Table Of Contents
Choosing your location ..........29 Connecting and activating the Gigaset SX686 WiMAX ......32 Installation overview .
Page 4 Contents Searching a WiMAX network ..........49 Antenna fine tuning .
Page 5 Contents USB ............. . . 116 File Server .
Page 6 Contents Using the data on a USB mass storage device ......162 Checking network services .
Page 7: For Your Safety
The Ethernet function (LAN socket, LAN) and the FXS function (analogue phone port, Phone) are designed exclusively for connection inside a building. Cleaning and care Wipe the Gigaset SX686 WiMAX with a damp cloth (do not use solvent) or an antistatic cloth. Never use a dry cloth. This can cause static.
Page 8: Information On Specific Absorption Rate (Sar)
To connect the Gigaset SX686 WiMAX to the outdoor antenna, the antenna cable must be fed through the wall to the outside of the building. It must be possible to make a suit- able wall or window duct at or near the location of the Gigaset SX686 WiMAX.
Page 9 For your safety Setting up the antenna mast: There should not be any obstructions (walls, trees etc.) in front of the antenna. The best results will be obtained if the out- Fig. 1 door antenna is in sight of the WiMAX base station (cf.
Page 10 (English) Antenna cable and antenna connection: It must be possible to connect the outdoor antenna to the Gigaset SX686 WiMAX by means of an antenna cable. Please note that the antenna connection must be protected from the impact of rain and other weather effects.
Page 11: The Gigaset Sx686 Wimax
The Gigaset SX686 WiMAX The Gigaset SX686 WiMAX The Gigaset SX686 WiMAX gateway is a powerful but simple communications device for connecting your PC or local area network (LAN) to the Internet via WiMAX. WiMAX stands for "Worldwide Interoperability for Microwave Access", a modern wire- less network technology that enables fast Internet connection even in remote areas.
Page 12 (WLAN). For network security, wireless transmission can be encrypted using the WPA/WPA2 standard or 64/128-bit WEP. There are two variants for operating the Gigaset SX686 WiMAX in a wireless network: – With integrated WLAN antenna, if you operate WiMAX within the 3.5 GHz fre- quency band.
Page 13: Product Overview
The Gigaset SX686 WiMAX Product overview The device Gigaset SX686 WiMAX with an external WLAN antenna connector Gigaset SX686 WiMAX with an internal WLAN antenna LEDs...
Page 14 Alarm: The Gigaset SX686 WiMAX is not ready. Possible Lights up red cause: device is overheating or faulty (see page 143). The LEDs on the Gigaset SX686 WiMAX help you to position 0 to 4 LEDs the antenna more easily. The LEDs indicate the signal light up strength;...
Page 15 A call is currently being made via the Internet. There is currently no connection for Internet telephony or no VoIP port has been configured. A device is connected to the Gigaset SX686 WiMAX via the USB port. Flashing The device connected to the USB port is active.
Page 16 The Gigaset SX686 WiMAX Ports and operating elements Gigaset SX686 WiMAX with its own WLAN antenna Gigaset SX686 WiMAX with an external WLAN antenna connector The Gigaset SX686 WiMAX has the following ports and operating elements. Element Description WLAN On/ WLAN on/off switch for activating and deactivating the wireless LAN.
Page 17: Features And Applications
The Gigaset SX686 WiMAX Features and applications The Gigaset SX686 WiMAX's wide range of features makes it ideal for a large number of applications. Depending on your device, some of the features may differ from the description in this instruction manual.
Page 18 The Gigaset SX686 WiMAX – Using the Gigaset SX686 WiMAX makes it easy to set up a network at home or in small offices. For example, users can exchange data or share resources in the net- work, such as a file server or printer. You can connect a USB hard disk or a printer to the USB interface of the Gigaset SX686 WiMAX and make them available to all users in your network.
Page 19: Local Area Networks With Gigaset Products
– You can easily establish an FTP or an HTTP server for Internet access with the Gigaset SX686 WiMAX. – You can connect a USB hub to the USB port on your Gigaset SX686 WiMAX and thereby at the same time provide a printer and a storage medium for all clients in your local area network.
Page 20: Wired Local Area Network (Ethernet)
In a wired local area network, PCs communicate with one another via an Ethernet cable. When the Gigaset SX686 WiMAX is used, it establishes the connection between the PCs. For this it has four Ethernet LAN ports for connecting four PCs. The PCs have to be equipped with a network port (Ethernet).
Page 21: Wireless Local Area Network (Wlan)
Gigaset SX686 WiMAX. In infrastructure mode, the stations in the network always com- municate via this access point. The access point sets up the wireless network on a per- manent basis.
Page 22 The Gigaset SX686 WiMAX Linking wireless networks with the Internet The Gigaset SX686 WiMAX has an WiMAX interface that permits all stations within its local area network to access the Internet simultaneously. To be able to use this function- ality, you need a WiMAX connection obtainable from an Internet service provider. Find out whether your service provider supports parallel access by several PCs.
Page 23: Linking A Wireless Network To An Ethernet
WLAN (wireless) Access Point Ethernet (wired) The Gigaset SX686 WiMAX has four Ethernet interfaces (LAN ports). Up to four PCs can be connected directly to these LAN ports. All PCs can access the Internet via the Gigaset SX686 WiMAX. Please remember: You can also connect an Ethernet router or switch to a LAN port to access a larger Eth- ernet.
Page 24: Extending The Wireless Network Coverage With A Repeater
The repeater will now transmit data traffic into its own wireless area. This technology allows you to set up wireless networks that cover a much larger area than is possible with a single Gigaset SX686 WiMAX. WLAN...
Page 25: Internet Telephony And Connecting Analogue Phones
You can configure these ports using the Gigaset SX686 WiMAX. The PABX of the Gigaset SX686 WiMAX allows you to connect SIP phones and PCs with SIP clients (software for Internet telephony) as well as wireless SIP phones (WLAN hand- sets) as extensions.
Page 26: Setting Up A Wireless Network Via Wps
Clients without WPS can be connected manually. WPS provides two possibilities for registration: Via registration button The Gigaset SX686 WiMAX provides the registration button function via the user interface (see page 93). Once the registration button has been activated, the device allows the registration of a WLAN client (repeater or wireless network adapter) during a two-minute inter- val.
Page 27 The Gigaset SX686 WiMAX not the case, the first time the WPS registration is started, the device automatically creates a SSID and a pre-shared key. The automatically or manually created security data is valid for all further WPS reg- istration processes. If you change this security data again manually or after a factory reset the clients have to be registered again.
Page 28: Installing The Gigaset Sx686 Wimax
For Internet telephony you also require – the access data for your VoIP service provider and – a phone for connecting to the Gigaset SX686 WiMAX or a PC with a SIP client or a VoIP telephone. If you use the separate WiMAX outdoor antenna (optional, not included in the...
Page 29: Choosing Your Location
This user guide assumes that installation of the outdoor antenna has been completed. Choosing your location The Gigaset SX686 WiMAX can be set up in any suitable location in the home or office. You do not need any special wiring. However, you should comply with the following...
Page 30 Installing the Gigaset SX686 WiMAX If you use the WiMAX antenna integrated into the Gigaset SX686 WiMAX: Position the Gigaset SX686 WiMAX directly in a window, so that the side with the LEDs and connectors is pointing into the room, towards you. Wherever possible, position the Gigaset SX686 WiMAX on one of the upper storeys.
Page 31 PC with Gigaset SX686 WiMAX When used with the antenna integrated into the device or the outdoor antenna, the Gigaset SX686 WiMAX complies with the regulations on lim- iting the effect of electromagnetic fields on the general population.
Page 32: Connecting And Activating The Gigaset Sx686 Wimax
Network adapter is installed in the PCs you want to connect to the Gigaset SX686 WiMAX. The installation is de- scribed in the user guides for these products. 3. Then make the necessary connections (PCs, phones) on the Gigaset SX686 WiMAX and activate the device.
Page 33: Connecting The Outdoor Antenna
Installing the Gigaset SX686 WiMAX If you want to use the Gigaset SX686 WiMAX for Internet telephony, you must con- figure your VoIP provider's registration data (refer to the section entitled "Setting up Internet telephony (VoIP)" on page 105). If you wish to use other functions of the Gigaset SX686 WiMAX, for example the comprehensive security features, use the Security Setup (page 59) or the Advanced Setup (page 69).
Page 34: Connecting A Pc Wired
Installing the Gigaset SX686 WiMAX Connecting a PC wired You can connect wired or wireless PCs to your Gigaset SX686 WiMAX to create a local area network (LAN). Wireless connection is possible after connecting the Gigaset SX686 WiMAX to the power supply (see page 36).
Page 35: Connecting A Telephone, Fax Machine Or Answer Machine
Depending on the connection plug on your analogue terminal, you may require an additional adapter (TAE socket on the RJ11 plug). Connect the Gigaset SX686 WiMAX with the analogue phone as follows: ì Insert the plug of the telephone into the Phone 1 or Phone 2 port on the Gigaset SX686 WiMAX.
Page 36: Connecting To The Mains Power Supply
Please remember: Only use the mains adapter supplied with the device (12V DC 2A). ì Connect the mains adapter cable to the Power socket on the Gigaset SX686 WiMAX. ì Plug the mains adapter into a mains socket. The Gigaset SX686 WiMAX is now switched on and ready for operation.
Page 37: Connecting Pcs Wirelessly
A wireless network is defined by assigning an identical SSID to all the devices. ì You should therefore enter the SSID for the Gigaset SX686 WiMAX in your network adapter configuration. You will find the default SSID for the Gigaset SX686 WiMAX at the label on the bottom of the device (e.g.
Page 38 If one of your network adapters do not provide this encryption method, you must change the encryption method at the Gigaset SX686 WiMAX (see page 94) and then configure the encryption appropriately for all network adapters. The settings at the...
Page 39: Checking The Operating State
Installing the Gigaset SX686 WiMAX Checking the operating state Your Gigaset SX686 WiMAX is now ready for use. The LED displays on the front panel of the Gigaset SX686 WiMAX provide information about the operating state (see page 13). When the device is ready for use, the LEDs light up as follows: The Power LED on the front lights up green.
Page 40: Connecting And Configuring Additional Pcs (Optional)
Once you have configured one PC as described above you can connect additional PCs to the Gigaset SX686 WiMAX. You will need an additional cable for each PC you want to connect via cable. For the wireless connection of additional PCs, you will need a wireless network adapter.
Page 41: The User Interface
The user interface The user interface You have connected a PC to the Gigaset SX686 WiMAX and possibly made the settings in the local area network. You can now configure the Gigaset SX686 WiMAX using this PC via the user interface. We recommend for initial configuration that you connect the PC in wired mode.
Page 42: The Start Screen
The user interface ì Click OK. Note: For security reasons you should change this password at a later stage (page 60). A screen with security information will appear. You can skip this when configuring the device for the first time. If you carry out all the general and security settings using the wizard as described below, your device and network will be fully protected.
Page 43 This is described from page 69. Status You can view information about the configuration and status of the Gigaset SX686 WiMAX in the Status menu. This is described from page 136. Language You also have the opportunity to specify the language for the...
Page 44: Selecting A Language
To establish or end an Internet connection manually: ì Open the start screen of the Gigaset SX686 WiMAX as described on page 41. If you have already started the user interface, click the start screen tab at the top left of the window.
Page 45: Elements In The User Interface
Buttons in the Advanced Settings menu Transfers the settings you have made to the Gigaset SX686 WiMAX configuration. Cancel Deletes all the entries on a screen since the last time you clicked OK. Other buttons may be displayed depending on the function in question. These are...
Page 46: Basic Setup Wizard
The Basic Setup Wizard will reconfigure your Internet settings if you have already set these. This does not affect the WLAN and LAN settings. The access data is saved in the Gigaset SX686 WiMAX during configuration. Before passing the device on to somebody else or having your dealer replace it, you should always reset the configuration of your device to its factory settings (page 134).
Page 47: Choosing The Antenna
Basic Setup Wizard Choosing the antenna On this screen you choose if you want to operate your Gigaset SX686 WiMAX with an internal or external antenna. ì Choose Gigaset without an external antenna if you are using the antenna inte- grated in the Gigaset SX686 WiMAX.
Page 48: Aligning The Antenna
Aligning the antenna ì If you are using the antenna integrated in the Gigaset SX686 WiMAX, align it towards the window. Your Gigaset SX686 WiMAX is already standing by the window with the cable connections turned inwards and is connected.
Page 49: Searching A Wimax Network
Note During the scan, the Gigaset SX686 WiMAX or antenna must not be moved; this is the only way to guarantee a complete scan with the current antenna alignment. As soon as a radio connection has been established with a WiMAX network, the scan will end.
Page 50 Note You must not move the Gigaset SX686 WiMAX during the scan. You should therefore always place the Gigaset SX686 WiMAX upright and on a level surface directly by the window. If the scan has still not been successful with the alignment changed: ì...
Page 51 Gigaset SX686 WiMAX that points towards this base station. The best results will be obtained if the Gigaset SX686 WiMAX is in sight of a WiMAX net- work base station. If a line of sight is not possible, you can reflect the radio waves off neighbouring build- ings.
Page 52: Antenna Fine Tuning
Internet connection will be in the future. To obtain precise alignment of the Gigaset SX686 WiMAX or antenna, turn it a little at a time. If you use the antenna integrated in the Gigaset SX686 WiMAX, you can also move the device a little at a time to optimise the reception quality.
Page 53: Regional Options
When your Gigaset SX686 WiMAX or outdoor antenna is optimally aligned: ì Click Next >. ì Make sure that in future your Gigaset SX686 WiMAX or outdoor antenna is always in the set position. Regional Options You can select your present location for the regional settings on this screen.
Page 54: Configuring Internet Connections
Basic Setup Wizard Configuring Internet connections You will find the access data you require for configuring the Internet connection in the documentation you received from your Internet service provider (ISP). You can perform the initial configuration of your Internet connection on this screen. If you want to change the data later on, you can do this in the Advanced Settings (page 70) menu.
Page 55 Basic Setup Wizard PPPoE pass-through PPPoE pass-through allows you to use an additional Internet connection (through another service provider) on one PC. ì Deactivate PPPoE pass-through if you do not wish to use this function. Using UPnP (Universal Plug and Play) PCs with UPnP (Universal Plug &...
Page 56: Telephony
Basic Setup Wizard Telephony You will find the access data you require for configuring Internet telephony (VoIP) in the documentation you received from your service provider. ì Select the option On for VoIP account if you wish to use Internet telephony (default setting).
Page 57: Wps Registration
Once WPS registration is activated, the device searches for a WPS client within range. Any WPS client within range that activates the WPS function during the two-minute interval receives the Gigaset SX686 WiMAX security data (SSID and pre-shared key) and is thereby registered.
Page 58: Summary
If you want to confirm the settings, click Finish to close the Basic Setup Wizard. The Gigaset SX686 WiMAX is now configured and ready to connect to the Internet. The Security Setup Wizard then opens automatically. We strongly recommend using the Security Setup Wizard to protect your Gigaset SX686 WiMAX against attacks.
Page 59: Security Setup Wizard
Limit access to the wireless network to certain PCs (page 66). The user interface of the Gigaset SX686 WiMAX guides you step by step through the security configuration. Once you have completed a screen, click Next >. If you want to make any changes or check your entries again, click <...
Page 60: Assigning A Password
Note: If you ever forget your password you will have to return the Gigaset SX686 WiMAX to its factory settings (page 134). Please bear in mind that this will restore all settings to the factory configuration. The password will again be admin.
Page 61: Changing The Ssid
SSID (Service Set Identifier). The Gigaset SX686 WiMAX is delivered with a preset SSID. You will find it at the label on the bottom of the device. This can be a default SSID, e.g. ConnectionPoint, or a SSID which is individually set for each device in the format SX686-XXXXXX, where XXXXXX is a string consisting of 0-9 and A-F, e.g.
Page 62: Setting Up Security Functions For The Wireless Network
LAN. The Gigaset SX686 WiMAX makes use of effective encryption methods to prevent unau- thorised eavesdropping as far as possible. The Gigaset SX686 WiMAX is delivered with preset individual encryption (WPA2-PSK/ WPA-PSK with pre-shared key).
Page 63: Wpa2/Wpa With Pre-Shared Key (Psk)
Security Setup Wizard WPA2/WPA with pre-shared key (PSK) is a more advanced procedure than WEP for protecting wireless networks. Dynamic keys, based on TKIP (Temporal Key Integrity Protocol), offer increased security. The new standard WPA2 uses (Advanced Encryption Standard) for encryption. WPA-PSK is a special WPA mode for private users and users in small companies without their own authentication server.
Page 64: Wep Encryption
You can choose either the standard 64-bit key or the more robust 128-bit key. The keys are generated in hexadecimal or in ASCII format. You must use the same keys for encryp- tion and decryption for the Gigaset SX686 WiMAX and all your wireless network adapters.
Page 65 You have to change the WEP encryption in the wireless network adapters for the connected PCs in the same way, otherwise they will not be given access to the Gigaset SX686 WiMAX wireless network. ì To go to the next step, click Next >...
Page 66: Access Control Within The Wireless Network
Security Setup Wizard Access control within the wireless network In this step you can specify which PCs will have wireless access to the Gigaset SX686 WiMAX and hence to the LAN. Access control is based on the MAC address of the PC net- work adapters.
Page 67 You can completely reset the Gigaset SX686 WiMAX (page 16). You can connect a PC to the Gigaset SX686 WiMAX using one of the LAN connec- tions (by cable). As MAC access control only affects PCs that are connected wire- lessly, you can use this PC to change the configuration.
Page 68: Saving Settings
If you have changed the encryption setting, you must now configure the WEP or WPA key for the wireless network adapter of the PC that has been configured with other values. After this you can again wirelessly log on to the Gigaset SX686 WiMAX.
Page 69: Configuring Advanced Settings
(page 116). Administration You can make or change various system settings here, for example change the password (page 131) or set the time (page 130). In addition, you can also back up the data on the Gigaset SX686 WiMAX (page 133).
Page 70: Internet
Configuring Advanced Settings Internet If you have configured the Gigaset SX686 WiMAX using the two wizards, you have also configured the connection (Internet access). You can check or change these set- tings in the Internet menu. This menu also offers you a wide range of possibilities for setting up security settings and limiting access to the Internet as well as for providing your own services on the Internet.
Page 71: Internet Selection
In the VLAN tag field enter a number to be used as VLAN tag for the connection service. Your Gigaset SX686 WiMAX supports VLANs (Virtual Local Area Network) according to the IEEE 802.1 Q standard. The VLAN tag thereby indicates in all incom- ing and outgoing data packets the VLAN (connection service) to which the data packet belongs.
Page 72: Internet Connection
Configuring Advanced Settings Internet Connection You can set up or change the configuration of your Internet connection on this screen. All the settings you make here must coincide with the features your Internet service pro- vider makes available to you. False information can lead to problems with your Internet connection.
Page 73 In the VLAN tag field, enter a number to be used as VLAN tag for the connection service. Your Gigaset SX686 WiMAX supports VLANs (Virtual Local Area Network) according to the IEEE 802.1 Q standard. The VLAN tag thereby indicates in all incom- ing and outgoing data packets the VLAN (connection service) to which the data packet belongs.
Page 74 Configuring Advanced Settings ì Select On to activate PPPoE pass-through and click OK to apply the settings. Using UPnP (Universal Plug and Play) PCs with UPnP (Universal Plug & Play) can offer their own network services and automat- ically use services offered in the network. Note: The operating system Windows ME, Windows XP or Windows Vista must run on the PC.
Page 75: Dns Server
Configuring Advanced Settings DNS server DNS is a decentralised service that assigns PC names or Internet addresses (Domain names) and IP addresses to one another. A DNS server has to administer this information for each server or each LAN with an Internet connection. Your Internet service provider will usually provide you with a DNS server that makes this...
Page 76: Firewall
Protect the network against hacker attacks (for information see below), Block access by individual PCs to selected services (page 78). The firewall functions for the Gigaset SX686 WiMAX are activated and configured in the factory. If you want to deactivate the firewall, carry out the following steps: ì...
Page 77: Attack Detection
Configuring Advanced Settings Attack Detection If the firewall functions of the Gigaset SX686 WiMAX are activated, the device monitors and limits access to incoming data traffic via the WiMAX connection with a function called "Stateful Packet Inspection" (SPI). This allows the Gigaset SX686 WiMAX to detect and prevent certain types of attack from the Internet, such as Denial-of-Service (DoS).
Page 78: Setting Up Access Control To The Internet
Configuring Advanced Settings Setting up access control to the Internet The Access Control function allows you to block access to various services for one or more PCs. You can permit or block access to services at certain times. ì In the Advanced Settings menu, select: Internet – Firewall – Access Control ì...
Page 79 Configuring Advanced Settings ì Select the Access rule type from the list: – Apply to all clients: The rule applies to all PCs in the network. – Specify IP address range: Sie wählen die PCs aus, auf die die Regel angewendet werden soll, indem Sie einen IP-Adressbereich eingeben.
Page 80: Setting Up The Nat Function
Port triggering is a special variant of port forwarding. Unlike port forwarding, the Gigaset SX686 WiMAX forwards the data from the port block to the PC which has previ- ously sent data to the Internet via a certain port (trigger port). This means that approval for the data transfer is not tied to one specific PC in the network, rather to the port num- bers of the required Internet service.
Page 81 IP addresses of PCs in the local network are converted to the router's public IP address when accessing the Internet. You can use the NAT settings to configure the Gigaset SX686 WiMAX to carry out the following tasks:...
Page 82: Port Triggering
Configuring Advanced Settings Port Triggering If you configure port triggering for a certain application, you must identify a trigger port and the protocol (TCP or UDP) this port uses. You can then assign the public ports that must be opened for the application and this trigger port. You can select known Internet services for this purpose or assign ports or blocks of ports manually.
Page 83: Port Forwarding
Configuring Advanced Settings Port Forwarding If you configure Port Forwarding, the Gigaset SX686 WiMAX outwardly assumes the role of the server. It receives requests from remote users under its public IP address and auto- matically redirects them to local PCs. The private IP addresses of the servers on the local network remain protected.
Page 84: Opening The Firewall For A Selected Pc (Exposed Host)
Configuring Advanced Settings You can use – a single port number, – several port numbers separated by commas, – port blocks consisting of two port numbers separated by a dash, or – any combination of these (for example 80,90-140,180). ì In the Local port field, enter the internal port number(s) to which service requests are to be forwarded.
Page 85: Dynamic Dns
This task is performed by the dynamic DNS service (DynDNS). You can use the DynDNS service to assign the Gigaset SX686 WiMAX an individual fixed domain name on the Internet even if it does not have a static IP address.
Page 86 Configuring Advanced Settings One possible service is DynDNS.org (http://www.DynDNS.org). If you have activated the device's DynDNS function, it will monitor its public IP address. When this changes, the device will open a connection to DynDNS.org and update its IP address there. Note: You must have an account with the service you have chosen (e.g.
Page 87: Routing
Configuring Advanced Settings Routing Your Internet service provider can permit you to set up a number of connection services. The entire data traffic between your local network and the Internet uses the first con- nection service (route) by default. After setting up various connection services (page 71), you can change this default route and set up additional routes by assigning data traffic to other connection services.
Page 88: Lan Configuration
Subnet mask for the local network administered by the Gigaset SX686 WiMAX is 255.255.255.0. ì If you want to assign a different IP address to the Gigaset SX686 WiMAX, enter your chosen IP address in the boxes next to IP address.
Page 89 IP addresses to the PCs. Define the First issued IP address and the Last issued IP address. ì If you want to define a different Default gateway in your local area network instead of the Gigaset SX686 WiMAX, enter the IP address of this default gateways in the rel- evant boxes.
Page 90: Assigning Static Ip Addresses To Individual Pcs
Configuring Advanced Settings Entering the DNS server DNS is a decentralised service that assigns PC names or Internet addresses (Domain names) and IP addresses to one another. A DNS server must administer this information for each server or for each LAN with an Internet connection. Your Internet service provider will usually provide you with a DNS server that makes this...
Page 91: Configuring Wireless Connections
In the Advanced Settings menu, select: Wireless Network ì Select On for the Wireless Network (default setting). Devices can only log in wirelessly if the WLAN module of the Gigaset SX686 WiMAX is activated. You can now make the settings for the wireless network.
Page 92 SSID (Service Set Identifier). The Gigaset SX686 WiMAX is delivered with a preset SSID. You will find it at the label on the bottom of the device. This can be a default SSID, e.g. ConnectionPoint, or a SSID which is individually set for each device in the format SX686-XXXXXX, where XXXXXX is a string consisting of 0-9 and A-F, e.g.
Page 93: Starting Wps Registration And Configuring Wps
The most simple method to establish a secure wireless connection is click once in the user interface of the Gigaset SX686 WiMAX and do the same with the client. For further information, see "Setting up a wireless network via WPS" on page 26.
Page 94: Setting Encryption
WDS repeater function. If you change the preset key after having registered PCs at the Gigaset SX686 WiMAX via WPS or manually, you must register all PCs again manually or via WPS.
Page 95: Wpa2-Psk And Wpa2-Psk / Wpa-Psk
WPA2 and WPA2/WPA with authentication server (page 96) WEP encryption (Wired Equivalent Privacy, see page 98) Note: If you want to use the repeater function of your Gigaset SX686 WiMAX (page 103) you can only use WEP encryption. WPA2-PSK and WPA2-PSK / WPA-PSK Note: This screen allows you to display the pre-shared key.
Page 96 Configuring Advanced Settings ì Enter a key in the Pre-shared key field (up to 32 characters) and confirm it by enter- ing it again. Use a combination of letters, digits and special characters. ì By clicking the Unmask button, a message showing the pre-shared key is output in readable characters.
Page 97 Configuring Advanced Settings ì Enter the IP address of the RADIUS server in the RADIUS server IP address field. ì Enter the port of the RADIUS server in the RADIUS server port field. ì In the RADIUS server secret key field, enter a keyword that conforms to the con- ventions of the RADIUS servers that the server is to use for authentication.
Page 98: Wep Encryption
You can choose either the standard 64-bit key or the more robust 128-bit key. The keys are generated in hexadecimal or in ASCII format. You must use the same keys for encryp- tion and decryption for the Gigaset SX686 WiMAX and all your wireless network adapters.
Page 99 Configuring Advanced Settings ì Select the Key length: 64 bits or 128 bits. ì Select the Input type, i.e. whether the key is to be entered manually or generated automatically by means of a Passphrase. Manual key entry ì Select the Key type, Hex or ASCII. If you select Hex as the key type you can use the characters 0 to 9 and A to F.
Page 100 Configuring Advanced Settings Generating a key by means of a Passphrase ì Enter a Passphrase (up to 32 characters) and confirm it by entering it again. The key is generated automatically. ì Click OK to apply the settings.
Page 101: Permitted Clients
On this screen you can specify the PCs that are to have wireless access to the Gigaset SX686 WiMAX and hence to your LAN and WLAN. The default setting for access control is deactivated. This means that all PCs that use...
Page 102 You can completely reset the Gigaset SX686 WiMAX (page 16). You can connect a PC to the Gigaset SX686 WiMAX using one of the LAN connec- tions. As MAC access control only affects PCs that are connected wirelessly, you...
Page 103: Repeater Function (Wds)
Configuring Advanced Settings Repeater function (WDS) WDS (Wireless Distribution System) allows you to extend the range of your wireless net- work using a repeater. A repeater located at the outer range of a wireless network ensures that data is forwarded between WLAN clients in this wireless network and cli- ents within its own wireless range.
Page 104 The encryption settings on the repeater have to correspond to the settings on your Gigaset SX686 WiMAX. The Gigaset SX686 WiMAX and the repeaters must use the same channel. Further information can be found in the user manual for the repeater.
Page 105: Setting Up Internet Telephony (Voip)
Configuring Advanced Settings Setting up Internet telephony (VoIP) The Gigaset SX686 WiMAX allows you to make telephone calls via the Internet using an analogue telephone and also via the fixed network as usual. For Internet telephony (VoIP), you require access authorisation from your service provider and the relevant access data.
Page 106: Voip Settings
Configuring Advanced Settings VoIP settings You will receive the access and configuration data for Internet telephony from your serv- ice provider. ì In the Advanced Settings menu, select: Telephony – VoIP ì Select On if you wish to use Internet telephony (default setting). ì...
Page 107 Configuring Advanced Settings traffic at the same time over the WiMAX line, the voice quality may not be opti- mum. To ensure optimum voice quality, you can use the Maximum upstream band- width option to define the bandwidth, which is to be used as a maximum for your VoIP connection.
Page 108 Configuring Advanced Settings Setting up or modifying a VoIP account ì To set up a new account, select On. ì In the Service provider menu, select the Other option or otherwise select one of the preconfigured providers. ì Enter the data you have received from your service provider: If you choose a preconfigured service provider, the only options are generally User name and Password.
Page 109: Extensions
VoIP. Two of these extensions are connected to your Gigaset SX686 WiMAX via the Phone 1 and Phone 2 ports, while the remaining extensions are connections for SIP clients. You can assign each extension the relevant line (fixed network or VoIP account) for incoming and outgoing calls and make other settings for each extension (e.g.
Page 110 ì In the Advanced Settings menu, select: Telephony – Extensions Phone connectors The two telephone ports Phone 1 and Phone 2 of the Gigaset SX686 WiMAX have the internal phone number *1 or *2. ì Click Edit to adapt the settings for an entry (page 111).
Page 111 Click Delete to delete an entry. Configuring extensions The Extension shows either the selected port of the Gigaset SX686 WiMAX (Phone 1 or Phone 2) or the SIP client. The Extension number for the extension is preset and is dis- played as a call number.
Page 112 Configuring Advanced Settings ì Select Receive calls for all numbers if you wish to receive all incoming calls on all extensions. ì You can configure Divert calls with the following options for the Phone 1 and Phone 2 ports: – Divert always: Each call for the extension is forwarded to the extension selected in the Divert calls to field.
Page 113: Dialing Plans
Wait for dial tone on fixed line Only activate this function if it is necessary for the smooth functioning of your Gigaset SX686 WiMAX within the telephone network. ì If you wish to make all fixed network calls via a call-by-call provider, activate the Preselection function.
Page 114 Configuring Advanced Settings ì In the Phone number field, enter an individual number or also the first digits of phone numbers (e. g. 0800 or a specific area code) for which the dialling plan is to apply. ì In the Connection type selection field, you can specify the VoIP account to be used to dial the entered number.
Page 115: Quick Dial
Configuring Advanced Settings Quick dial Quick dial numbers or Vanity (phonewords) enable you to dial frequently used phone numbers quickly and easily. The quick dial number is a two-digit number (01 to 20). A vanity number is a combina- tion of letters you can enter instead of a phone number. You can specify a quick dial number and/or a vanity number for a phone number.
Page 116: Usb
Web server (page 123) Notes: If you connect a USB hub to the USB port of the Gigaset SX686 WiMAX, you can connect and use a USB memory and a USB printer at the same time. If connecting a device without its own power supply directly to the USB port, please note that the power consumption must not exceed 500 mA.
Page 117: File Server
USB mass storage device (for example a USB flash drive or external USB drive) and make them available to all users in the local network and on the Internet. Connect a USB data carrier to the Gigaset SX686 WiMAX via the USB port. ì...
Page 118 Configuring Advanced Settings ì Enter a User name, a Password, and confirm it in the next line. ì Click OK. The File Server start screen is shown again. ì Click Add to define Shared Folders for the Users defined above. ì...
Page 119 Configuring Advanced Settings Now the users you have defined are displayed. ì Choose the Access Rights for each user: no access, read-write access, or read- only access. ì Click OK. The File Server start screen is shown again. ì You can edit or delete a user by clicking the Edit or Delete button. ì...
Page 120: Web Server
Configuring Advanced Settings Web Server Your devices integrated Web server allows you to publish data stored on a connected USB mass storage device (for example a USB flash drive or external USB drive) on the Internet. Internet users can access your Web server by entering the public IP address in their Inter- net browser.
Page 121 Configuring Advanced Settings The IP address (see page 88) of the Gigaset SX686 WiMAX is displayed, as well as infor- mation as to whether Dynamic DNS (see page 85) is activated. HTTP HTTP (Hypertext Transfer Protocol) is the standard protocol for transferring data on the Internet.
Page 122 PCs in the network access the USB mass storage device via FTP. To do this, open the Internet browser and enter the following address: ftp://192.168.2.1 If you have changed the IP address of the Gigaset SX686 WiMAX (see page 88), enter the new address instead of 192.168.2.1. ì...
Page 123: Print Server
Configuring Advanced Settings ì Enter the password for the user and confirm it by entering it again in the field below. The password is case-sensitive. Avoid using proper names and obvious terms. Instead, use upper case and lower case letters, numbers and special characters. ì...
Page 124: Call Guide
Call guide Call guide Your Gigaset SX686 WiMAX allows you to make calls via the Internet (VoIP) and your fixed line. A description of how to configure your Gigaset SX686 WiMAX for using the telephone functions is provided under "Telephony" on page 56 and "Setting up Internet telephony (VoIP)"...
Page 125: Advanced Options
The functions described in this section, which are available to you when making calls via your Gigaset SX686 WiMAX, apply both for external calls and for internal calls. The func- tions described below are dependent on the connected terminal in the case of VoIP extensions.
Page 126: Conference Call Between Three Participants
Call guide Key combination Effect Description Press R1 to end the current call. You Terminate one call then switch to the waiting call. The and return to the second call is ended automatically waiting call when you replace the receiver. Conference call between three participants Key combination Effect...
Page 127: Call Waiting And Call Reject If Busy
Call guide Key combination Effect Description Dial *61*, the desired internal phone number to which all calls are to be Call forwarding to forwarded that are received on this internal number if *61*[number]# extension, and then press the # key. absent The call is forwarded after 20 seconds with this key combination.
Page 128: Special Functions
Call guide Notes: If you additionally enter *# in each case before the key combination shown in the table, the settings will be forwarded directly to the exchange and will be activated there. The phone numbers of waiting calls are not displayed even if the caller permits this.
Page 129: Confirmation Tones
Call guide Confirmation tones If you activate a service attribute, for example set up call forwarding, you will hear a pos- itive confirmation tone if successful and a negative confirmation tone if unsuccessful. Positive confirmation tone: Ascending tone sequence at 6-second intervals Negative confirmation tone: Regular sequence of short low-frequency tones...
Page 130: Administration
Configures settings for the system log (page 135) Regional Options For operating your Gigaset SX686 WiMAX, you can select the location, time zone and format for entering the time and date, and you can also configure a time server for the Internet time (system time).
Page 131: Internet Time
Click OK to apply the settings. System Password You can assign a System Password to the Gigaset SX686 WiMAX user interface and spec- ify the period after which a session is to be automatically ended if no further entry is made.
Page 132: System Management
Note If you forget your System Password, you have to reset the Gigaset SX686 WiMAX (page 16). This returns all your settings to the factory configuration. This means the system password is changed back to admin.
Page 133: Backing Up And Restoring A Configuration
Click OK to accept the settings. Backing up and restoring a configuration When the Gigaset SX686 WiMAX has been configured, it is recommended that you back up the settings. This means you can restore the settings at any time if they are acciden- tally deleted or overwritten.
Page 134: Restoring The Saved Data
A window will appear prompting you to confirm the procedure. Note: If the Gigaset SX686 WiMAX is not operating properly, you can reboot it. It should then be ready for use again (page 16). Please remember that when the device is fully reset, all the configuration settings are returned to the factory settings.
Page 135: System Log
Administration System Log The System Log is displayed in the Status – Device menu. It contains important infor- mation about how the device functions and possible problems. This information can also be automatically transferred to a system log server. ì In the Advanced Settings menu, select: Administration –...
Page 136: Status Information
Information about configuration and the status of the Gigaset SX686 WiMAX is dis- played in the Status menu of the Gigaset SX686 WiMAX. On the first screen you will find an overview of the status of the WiMAX connection, the Internet connection, the local and wireless network, the telephony, the USB interface and the device.
Page 137: Security
Status information Wireless network Status The status of the wireless network connection of the device and, if activated, the number of clients in the wireless network connected to the device. SSID The wireless network ID. Registration Button Shows if the registration button (Scan button) on the device’s back panel is enabled or disabled.
Page 138: Radio Status
Status information Identification of your wireless network visible or not changed Unauthorised users can also find the wireless network easily as you have not changed the ID of the wireless network (SSID) since setup and have not deactivated SSID broadcasting. Information on how to avoid this security risk is given in the sec- tion "Configuring wireless connections"...
Page 139: Internet
Status information Carrier to interference and noise ratio CINR = Carrier to Interference plus Noise Ratio. The CINR calculation is based on the value of the downlink measurement. Averaging is carried out according to the standard. Current uplink channel center frequency Currently used uplink frequency.
Page 140: Local Network
Status information IP address Shows the current public IP address of the device. MAC address Shows the public MAC address of the device. Default gateway Shows the IP address of the assigned default gateway. Preferred DNS server Shows the IP address of the assigned DNS server. Alternate DNS server Shows the IP address of the alternate DNS server, if available.
Page 141: Wireless Network
Status information DHCP Server – Status Shows the status of the DHCP server of the device for automatic assignment of IP addresses to clients in the local network. – DHCP clients Shows all the clients in the network that have been assigned an IP address. The Host name and the MAC address are listed to identify each client.
Page 142: Telephony
Status information Telephony You will find information about the VoIP accounts and phone call statistics on the Telephony screen in the Status menu. ì In the Status menu select Telephony: VoIP accounts Shows the number of VoIP accounts and the connection status. SIP client accounts All WLAN handsets or other SIP clients currently set up as extensions in your local network are displayed.
Page 143: Alarms
ì Click Refresh to refresh this screen and update the displayed data. Alarms The Gigaset SX686 WiMAX provides two kinds of alarm information for the WiMAX net- work: Functional Alarms Conditions such as insufficient link quality that is affecting throughput, failure to obtain network access or servers unavailable in the backbone are indicated in this group.
Page 144: Functional Alarms
Status information Alarm display in the user interface The alarm screens show the following information for each alarm: Alarm indication describes the alarm. State shows the current state of the alarm by means of a coloured symbol. Grey Unknown Active Green Inactive The symbols always show a snapshot of the situation at query time.
Page 145 Status information Ranging anomalies Communication to the base station is impaired as it is either too far away or the link quality is bad. ì Improve link. For helpful information please consult the sections "Aligning the antenna", "Searching a WiMAX network" and "Antenna fine tuning" from page 48.
Page 146: Physical Alarms
Status information Physical Alarms ì In the Status menu, select Alarms – Physical Alarms: RF PHY broken The RF chip for proper WiMAX communication is failing. ì Replace the device. Auxiliary data broken Vital data for proper operation is missing. This information can only be stored by the supplier.
Page 147: Using The Usb Port
The print job you send to the PC to which the printer is connected reduces the per- formance (resources) of this PC. If you use the USB port on the Gigaset SX686 WiMAX for your printer, you have all the advantages of a network printer without the disadvantages referred to above: The network, and consequently also the printer, is always ready (the Gigaset SX686 WiMAX and the printer itself must be switched on, of course).
Page 148: Installing A Standard Tcp/Ip Printer Port Under Windows Vista
You can use the standard TCP/IP port driver available with this operating system. Make sure that the Gigaset SX686 WiMAX is connected and is available in the network. A printer does not have to be connected to the USB port on your Gigaset SX686 WiMAX at this point.
Page 149 Using the USB port ì In the Add Printer Wizard, click the option Add a local printer. ì Select the Create a new port option button. ì Then select Standard TCP/IP Port from the selection menu in the field Type of Port. ì...
Page 150 ì In the Host Name or IP Address input field, enter the IP address of the printer server (Gigaset SX686 WiMAX): e.g. 192.168.2.1. This entry is transferred into the Port Name field. This name will later appear in the list of printer ports.
Page 151 Using the USB port ì Select the Custom option and click on Settings. ì Select the LPR option box. ì For Queue name enter lp0 (lower case: lima, papa, number 0). ì LPR Byte Counting Enabled should not be selected. ì...
Page 152 Using the USB port Windows is searching for the appropriate driver model. ì Choose the appropriate driver for your printer and click on Next. After successfully installing the driver you can now define a name for your printer. This is the name which is used to display the printer in the printer list. ì...
Page 153 Click Finish. Note: The printer server of the Gigaset SX686 WiMAX does not work bi-directionally. It does not evaluate any of the printer's response messages. For this reason please make sure that your printer is also only configured uni-directionally. You can configure the rele-...
Page 154: Installing A Standard Tcp/Ip Printer Port Under Windows Xp/2000
Gigaset SX686 WiMAX is connected and can be reached in the network. A printer need not be connected to the USB port on your Gigaset SX686 WiMAX at this point. The following illustrations show installation on Windows XP. Installation on Win- dows 2000 is essentially the same.
Page 155 Using the USB port ì In the Add Printer Wizard, click Next. The printer port you are installing will behave like an additional parallel port on the PC. For this reason you must click the option button next to Local printer in this win- dow.
Page 156 Using the USB port ì Click the Create a new port option button. ì Then select Standard TCP/IP Port from the selection menu in the field next to this option. ì Click Next. ì In the wizard for setting up a standard TCPI/IP port, click Next.
Page 157 Using the USB port ì In the Printer Name or IP Address input field, enter the IP address of the print server (Gigaset SX686 WiMAX): e.g. 192.168.2.1. A copy of your entry is displayed in the second field. ì Double-click in the Port Name field and enter a name. This name will appear in the list of printer ports.
Page 158 Using the USB port ì Enter the following data in the relevant fields: – Printer name or IP address: Enter the IP address of the print server. – Protocol Choose the option LPR. – Queue name: lp0 (lower case: lima, papa, number 0) –...
Page 159 Using the USB port ì Click Finish. Once the wizard for installing the printer port is finished, the Add Printer Wizard is opened. ì If you wish to install a printer for this port immediately, click Next and follow the instructions of the Add Printer Wizard.
Page 160: Installing A Printer On The Tcp/Ip Port Retrospectively
If you do not wish to install a printer until later, click Cancel. Note: The printer server of the Gigaset SX686 WiMAX does not work bi-directionally. It does not evaluate any of the printer's response messages. For this reason please make sure that your printer is also only configured uni-directionally.
Page 161: Instructions For Setting Up A Printer On The Pc
Then continue to install the printer and finish the installation. Note: The printer server of the Gigaset SX686 WiMAX does not work bi-directionally. It does not evaluate any of the printer's response messages. For this reason please make sure that your printer is also only configured uni-directionally.
Page 162: Using The Data On A Usb Mass Storage Device
Using the data on a USB mass storage device To view directories and files which are shared via the Gigaset SX686 WiMAX file server on the USB port within the Windows network, some parameters on your PC must be set correctly.
Page 163 Using the USB port The check boxes next to the entries Internet Protocol Version 4 (TCP/IPv4) File and Printer Sharing for Microsoft Networks must be marked. ì If one of these components is not installed it will have to be installed subsequently. You may need your Windows installation CD.
Page 164: Share Inter Process Communication For The Network
To be able to share data on the USB mass storage device on the Gigaset SX686 WiMAX, the IPC must be set to access resources shared in the network (network share).
Page 165: Enabling File And Printer Sharing In The Windows Firewall
Using the USB port ì Click on Start. If an error message appears with a content like "..has been started and then stopped again..", you still have to allow file and printer sharing in the Windows firewall (see next section). Enabling file and printer sharing in the Windows firewall The Windows firewall must be set to allow file and printer sharing.
Page 166 Using the USB port The File and Printer Sharing entry must be marked. Now your Windows system should be able to access the shared data on the Gigaset SX686 WiMAX.
Page 167: Appendix
Please wait until the connection is established. The LED will then light up permanently. Status LED is red The Gigaset SX686 WiMAX is not ready for use. The device may be too hot. In this case, the integrated overheating protector prevents the Gigaset SX686 WiMAX from being damaged.
Page 168 The Gigaset SX686 WiMAX may be faulty. lit red; overheating of the ì Restart the Gigaset SX686 WiMAX. If the Status device can be excluded LED remains red after the device has been restarted and does not extinguish, please contact your sup- plier service.
Page 169 Connect on demand option selected. – Restore the connection again manually using the Connect button or – Restart the Gigaset SX686 WiMAX. In both cases, the Connect on demand setting will be active again. After a WPS registration More than one client has tried to register.
Page 170 You defined a PIN for WPS registration at the net- work adapter but you didn’t enter this PIN at the Gigaset SX686 WiMAX PIN or not the right one. ì Find out the PIN that is used by the network adapter.
Page 171 LAN using a ping configured. In most cases you can use the DHCP command. function of the Gigaset SX686 WiMAX to assign dynamic addresses to the PCs in the LAN. In this case, you have to configure the TCP/IP settings of all the PCs so that they obtain the IP address automat- ically.
Page 172 Printing: Check whether the printer has been set up as a network printer. Gigaset SX686 WiMAX functions and their interdependency The following table shows which functions of your device are possible in which combination. In the case of error, check that the following conditions are fulfilled:...
Page 173: Deactivating Http Proxy And Configuring A Pop-Up Blocker
Appendix Deactivating HTTP proxy and configuring a pop-up blocker Before you can start the configuration program of the Gigaset SX686 WiMAX, you might need to adjust the settings described below for your Web browser. Deactivating the HTTP proxy Make sure that the HTTP proxy in your web browser is deactivated.
Page 174: Specifications
Appendix Mozilla Firefox Pop-ups are blocked by default. Carry out the following steps: ì Open Mozilla Firefox. Click Tools and then Settings. ì Click on the Content icon. ì Deactivate the Block Popup window option. ì Click OK to finish. Please note: Should you use a different pop-up blocker, you must configure this accordingly.
Page 175 Appendix Spreading Direct Sequence Spread Spectrum (DSSS) Modulation CCK, OFDM Number of channels IEEE 802.11b: 13 (Europe, ETSI) IEEE 802.11g: 13 (Europe, ETSI) Transfer rate IEEE 802.11b: 1, 2, 5.5, 11 Mbps IEEE 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 Mbps Range Up to 300 m outdoors, up to 30 m indoors Operating environment...
Page 176 Appendix Specifications for outdoor antenna (optional) Model outdoor antenna Operating temperature –40°C to +70°C Storage temperature –40°C to +70°C Frequency 2.5–2.7 GHz or 3.4–3.6 GHz Antenna socket 50 Ohm Antenna gain 3,5 GHz: 18 dBi 3,5 GHz: 9 dBi 2,6 GHz: 9 dBi 2,6 GHz: 15 dBi Antenna polarisation Vertical, horizontal...
Page 177: Guarantee Certificate United Kingdom
Appendix Guarantee Certificate United Kingdom Without prejudice to any claim the user (customer) may have in relation to the dealer or retailer, the customer shall be granted a manufacturer's Guarantee under the conditions set out below: In the case of new devices and their components exhibiting defects resulting from manufacturing and/or material faults within 24 months of purchase, Gigaset Com- munications GmbH shall, at its own option and free of charge, either replace the device with another device reflecting the current state of the art, or repair the said...
Page 178 Appendix In the case of new devices and their components exhibiting defects resulting from manufacturing and/or material faults within 24 months of purchase, Gigaset Com- munications GmbH shall, at its own option and free of charge, either replace the device with another device reflecting the current state of the art, or repair the said device.
Page 179: Open Source Software Used In The Product
Appendix Open Source Software used in the product The product contains, among other things, embedded Open Source Software, licensed under an Open Source Software License and developed by third parties. These embed- ded Open Source Software files are protected by copyright. Your rights to use the Open Source Software beyond the mere execution of the program of Gigaset Communica- tions GmbH are governed by the relevant Open Source Software license conditions.
Page 180: Glossary
Glossary Access point An access point, such as the Gigaset SX686 WiMAX, is the centre of a wireless local net- work (WLAN). It handles the connection of the wireless linked network components and regulates the data traffic in the wireless network. The access point also serves as an...
Page 181 The Gigaset SX686 WiMAX includes a DHCP server and uses it to assign automatic IP addresses to PCs in the local network. You can specify that the IP addresses for certain PCs are never changed.
Page 182 A typical hacker attack involves making a remote computer announce that it is acting for the paralysed computer, for example, and receive the data intended for you. Downlink Files that your Gigaset SX686 WiMAX receives and forwards to your local network. Dynamic IP address A dynamic IP address is assigned to a network component automatically by DHCP.
Page 183 Glossary DynDNS Dynamic DNS The assignment of Domain names IP addresses is handled by the Domain Name Service (DNS). This service is now enhanced with so-called Dynamic DNS (DynDNS) for Dynamic IP addresses. This enables the use of a network component with a dynamic IP address as a Server on the Internet.
Page 184 Glossary Gateway A gateway is a device for connecting networks with completely different architectures (addressing, protocols, application interfaces etc.). Although it is not totally correct, the term is also used as a synonym for Router. Global IP address Public IP address Half duplex Operating mode for data transmission.
Page 185 Glossary IEEE 802.16 Standard defined by the IEEE for WiMAX. Similarly to other standards in the 802 series (e.g. 802.3 Ethernet, 802.11 WLAN), the WiMAX standard is one of the standards for networks. The standard has progressed in accordance with new developments; there are currently two main versions: IEEE 802.16-2004: WiMAX, which specifies the secure location for connection part- ners.
Page 186 You receive your provider's television service via the WiMAX connection. To do this, you require an IPTV-capable set-top box and the configuration data of your IPTV provider. IPoA IP over ATM IP pool range The Gigaset SX686 WiMAX's IP address pool defines a range of IP addresses that the router's DHCP server...
Page 187 Internet. Because of this security function, NAT is frequently used as part of the Firewall of a network. If you want to make services on a PC in the local network available on the Internet despite NAT, you can configure the Gigaset SX686 WiMAX as a Virtual server.
Page 188 (also known as the global IP address) is a network component's address on the Internet. It is assigned by the Internet service provider. Devices that cre- ate a link from a LAN to the Internet, such as the Gigaset SX686 WiMAX, have a public and a Private IP address.
Page 189 Glossary PPPoE is a Protocol for connecting network components in a local Ethernet network to Internet via a modem. Print server Server Private IP address The private IP address (also known as the local IP address) is a network component's address within the local network (LAN).
Page 190 Glossary Roaming Roaming extends the range of a wireless LAN by using several Access points that use the same SSID and the same radio channel and are linked via Ethernet. The PCs in the net- work can switch dynamically between several access points without losing the existing network connection.
Page 191 If the subnet mask is in a network that is administered by the Gigaset SX686 WiMAX, for example 255.255.255.0, that means the first three parts of the IP address form the net- work number and only the final part can be used for assigning host numbers.
Page 192 Glossary Transmission Control Protocol The TCP Protocol is part of the TCP/IP protocol family. TCP handles data transport between communication partners (applications). TCP is a session-based transfer proto- col, i.e. it sets up, monitors and terminates a connection for transferring data. See also: TCP/IP Protocol...
Page 193 Internet that runs not on itself, but on another network component. The Gigaset SX686 WiMAX can be configured as a virtual server. It will then direct incoming calls for a service via Port forwarding directly to the appro-...
Page 194 WLAN is currently specified in Standard IEEE 802.11. The Gigaset SX686 WiMAX com- plies with Standard 802.11g. WPA is a new standard-conformant solution for greater security in wireless networks. WPA is meant to replace the existing WEP standard (Wired Equivalent Privacy) and offers more reliable encryption and authentication methods.
Page 195: Index
Index Index Numerics ..... . . Bridge ....Broadcast .
Page 196 Index ......Disposal ... . . Disposal (Switzerland) .
Page 197 Index ..... . . menu ....service provider .
Page 198 Index . . . Network Address Translation Printer ....Network component connecting ..... . .
Page 199 Index ........Safety precautions Subnet mask ..... . Security Super G .
Page 200 Index ....Universal Resource Locator see URL passphrase ....UPnP Wide Area Network see WAN .
Page 202 Issued by Gigaset Communications GmbH Schlavenhorst 66, D-46395 Bocholt Gigaset Communications GmbH is a trademark licensee of Siemens AG. © Gigaset Communications GmbH 2008 All rights reserved. Subject to availability. Rights of modification reserved. www.gigaset.com A31008-N919-R101-3x-7619 v 2.0 10.2008...

Siemens Gigaset SX686 WiMAX User Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Siemens Gigaset SX686 WiMAX

Summary of Contents for Siemens Gigaset SX686 WiMAX

Table of Contents
