Summary of Contents for Jung BTSGATEWAY

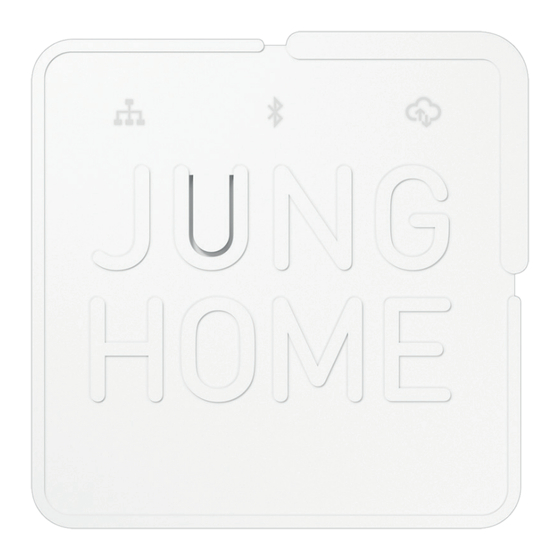

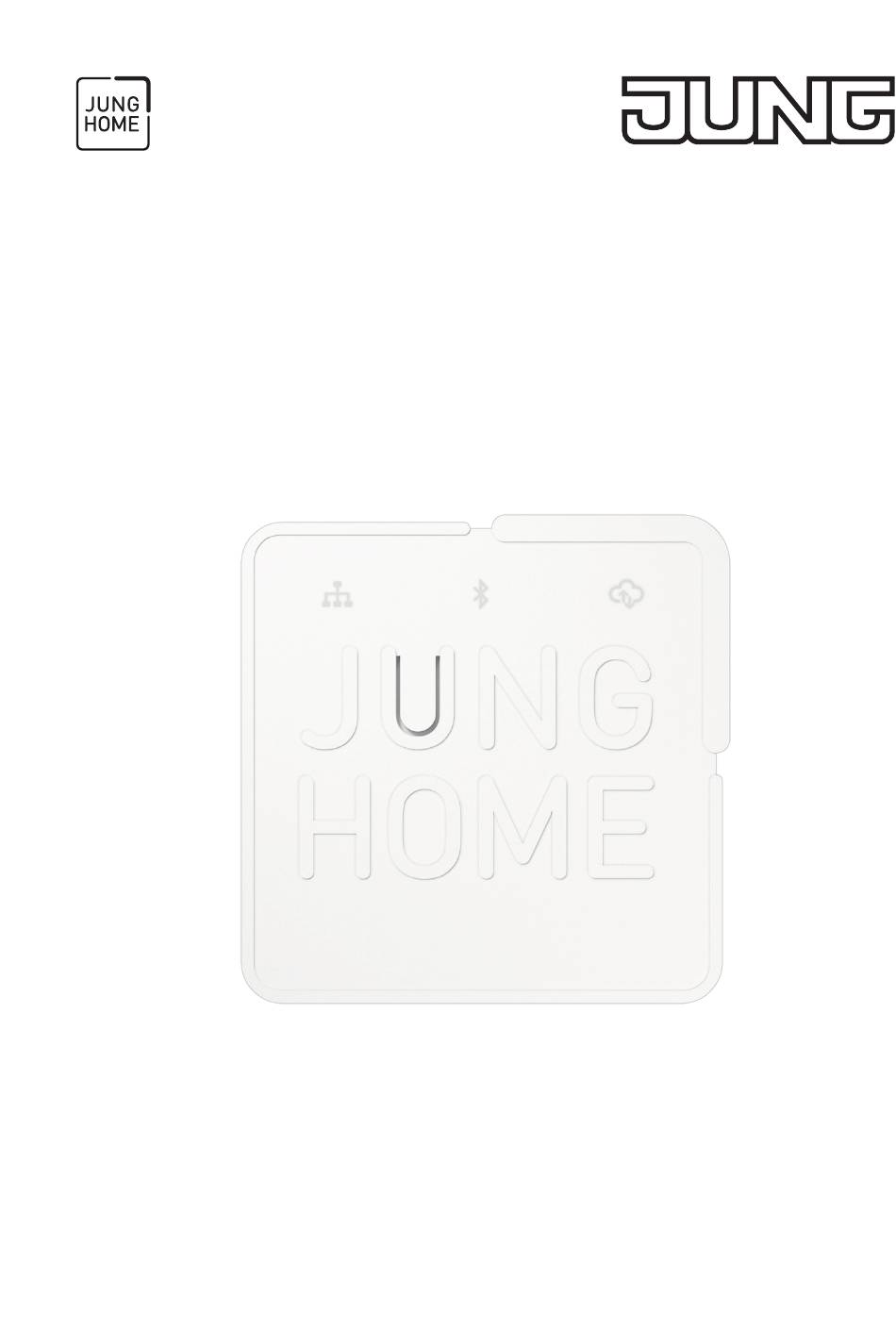

- Page 1 Operating instructions JUNG HOME Gateway Art.-Nr. BTSGATEWAY Art.-Nr. BTSGATEWAY-INT ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 09.04.2024 www.jung.de 0024075600...
-
Page 2: Table Of Contents
Connection and commissioning ...................3 Connecting the device ....................3 Commissioning via the app (Fig. 4) ................4 Setting up MY JUNG Service ..................5 Establishing a network connection with a static IP address .........5 Resetting the network settings ..................6 Performing an update ....................6 Mounting .........................6... -
Page 3: Safety Instructions
JUNG HOME Gateway Operating instructions Safety instructions Please read and follow manual fully, and keep it for future use. Only use the power supply included in delivery. Only operate the gateway with the lid closed. Connect the gateway with a network cable of Cat6 or higher, and with a maximum length of 3 m. -
Page 4: Led Display
- Connecting JUNG HOME devices to MyJUNG services e.g. for voice control - Enables other Smart Home systems in the local network to access JUNG HOME devices - Only suitable for use in indoor areas that are free of dripping and splashing water... -
Page 5: Commissioning Via The App (Fig. 4)
Requirement: The JUNG HOME app is installed on the mobile end device and Bluetooth is activated. The JUNG HOME device does not yet belong to a BT mesh network. If this is not the case, reset the device to the factory setting. -
Page 6: Setting Up My Jung Service
Assign the device a static IP address, subnet mask, name server (DNS server) and the default gate- way of the network used via the JUNG HOME app. i If the device is no longer accessible via the network after this, then the configuration is faulty. Reset- ting the network settings automatically establishes a network connection via DHCP. -
Page 7: Resetting The Network Settings
- Keep the number of ceilings and walls between JUNG HOME devices as low as possible. - Select the connection line between JUNG HOME devices so that it runs as directly as possible through walls and not at acute angles. -
Page 8: Resetting The Device To Its Factory Setting (Fig. 6)
JUNG HOME Gateway (12) Image 5: Mounting adapter for rail mounting Resetting the device to its factory setting (Fig. 6) • Press button (1) for longer than 20 seconds until the network status LED (2) flashes quickly. • Release button (1) and press it briefly once again within 10 seconds. -
Page 9: Technical Data
Power supply adapter Supply voltage AC 230 V, 50/60 HZ Output voltage 5V SELV Plug: Micro USB-B Parameters The parameter view can be accessed via Settings - My JUNG HOME - Gateway Parameters Setting options, Explanations Factory setting Area Name System... -
Page 10: Conformity
JUNG HOME Gateway Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type art. no. BTSGATEWAY and BTSGATEWAY-INT meets the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.
