DALI gateway
DALI gateway
Art.-No.: 2097 REG HE
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The DALI control voltage is a functional extra-low voltage (FELV). On installing, ensure
safe isolation between KNX and DALI.
These instructions are an integral part of the product, and must remain with the end
customer.

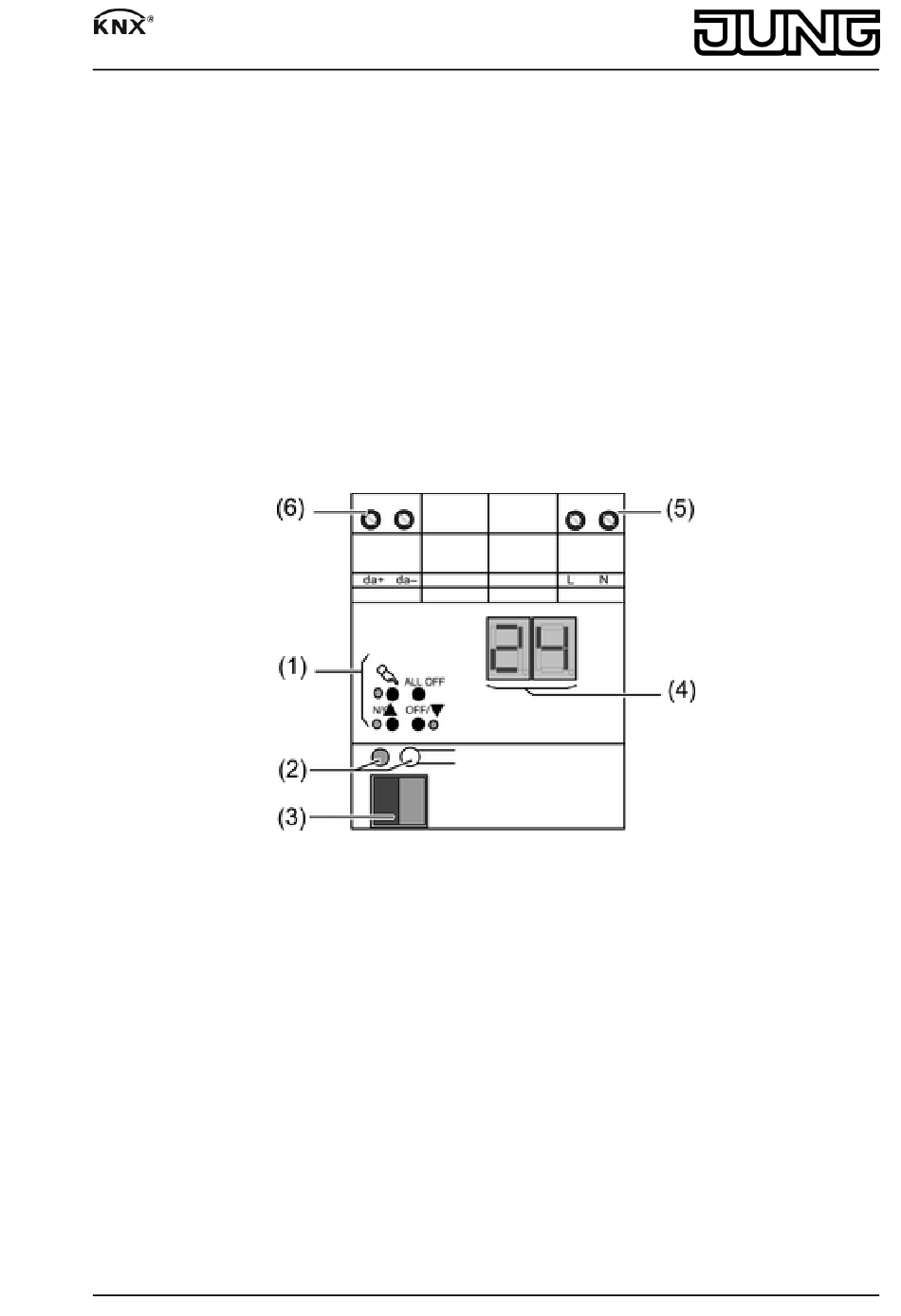

2 Device components
(1) Button field for manual control
(2) Programming button and LEDs
(3) KNX connection
(4) DALI group display
(5) Connection for mains supply
(6) DALI output
3 Function
System information
This device is a product of the KNX system and complies with the KNX directives. Detailed
technical knowledge obtained in KNX training courses is a prerequisite to proper
understanding.
The function of this device depends upon the software. Detailed information on loadable
software and attainable functionality as well as the software itself can be obtained from the
manufacturer´s product database.
82559913
J:0082559913
picture 1
1/8
16.08.2010
