eNet radiografische gateway IP
eNet radiografische gateway IP
Art. No. : FM-GATE-IP
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components

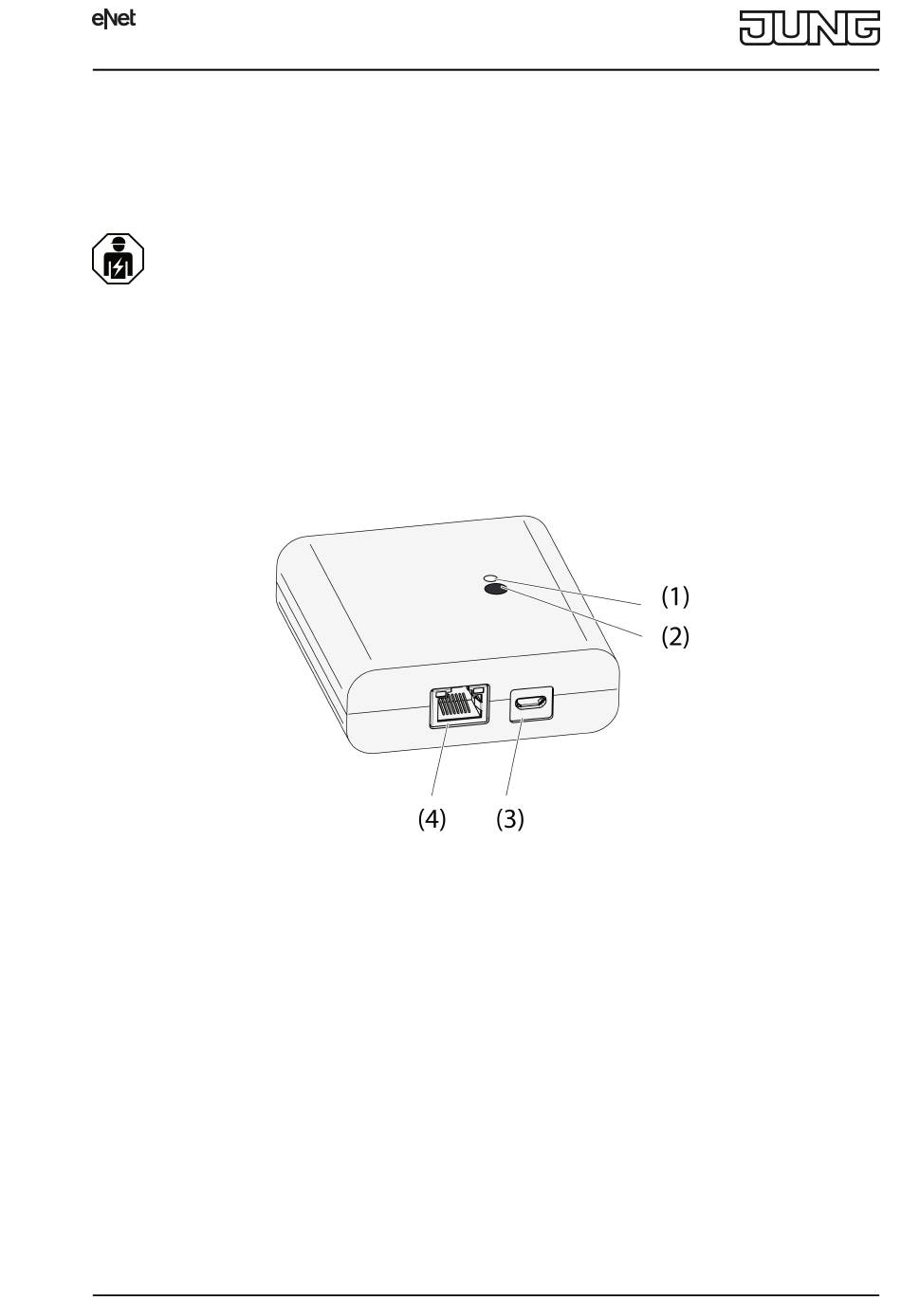

(1) Status LED
(2) Button Update/Prog.
(3) USB connection for power supply
(4) Ethernet connection
3 Function
Legal Notice
This product incorporates open source software components covered by the terms of third party
copyright notices and/or license agreements. Please refer to the attached "License Information"
for details.
Intended use
-
Gateway for the operation of eNet switching, dimming and Venetian blind actuators via
tablet PC or smartphone
-
Operation with USB power supply
82589523
J0082589523
Figure 1: Gateway
1/8
29.03.2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung eNet FM-GATE-IP
Summary of Contents for Jung eNet FM-GATE-IP
-
Page 1: Safety Instructions
eNet radiografische gateway IP eNet radiografische gateway IP Art. No. : FM-GATE-IP Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. The radio communication takes place via a non-exclusively available transmission path, and is therefore not suitable for safety-related applications, such as emergency stop and emergency call. -
Page 2: Operation
eNet radiografische gateway IP Operation with WiFi router or access point, which support DHCP (Dynamic Host Configuration Protocol), or with fixed IP address Operation indoors Product characteristics Up to 5 tablet PCs or smartphones can be simultaneously connected to the gateway Status LED to display the state of operation 20 lists for the compilation of favourite functions 24 channels for the operation of eNet actuators... - Page 3 eNet radiografische gateway IP 5 Information for electrically skilled persons 5.1 Fitting and electrical connection Installing the wall bracket Figure 2: Hole spacing, wall bracket To ensure good transmission quality, keep a sufficient distance from any possible sources of interference, e.g. metallic surfaces, microwave ovens, hi-fi and TV systems, ballasts or transformers.
- Page 4 eNet radiografische gateway IP (7) USB cable, Micro USB plug. WiFi route supports DHCP and the Gateway is set up for operation with DHCP (default setting). Using the supplied USB cable, connect the Gateway to a free USB connection of the WiFi router or a USB power supply (not included in the scope of supply).
-
Page 5: Parameter List
eNet radiografische gateway IP Download the new app onto the tablet PC or smartphone. Start the update. When requested to do so by the app: Press the Update/Prog. button on the Gateway. After a few seconds, the Status LED (2) will flash green and orange alternately. The device software is being updated. - Page 6 eNet radiografische gateway IP Operating mode App use, lock-out protection, Setting the type of scene used forced operation for a scene channel. Basic setting: App use Device settings Parameters Setting options, Basic Explanations setting IP address Freely-settable IP address Setting of the IP address of Basic setting: 192.168.0.23 the IP Gate.
-
Page 7: Troubleshooting
App: Apple App Store Android App: Google Play Store Albrecht Jung GmbH & Co. KG hereby declares that the radio system type Art. No. FM-GATE-IP corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce... - Page 8 IP ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82589523 29.03.2017 J0082589523...
