eNet radio DALI gateway 1-gang mini
eNet radio DALI gateway 1-gang mini
Art. no.: FMSTD8UP
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
These instructions are an integral part of the product, and must remain with the end customer.
2
Device components
(1)
Operating mode switch
Button Prog
(2)
(3)
Status LED
(4)
Measuring points for voltage measurement, terminals rear-mounted
3
Intended use
–
Switching and brightness setting of DALI luminaires
–
Operation with suitable radio transmitters
–
Mounting in appliance box according to DIN 49073 in combination with a suitable cover
–
Installation in surface-mounted housing or panel-mounted housing (accessories) for sus-
pended ceilings
Product characteristics
–
Joint operation of all the connected DALI ballasts, broadcast.
–
Electronic short-circuit protection of the DALI supply with permanent switch-off after 8
seconds
–
Electronic over-temperature protection of the DALI supply with self-retain
82580933
J0082580933

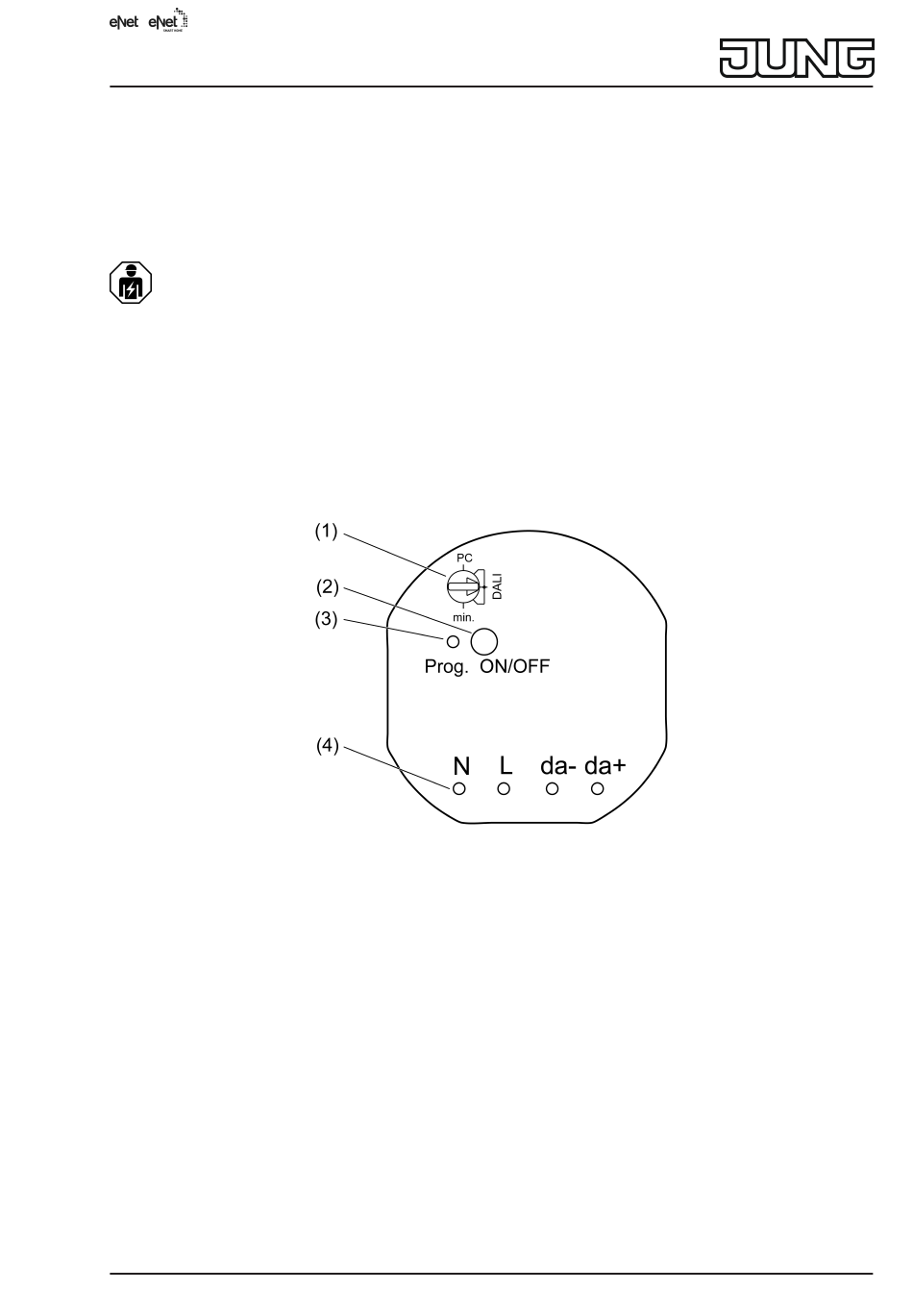

Figure 1: Front view
1 / 13
22.08.2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung FMSTD8UP
Summary of Contents for Jung FMSTD8UP
- Page 1 DALI gateway 1-gang mini eNet radio DALI gateway 1-gang mini Art. no.: FMSTD8UP Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
-
Page 2: Operation
eNet radio DALI gateway 1-gang mini – DALI supply for a maximum of 12 subscribers – Parallel switching of up to 6 DALI control units with the option of supplying up to 72 DALI subscribers – Switch-on brightness can be saved permanently –... - Page 3 eNet radio DALI gateway 1-gang mini Information for electrically skilled persons 5.1 Fitting and electrical connection DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. Before carrying out work on the device or load, disengage all the corresponding cir- cuit breakers.
- Page 4 eNet radio DALI gateway 1-gang mini Figure 3: Operating mode switch Switch position Function Operating mode, parameter set with eNet server *) DALI DALI mode min. Setting of the minimum brightness If the operating mode switch is turned from the position PC, the operating mode and parameters are set to the default setting.
-
Page 5: Technical Data
eNet radio DALI gateway 1-gang mini The status LED (3) flashes quickly for 5 seconds. The control unit is disconnected from the radio transmitter. The control unit and radio transmitter exit the programming mode automatically. If there several connections or scene buttons for a radio transmitter, all connections must be disconnected individually. -
Page 6: Parameter List
eNet radio DALI gateway 1-gang mini Rated voltage DALI DC 16 V (typ.) Output current max. 24 mA Number of DALI subscribers max. 12 Number of parallel control units max. 6 Power reduction Number of DALI subscribers over 45 °C max. - Page 7 eNet radio DALI gateway 1-gang mini Parameters Setting options, Basic setting Explanations tinuously "Off". All operations of radio transmitters and the Prog button are ignored. Advanced device settings Parameters Setting options, Basic setting Explanations Manual commissioning On, Off Blocks manual commissioning Basic setting: On for the device channel.
- Page 8 eNet radio DALI gateway 1-gang mini Parameters Setting options, Basic setting Explanations will remain off. Note: The set time apply to operation using radio transmit- ters. The device is switched immediately when the Prog button is pressed. Switch-off delay 0 s … 24 h The load switches off after a Basic setting: 0 s delay.
- Page 9 eNet radio DALI gateway 1-gang mini Parameters Setting options, Basic setting Explanations ters. The device is switched immediately when the Prog button is pressed. Manual switch-off of the run- On, Off Allows manual switch-off of a on time Basic setting: Off running run-on time.
- Page 10 eNet radio DALI gateway 1-gang mini Parameters Setting options, Basic setting Explanations Behaviour after the end of the Behaviour of the output when disabling function a block is removed. no change Last value Basic setting: No change Manual saving of the scene On, Off Disables the saving of the cur- values...
- Page 11 eNet radio DALI gateway 1-gang mini Parameters Setting options, Basic setting Explanations Deactivate forced operation 0…100 % Defines the behaviour of the brightness value Basic setting: 0 % output on deactivating the forced operation. Only visible when the priority for the forced operation is 0.
-
Page 12: Troubleshooting
eNet radio DALI gateway 1-gang mini Parameters Setting options, Basic setting Explanations Switch on brightness under- On, Off Allows automatic switch-on shoot Basic setting: Off according to the brightness. If the parameter is On, then the light controller switches on automatically when the bright- ness setpoint is greatly under- shot. -
Page 13: Warranty
Art. no. ENET-SERVER 10 Conformity Hereby Albrecht Jung GmbH & Co. KG declares that the radio system type Art. no. FMSTD8UP corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
