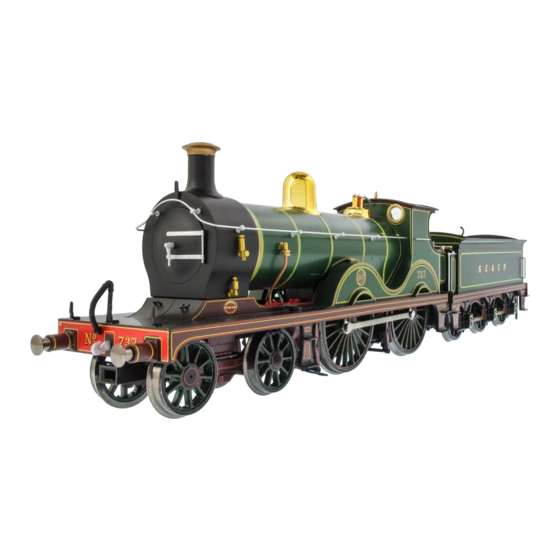

DAPOL SECR Wainwright D class Owner's Manual
  1. Manuals
  2. Brands
  3. DAPOL Manuals
  4. Toy
  5. SECR Wainwright D class
  6. Owner's manual

DAPOL SECR Wainwright D class Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Introduction
SECR Wainwright D class
OO Gauge Model
Owner's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SECR Wainwright D class and is the answer not in the manual?

Questions and answers

Related Manuals for DAPOL SECR Wainwright D class

Summary of Contents for DAPOL SECR Wainwright D class

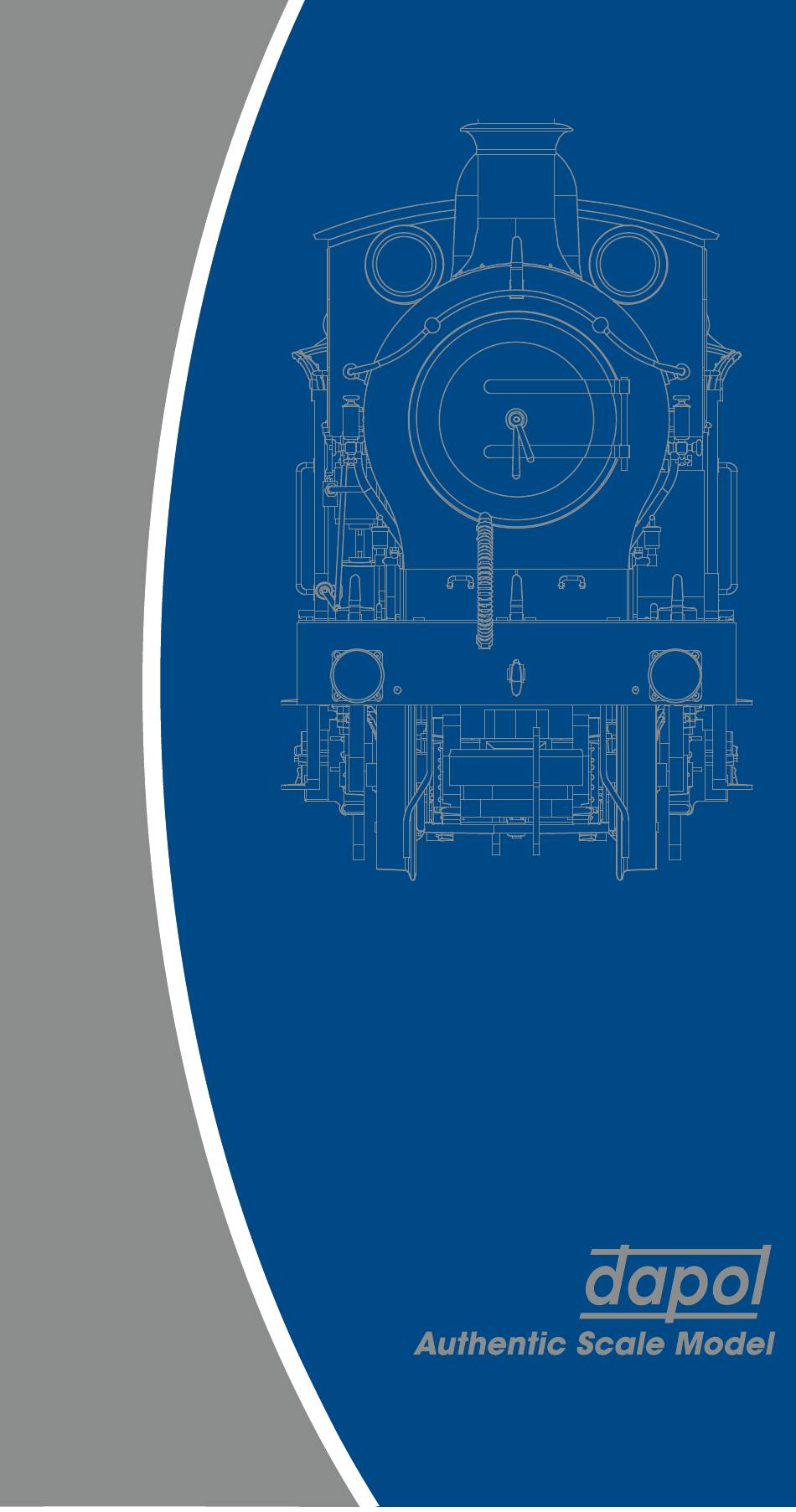

  • Page 1 Introduction SECR Wainwright D class OO Gauge Model Owner’s manual...

  • Page 3: Table Of Contents

    Contents A short history ..........4 Specification ............ 5 Quick start ............6 Unboxing ............6 Running in / First use ........7 DCC address............. 7 Decoder types (factory fitted) ......7 Maintenance ........... 8 Fitting of accessory items ........ 9 Couplings.

  • Page 4: A Short History

    SECR D class Thank you for purchasing this Dapol product. A short history of the SECR D class Designed by H. Wainwright at the turn of the century as one of the 3 standard class locomotives for the South East and Chatham Railway.

  • Page 5: Specification

    Round and rectangular cab windows • Studded and un-studded wheels • Unfitted and vacuum fitted • Other external detail variations • This manual applies to all versions of Dapol’s Wainwright D class model Page | 5 OO D class V1.0...

  • Page 6: Quick Start

    SECR D class Please read this section before you go any further! Quick start: We know you would like to have your model running as quickly as possible; please spare a moment to read this green section first. An accessory pack is supplied containing: A coupling and NEM socket •...

  • Page 7: Running In / First Use

    Operation Running in / First use: No special running in or initial lubrication is required; Dapol ‘new generation’ locomotives have been designed with care to offer many years of service with minimal maintenance. Before operating your model, first run in both directions at a low speed checking for correct operation using either DC or DCC.

  • Page 8: Maintenance

    SECR D class If operating a DCC fitted model on DC, please follow the DC operating procedure. Further information is available in the relevant sections. A DCC fitted model will ‘autodetect’ and operate on both analogue (DC) and DCC Maintenance We have designed the model using components which require little maintenance.

  • Page 9: Fitting Of Accessory Items

    SECR D class Fitting of accessory items Couplings: The model is fitted with one hook and loop style coupling to the tender and a second in the accessory pack. The Tender is fitted with an NEM coupling box, permitting easy exchange for any compatible NEM style coupling.

  • Page 10: Vacuum Pipes

    SECR D class Vacuum pipes: Are supplied with all models and are intended for fitting to models of vacuum fitted locomotives (identified by the fitting point to the left of the coupling hooks on loco and tender. The section of pipe supplied is intended to be fitted under the buffer beam as...

  • Page 11: Tender Coal Load

    SECR D class Tender Coal Load: The tender coal load is removable and simply lifts out. A detailed representation of the coal hopper profile will be found beneath, allowing you to custom fill the tender to the level you require with the material of your choice.

  • Page 12: Installing Dcc (Dcc Ready Models)

    SECR D class Installing DCC (DCC Ready models) Dapol recommend using a Dapol Imperium 18 pin decoder. The decoder chosen must offer a minimum of 1 accessory function to operate the firebox flicker. This model is fitted with Dapol’s tool-less DCC and speaker fitting system.

  • Page 13: Speaker Installation

    SECR D class Speaker installation Warning: Incorrect speaker selection may result in damage to the decoder. If using a sound decoder an 8- ohm ‘Sugar cube’ type speaker should be installed (DCC Supplies Product Code: 112965). If it is intended to fit a 2 speaker in the tender it must be correctly matched with the speaker fitted in the smokebox to...

  • Page 14: Fitting The Optional Tender Speaker

    SECR D class Optional tender speaker If required, an optional 8-ohm bass enhanced speaker can be fitted into the tender (DCC Supplies part No: 100790) Using a Phillips 00 screwdriver, remove the four cross head tender top retaining screws. If preferred, the brake rodding can be unclipped from the brake hangers first to improve access to the screws Refer to the warning on page 13 and check your...

  • Page 15: Dcc Factory Fitted Models

    SECR D class DCC Factory Fitted models Are fitted with an imperium DCC decoder (address 3) to control the locomotive. The following function keys on your controller operates special functions. Firebox flicker On/ Off DCC Sound Factory Fitted models This model is pre-fitted with a Zimo sound decoder, sugar cube speaker in the smokebox and bass enhanced speaker in the tender.
  • Page 16 SECR D class F5 Injector on/off: The injector is used when topping up the water level of the boiler. F6 Steam ejector on/off: Used for creation of a vacuum and for blastpipe draft creation. F7 Brake application/release: When first pressed the sound of a brake application will be heard, when pressed again (turned off) the sound of the brakes being released will be heard.

  • Page 17: Brake Squeal

    SECR D class locomotive halts. If F13 is turned OFF whilst stationary, the sound of coupling up is heard. If F13 is turned OFF whilst the locomotive is moving, no sound will be heard. F14 Coach door slamming on/off The door slam sound will continue until F14 is turned off.

  • Page 18: Realdrive' Feature

    These two features are added to the ‘light engine’ feature that remains active with or without the ‘RealDrive’ feature. If you are new to ‘RealDrive’ Dapol recommend testing on a clear track, preferably a loop. To activate ‘RealDrive’ set CV4 to 254, and CV309 to 7.
  • Page 19 SECR D class Braking intensity is altered via CV349. (factory setting is 27) Sharper brakes (low values in CV349), allow multiple short applications. A gentle brake (higher values in CV349) will allow a single application of the brake to bring the model to a halt.

  • Page 20: Contact Information

    Email: dapol@dccsupplies.com Website: dapolspares.dccsupplies.com Spare parts When ordering parts, please ensure you quote Dapol’s part number and the model’s running number/livery, as parts and colours will vary between versions. Additional parts to those illustrated may be available, please check for full list.
  • Page 21 SECR D class Part Number Part image Description For: LOCOMOTIVE 115717 Chimney 1 115718 Chimney 2 115719 Whistle 115720 Safety valve 115721 Buffers (Pair) (Loco & Tender) 115722 Buffer beam set 115723 Lamp bracket set (loco) Version dependent 115724 Front pony frame Assembly 115725 Lubricator set 115726...
  • Page 22 SECR D class Part Number Part image Description For: LOCOMOTIVE 115728 Smokebox door (number board) 115729 Handrail set (loco) 115730 Connecting rods 115731 Connecting rod bolt set 115732 Front pony axle set (Studded) 115733 Front driving wheel set (Studded) 115734 Rear Driving wheel set (Studded) 115735 Front pony axle set (Plain)
  • Page 23 SECR D class Part Number Part image Description For: LOCOMOTIVE 115741 Body & keeper plate screws (set) 115742 Cab (footplate) Doors Part Number Part image Description For: LOCOMOTIVE(electrical items) 115071 Motor, worm & flywheel assy 115743 Motor mounting set 115073 Loco ''motherboard PCB' &...
  • Page 24 SECR D class Part Number Part image Description For: TENDER 115747 Wheelset Studded (Single Axle) 115748 Wheelset Plain (Single Axle) 115749 Tender lamp iron set 115750 Tender footplate detail set 115751 Coal load 115752 Tender buffer beam set Part Number Part image Description For: TENDER (Electrical items) 115753...

  • Page 25: Manufacturer's Warranty

    Dapol. For these reasons, we offer a 12-month manufacturer’s repair warranty on this product in addition to your statutory rights.

  • Page 26: How To Claim

    Warranty VERY IMPORTANT: Please ensure that the place of purchase has supplied a proper printed receipt with your purchase. Without this, our service agents are unable to offer warranty service. Repairs will be charged at the prevailing rate. Your statutory rights with the place of purchase are unaffected.

  • Page 27: Terms And Conditions

    Requests for outright refund or replacement should be directed to the place of purchase. 3. In the event the model cannot be repaired, at Dapol’s sole option, you may be offered: a new replacement model (subject to availability), a refund voucher (for exchange at the place of purchase) or the return of the model in an unrepaired condition.
  • Page 28 Unauthorised attempts to repair or modify the model. 7. This warranty is not transferable and is valid only for purchases made from authorised Dapol dealers when accompanied by a proof of purchase. 8. This warranty does not cover: Used models, models purchased from private individuals or auction sites (unless a ‘Buy It Now’...
  • Page 29 Warranty 9. Dapol and its agents shall be the sole arbiters as to the warranty status of the model and their decision is final. 10. Whilst every effort will be made to protect such, Dapol and its agents shall not be liable for damage or alteration to any ‘super detailing’...
  • Page 30 Notes Page | 30 OO D class V1.0...
  • Page 31 Page | 31 OO D class V1.0...
  • Page 32 Dapol Limited. Unit 7 Gledrid Industrial Park, Chirk, Wrexham LL14 5DG Telephone: 01691 774455 Website: www.dapol.co.uk Email: sales@dapol.co.uk Spares: dapolspares.dccsupplies.com Page | 32 OO D class V1.0...
