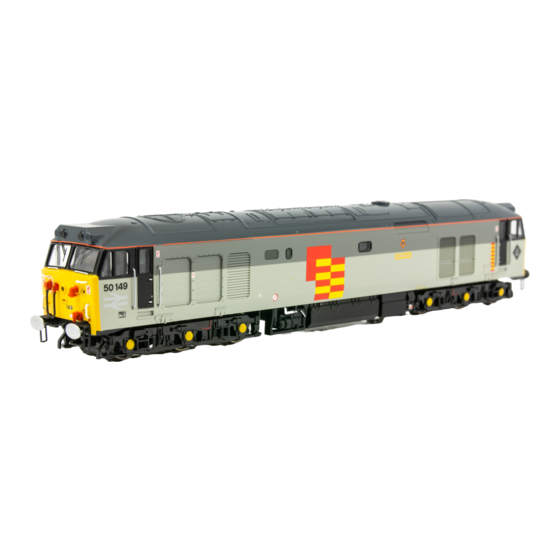

  • Page 1 Class 50 Diesel Electric Locomotive N Gauge Model Owner’s Guide...

  • Page 3: Table Of Contents

    Internal switch function ........5 Fitting a DCC decoder ........6 Maintenance............7 Spare parts............8 Section B: Dapol factory fitted DCC models..9 DCC Address ............9 Function key summary ........9 DCC Lighting modes ......... 10 Restore class 50 factory functions ....10 Section C: Dapol factory fitted DCC sound..
  • Page 4 Owner’s guide Brake application/Release (F7) ......16 Speed lock (F8) ..........16 Automatic variable-speed flange squeal (F9) .. 16 Guards whistle (F10) ........17 Fade in/Fade Out (F12) ........17 Cab Light #1 end (F13) ........17 Cab Light #2 end (F14) ........17 High horn(F15) ..........

  • Page 5: Section A: All Versions And Quick Start

    DCC Fitted guide Section A: All versions and quick start. Including factory fitted DCC and DCC sound. Quick start: We know you would like to have your model running as quickly as possible, but please spare a moment to read this section first. We also recommend reading sections 1 –...

  • Page 6: Fitting Accessories

    Dapol N gauge class 50 locomotive The models slow running will become increasingly smooth during the first 1-2 hours of use. 2. Fitting accessories ‘Shortened’ detail parts have been factory fitted to your locomotive. If you do not intend to use couplings, full-length pipes are supplied in the accessory pack.

  • Page 7: Replacement Of The Body

    DCC Fitted guide The body will lift clear of the chassis once all clips are released. There is no need to be concerned about wires as all electrical connections are mounted within the chassis. 4. Replacement of the body: The body simply clips back in place.

  • Page 8: Fitting A Dcc Decoder

    Dapol N gauge class 50 locomotive Table 1: Switch functions (Grey is factory ‘DCC ready’ default) Position 1 Position 2 Position 3 Switch Description (P1) (P2) (P3) No. 1 end Cab On when Control by On when light control leading...

  • Page 9: Maintenance

    DCC Fitted guide a. Remove body (section A-3, page 4) b. Remove DC blanking plate We suggest lifting the plate gently and evenly on alternate sides. Warning: It may come loose suddenly! c. Insert decoder, aligning the decoder plug with the socket.

  • Page 10: Spare Parts

    Dapol N gauge class 50 locomotive When applying lubrication only 1 or 2 drops of oil are required, as this will migrate through the gear train during use Caution: Do not over oil. Over oiling may damage paint finishes and/or cause build-up of dust.

  • Page 11: Section B: Dapol Factory Fitted Dcc Models

    DCC Fitted guide Section B: Dapol factory fitted DCC models. Four different lighting modes can be selected. Select whichever one is appropriate to the train you are operating: The models lighting operation is designed to emulate ‘Push-Pull’ operation, please read this guide in full as some features may not operate in the manner you are used to.

  • Page 12: Dcc Lighting Modes

    Dapol N gauge class 50 locomotive 3. DCC Lighting modes Two lighting modes are available: Light engine mode (Using F0) DCC ‘standard lighting mode. i.e. white headlights are shown in the direction of travel with red tail lights to the rear.
  • Page 13 Referencing table 3 (page 11), set the values of the two CVs of the lamps you wish to change to those under the function key which you wish to assign to that lamp. These instructions are for Dapol Imperium decoders, please consult your decoder manual for other types.
  • Page 14 Cab lamps 39 4 32 64 128 40 4 32 64 128 The decoder fitted is a Dapol Imperium decoder, full programming information can be found on our website at: Imperium.dapol.co.uk Page Class 50 N Owners Guide. V 1.0 02-04-19...

  • Page 15: Section C: Dapol Factory Fitted Dcc Sound

    DCC Sound Fitted guide Section C: Dapol factory fitted DCC sound. As the model’s lighting operation is designed to emulate ‘Push-Pull’ or ‘light loco’ operation; please read this guide in full, as some features may not operate in the manner you are used to.

  • Page 16: Sound Decoder Adjustment

    Dapol N gauge class 50 locomotive Speed lock Flange squeal F10 Guards whistle F11 Coupling/Uncoupling sound F12 Sound fade in/out F13 Cab light No. 1 end F14 Cab light No. 2 end F15 High Horn F16 Low Horn F17 Compressor...

  • Page 17: Full Description Of Functions

    DCC Sound Fitted guide reduced inertia is applied, this simulates a locomotive with no load • Push-pull / train mode (F19 & F20) For use when hauling a train, double heading or ‘top & tail’ usage. A single press of F19 or F20 can be used to configure all the lighting functions appropriately for any of these scenarios.

  • Page 18: Auto-Buffering' (F4)

    Dapol N gauge class 50 locomotive ‘Auto-buffering’ (F4) Plays the sound of ‘Buffer crash’ Passenger coach door slams (F5) Plays the sound of passenger doors closing, will be heard continuously whilst the function is ‘ON’. This can be turned off at any time to reduce the number of door slams heard.

  • Page 19: Guards Whistle (F10)

    DCC Sound Fitted guide Guards whistle (F10) Plays the sound of despatch whistle from the platform staff. Coupling and uncoupling (F11) Turning F11 on produces the sound of the coupling being placed on the hook. Pressing F11 again (F11 OFF), the sound of the coupling being removed from the hook will be heard.
  • Page 20 Dapol N gauge class 50 locomotive Cab door Slam (F22) Plays the sound of the cab door slamming. Spirax valves (F23) Plays the sound the spirax valves popping. Air Dump (F24) Plays the sound of the air being released from the system.

  • Page 21: Section D: Spare Parts

    Dapol N gauge class 50 locomotive Section D: Spare Parts A range of spares are available from DCC Supplies Ltd. Please note that although a full set of parts are initially stocked, over the lifetime of the model certain items may become unavailable due to demand.
  • Page 22 Dapol N gauge class 50 locomotive Page Class 50 N Owners Guide. V 1.0 02-04-19...
  • Page 23 Warranty Information Page Class 50 N Owners Guide. V 1.0 02-04-19...

  • Page 24: Section E: Manufacturer's Warranty

    Dapol. For these reasons, we offer a 12-month manufacturer’s repair warranty on this product in addition to your statutory rights.

  • Page 25: How To Claim

    Warranty Information How to claim: Locate the proof of purchase (copies acceptable) • Year 2 claims: Return with validated 2 year certificate • (or service fee if within 13 months of purchase). Contact our service agent for a Job ID. •...

  • Page 26: Terms And Conditions

    Requests for outright refund or replacement should be directed to the place of purchase. 2. In the event the model cannot be repaired, at Dapol’s sole option, you may be offered: a new replacement model (subject to availability), a refund voucher (for exchange at the place of purchase) or the return of the locomotive in an unrepaired condition.

  • Page 27: Contact Information

    8. Dapol and its agents shall be the sole arbiters as to the warranty status of the model and their decision is final. 9. Whilst every effort will be made to protect such, Dapol and its agents shall not be liable for damage or alteration to any ‘super detailing’...
  • Page 28 Notes Page Class 50 N Owners Guide. V 1.0 02-04-19...
  • Page 29 Notes...
  • Page 30 Notes...
  • Page 31 Notes...
  • Page 32 Notes Dapol Limited. Unit 7 Gledrid Industrial Park, Chirk, Wrexham LL14 5DG Telephone: 01691 774455 Website: www.dapol.co.uk Email: sales@dapol.co.uk...
