Introduction

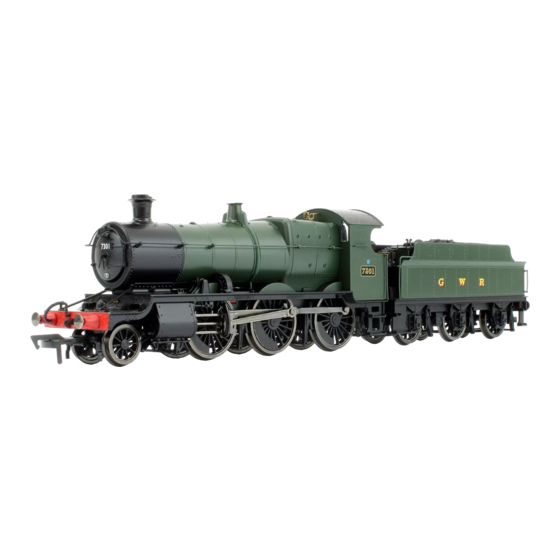

GWR class 4300 2-6-0 Mogul
OO Gauge Model
Owner's manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GWR class 4300 2-6-0 Mogul and is the answer not in the manual?

Questions and answers

Related Manuals for DAPOL GWR class 4300 2-6-0 Mogul

Summary of Contents for DAPOL GWR class 4300 2-6-0 Mogul

  • Page 1 Introduction GWR class 4300 2-6-0 Mogul OO Gauge Model Owner’s manual...

  • Page 3: Table Of Contents

    Contents A history of the GWR Mogul ..... 1 Specification ..........2 Unboxing ..........3 Accessory pack ........4 Operation ..........4 Running in / First use ........ 4 DCC address ......……… 4 Maintenance ......... 4 Lubrication ........... 5 Fitting of accessory items ......

  • Page 4: A History Of The Gwr Mogul

    History Thank you for purchasing this Dapol product. A history of the GWR Mogul A total of 342 locomotives were built by the Great Western Railway (GWR) at its Swindon works between 1911 & 1932. The 4300 class soon became known as ‘Moguls’ (after the wheel formation of 2-6-0).

  • Page 5: Specification

    • Close coupling arrangement for tender coupling • Highly detailed body and cab interior • Firebox flicker effect Dapol are producing models from the following GWR build lots (at the time of writing) Lot number Loco Numbers 5390 – 6317 6318 –...

  • Page 6: Unboxing

    Quick start Please read this section before you go any further! Quick start: We know you would like to have your model running as quickly as possible; please spare a moment to read this section first. • An accessory pack containing a coupling and PCB tool is supplied.

  • Page 7: Accessory Pack

    GWR class 43xx An accessory pack is supplied with your model containing the following items: (See fitting of accessory items for further detail) • 1 x Hook and loop coupling • 1 x Smokebox door / PCB tool Operation: Running in / First use : No special running in or initial lubrication is required;...

  • Page 8: Lubrication

    GWR class 43xx drive train and gear box are lubricated after every 100 hours running using a light synthetic lubricating oil such as Dapoil or Locolube™. Warning: Mineral oil types or thicker oils may damage your locomotive paint finish or components and invalidate your warranty.

  • Page 9: Attaching The Tender To The Locomotive

    Dapol recommend a Dapol Imperium decoder. The decoder chosen must offer a minimum of 2 functions. This model is fitted with Dapol’s toolless DCC and speaker fitting system. To install a decoder and/or optional speaker follow these steps: Page | 6...

  • Page 10: Speaker Installation

    GWR class 43xx 1) Remove the smokebox door. This is a friction fit, (use the wedge end of the smokebox door tool under the hinge if required.) The smokebox door tool is made from soft plastic, which avoids scratching the paint finish. 2) Using the ‘hook’...

  • Page 11: Fitting A Tender Mounted Speaker

    GWR class 43xx the speaker fitted in the smokebox to produce a total impedance suitable for your decoder’s amplifier. Incorrect speaker selection may result in damage to the decoder. 1) The speaker enclosure is removed by unclipping (it is held by 2 clips). 2) After fitting the sealing gasket, drop the sugar-cube speaker into place with the...
  • Page 12 GWR class 43xx Refer to the warning on page 11 and check your chosen decoders manual to carefully select the additional speaker. For example: Using 2 x 8 ohm speakers will produce a decoder load of 4 ohms. 1) Using a Phillips 00 screwdriver, remove the four cross head tender top retaining screws.

  • Page 13: Dcc Sound Factory Fitted Models

    GWR class 43xx DCC Factory Fitted models Are fitted with an imperium DCC decoder (address 3) to control the locomotive. The following function keys on your controller operates special functions. Firebox flicker On/ Off DCC Sound Factory Fitted models This model is pre-fitted with a Zimo sound decoder, sugar cube speaker in the smokebox and bass enhanced speaker in the tender.

  • Page 14: Automatic Sounds

    GWR class 43xx stop and the firebox door will be heard to close, as the same time as the flicker extinguishes. F5 Injector on/off: The injector is used when topping up the water level of the boiler. F6 Steam ejector on/off: Used for creation of a vacuum and for blastpipe draft creation.

  • Page 15: Chuff Intensities

    With F9 ON, even lighter chuffs will be produced, with more ‘cut-off’. Spare parts When ordering parts, please ensure you quote Dapol’s part number and the model’s running number/livery, as parts and colours will vary between versions. Additional parts to those illustrated may be available, please check for full list.
  • Page 16 GWR class 43xx Spare parts Page | 13 OO Mogul V1.0...
  • Page 17 GWR class 43xx Spare parts Page | 14 OO Mogul V1.0...
  • Page 18 GWR class 43xx Spare parts Page | 15 OO Mogul V1.0...
  • Page 19 GWR class 43xx Spare parts Page | 16 OO Mogul V1.0...

  • Page 20: Description

    Dapol. For these reasons, we offer a 12-month manufacturer’s repair warranty on this product in addition to your statutory rights.

  • Page 21: How To Claim

    Warranty VERY IMPORTANT: Please ensure that your dealer has supplied a proper printed receipt with (Cont.) your purchase. Without this, our service agents are unable to offer warranty service. Repairs will be charged at the prevailing rate. Your statutory rights with the place of purchase are unaffected.

  • Page 22: Terms And Conditions

    Requests for outright refund or replacement should be directed to the place of purchase. 3. In the event the model cannot be repaired, at Dapol’s sole option, you may be offered: a new replacement model (subject to availability), a refund voucher (for exchange at the place of purchase) or the return of the model in an unrepaired condition.
  • Page 23 9. Dapol and its agents shall be the sole arbiters as to the warranty status of the model and their decision is final. 10. Whilst every effort will be made to protect such, Dapol and its agents shall not be liable for damage or alteration to any ‘super detailing’...

  • Page 24: Contact Information

    Contacts Contact information: Dapol Customer service Telephone: 01691 774455 Email: sales@dapol.co.uk Website: www.dapol.co.uk Service and Spares Centre: DCC Supplies Ltd. Telephone: 01905 621999 Email: dapol@dccsupplies.com Website: dapolspares.dccsupplies.com Page | 21 OO Mogul V1.0...
  • Page 25 Notes Page | 22 OO Mogul V1.0...
  • Page 26 Notes Page | 23 OO Mogul V1.0...
  • Page 28 Notes Dapol Limited. Unit 7 Gledrid Industrial Park, Chirk, Wrexham LL14 5DG Telephone: 01691 774455 Website: www.dapol.co.uk Email: sales@dapol.co.uk Spares: dapolspares.dccsupplies.com Page | 25 OO Mogul V1.0...
