Bedienungsanleitung
Sport-Thieme Ballkompressor
„Mobil"
Vielen Dank, dass Sie sich für ein Sport-Thieme Produkt entschieden haben!
Damit Sie viel Freude an diesem Produkt haben und die Sicherheit gewährleistet ist, sollten Sie diese
Anleitung vor dem Gebrauch zunächst vollständig durchlesen. Bewahren Sie die Anleitung gut auf.
Für Fragen und Wünsche stehen wir Ihnen gerne zur Verfügung.
Deutsch: Seiten 1–5
English: pages 6 to 10

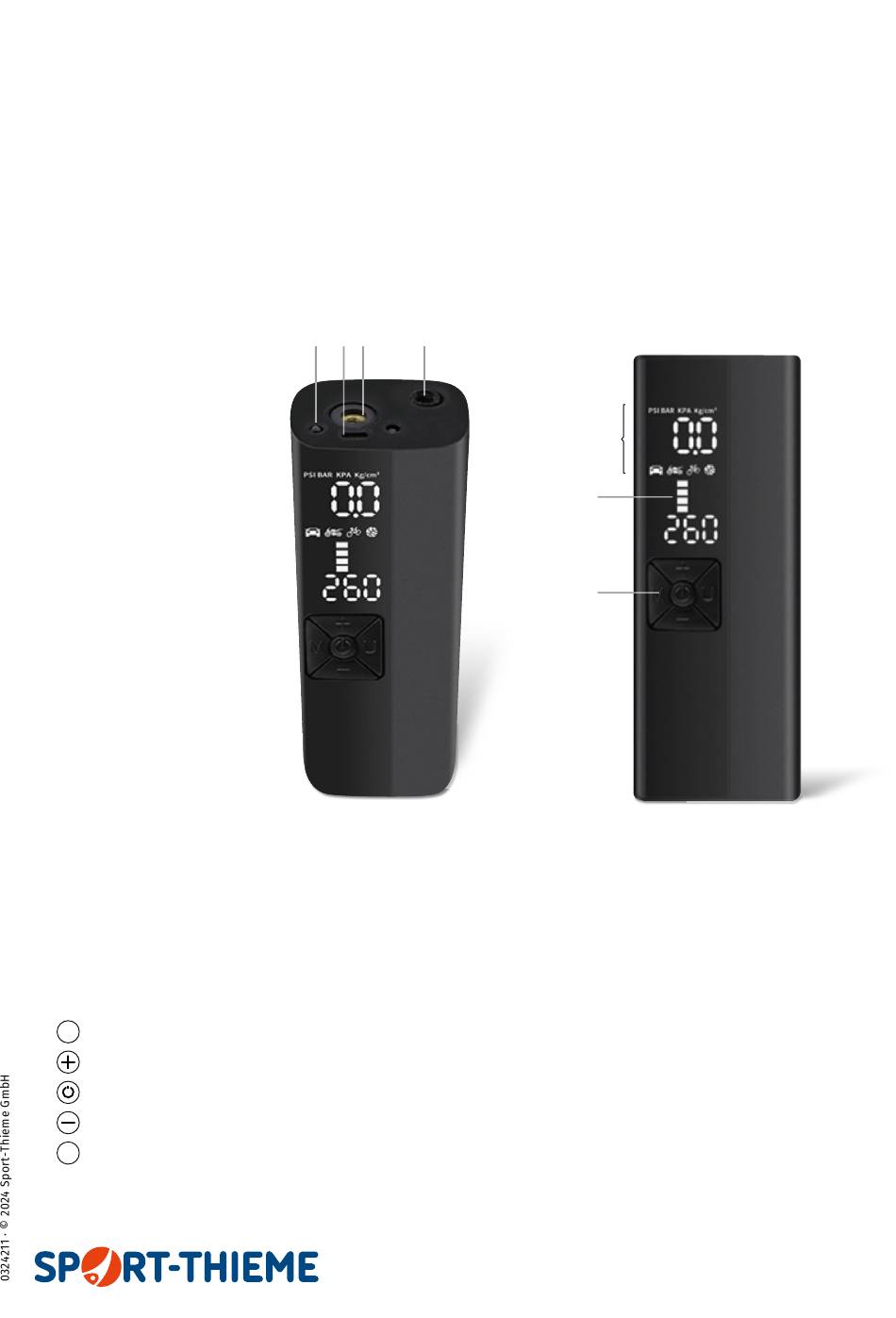

Tasten-Legende:
1. Aufbewahrungsbehälter für Aufpumpschlauch
2. Anschluss für Aufpumpschlauch
3. USB-C-Ladeanschluss
4. LED-Beleuchtung
5. Display
6. Batteriekapazität
7. Tastenfeld:
U
Einheit/Beleuchtung
Parametereinstellung
Ein/Aus/Bestätigung
Parametereinstellung
M
Modus
4.
3.
2.
1.
Produktparameter:
• Lagertemperatur: –20 bis 60 °C
• Produktgröße: 153x62x45 mm
• Ladespannung: DC 5 V/2 A
• LED-Beleuchtung: 2 LED-Leuchten
• Betriebstemperatur: –10 bis 45 °C
• Größe des Aufpumpschlauchs: Länge des
Teileliste:
• 1 Gerät
• 1 Farbbox
• 3 Ventiladapter
• 1 Netzkabel
• 1 Aufpumpschlauch
• 1 Handbuch
Sport-Thieme GmbH
Tel. 05357 18181
5.
6.
7.
Aufpumpschlauchs 150 mm (inkl. Luftdüse)
·
38367 Grasleben
·
Fax 05357 18190
Art.-Nr. 3779604
·
sport-thieme.de
·
info@sport-thieme.de
