Montageanleitung
Art.-Nr. 2236197
3132207

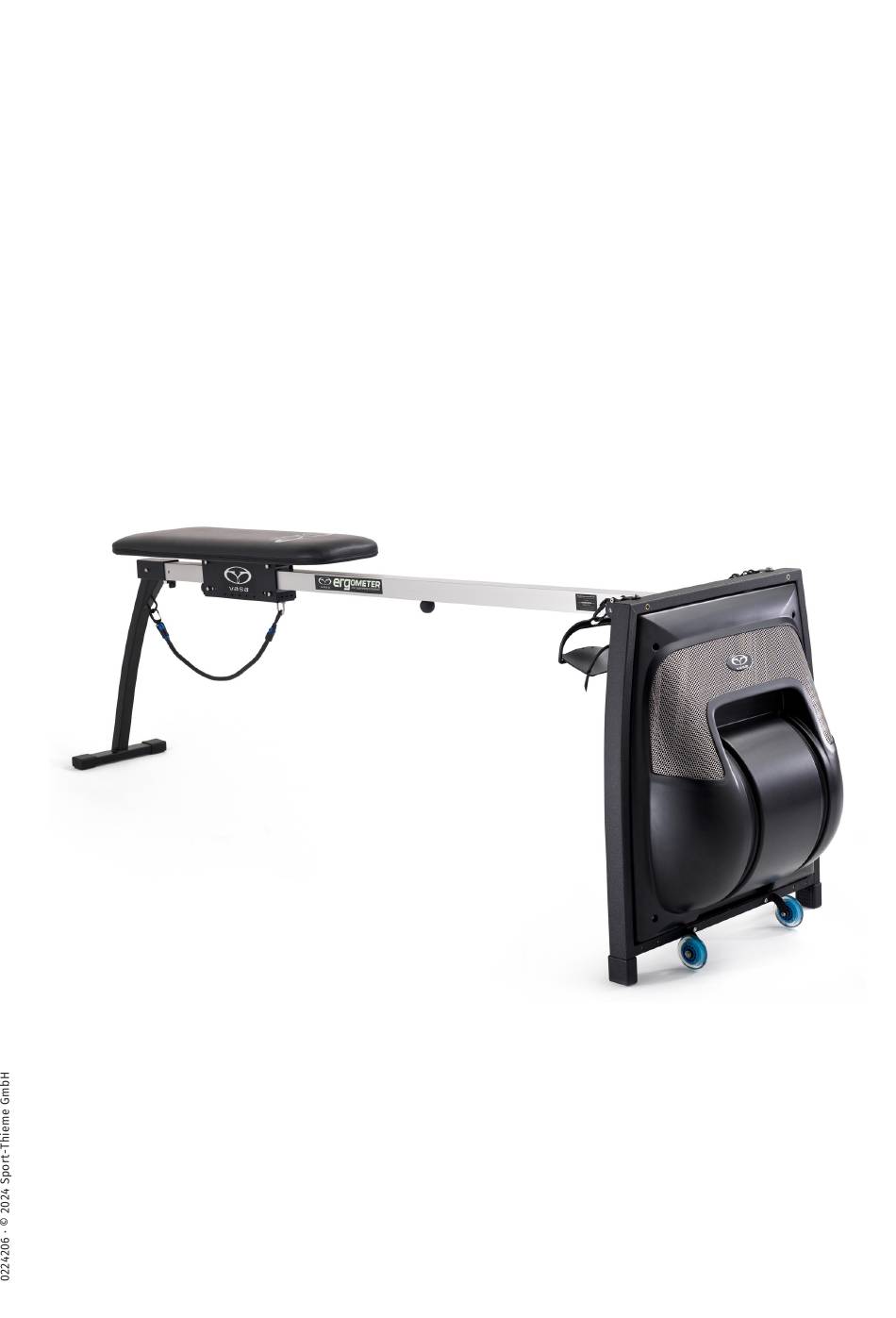

Vasa Schwimmergometer
Vielen Dank für Ihren Kauf!
Damit Sie viel Freude an diesem Produkt haben und die Sicherheit gewährleistet ist, sollten Sie diese
Gebrauchsanleitung vor dem Gebrauch zunächst vollständig durchlesen. Bewahren Sie
die Anleitung gut auf. Für Fragen und Wünsche stehen wir Ihnen gerne zur Verfügung.
Deutsch – Seite 1–12
English – page 13–24

Advertisement

loading

Summary of Contents for Sport-thieme Vasa Swim Bench 2236197

  • Page 1 Montageanleitung Art.-Nr. 2236197 3132207 Vasa Schwimmergometer Vielen Dank für Ihren Kauf! Damit Sie viel Freude an diesem Produkt haben und die Sicherheit gewährleistet ist, sollten Sie diese Gebrauchsanleitung vor dem Gebrauch zunächst vollständig durchlesen. Bewahren Sie die Anleitung gut auf. Für Fragen und Wünsche stehen wir Ihnen gerne zur Verfügung. Deutsch –...
  • Page 2 Montageanleitung zu Art.-Nr. 2236197, 3132207 Teil 1 - Montage 1.1 VASA Ergometer – Teilebeschreibungen TEILNAME TEILENUMMER 1. Frontmontage VE-1 2. Monorail 16AL-E 3. Bank 4. Sitzwagen 3-VT0796 5. Zugschnur VE-TETHER 6. Hintere Stütze VE-2 7. Leistungsmesser VM-1 8. Dämpfertür VE1-DD 9.
  • Page 3 Montageanleitung zu Art.-Nr. 2236197, 3132207 1.2 - Montage Ihres Vasa Ergometer Entpacken und montieren Sie Ihren neuen Vasa Ergometer in der spezifischen Reihenfolge, die nachste- hend beschrieben ist (entpacken und montieren Sie die Teile aus Box 1 und Box 2 wie angegeben, anschließend entpacken und befestigen Sie das vordere Ergometer Bauteil aus Box 3.
  • Page 4 Montageanleitung zu Art.-Nr. 2236197, 3132207 Schritt 2: Bank an Sitzwagen montieren 2.1. Legen Sie die gepolsterte Bank auf den Boden, sodass die Seite mit den vier oder sechs Löchern (mit eingesetzten Metallmuttern in der Bank) nach oben zeigt. Wenn Sie sechs Löcher haben, montieren Sie den Sitzwagen an die vier Löcher näher am hinteren Teil der Bank.
  • Page 5 Montageanleitung zu Art.-Nr. 2236197, 3132207 Schritt 3: Montage der Bank auf Monorail 3.1. Legen Sie die Bank (mit dem Sitzwagen nach oben) neben den Monorail auf den Boden. 3.2. Halten Sie den Monorail waagerecht, wobei der T-Nutschlitz nach oben zeigt. Führen Sie den Mono- rail langsam zwischen den ersten Satz Rollen hindurch (Abbildung A).
  • Page 6 Montageanleitung zu Art.-Nr. 2236197, 3132207 Schritt 4: Montage der hinteren Stütze 4.1. Lösen Sie die Madenschraube an der Ecke des Kopfes der hinteren Stütze (Abbildung A) mit dem 3/16“-Innensechskantschlüssel. 4.2. Halten Sie die hintere Stütze verkehrt herum und schieben Sie die Halterung über den hinteren Abschnitt des Monorails (Abbildung B).
  • Page 7 Montageanleitung zu Art.-Nr. 2236197, 3132207 Schritt 5: Auspacken des vorderen Ergometer Bauteils (Box 3) 5.1. Legen Sie Box 3 auf „SEITE 1“ (Abbildung A). 5.2. Öffnen Sie das untere Ende der Box (Abbildung B). ÖFFNEN SIE NICHT DEN OBEREN TEIL DER BOX. Ent- fernen Sie den Kartoneinsatz und stellen Sie ihn beiseite.
  • Page 8 Montageanleitung zu Art.-Nr. 2236197, 3132207 WICHTIG: Wenn Sie Zubehör gekauft haben, das am Monorail installiert werden muss, tun Sie dies bitte, bevor Sie mit Schritt 6 fortfahren. Diese Zubehörteile enthalten eine separate Montageanleitung. Zum Beispiel Kajak-Fußstütze, Erg Trainer Strap Bar - Deluxe, ROM Knob Kit, etc. Schritt 6: Befestigen Sie das vordere Ergometer Bauteil am Monorail und fügen Sie die Radhalterung hinzu 6.1.
  • Page 9 Montageanleitung zu Art.-Nr. 2236197, 3132207 Schritt 7: Befestigen von Swim Paddles und Exercise Handles am Zugseil 7.1. Wählen Sie die Anbaugeräte, die Sie für Ihr Training verwenden möchten: Swim Paddles, Exercise Handles oder andere optionale Anbaugeräte. 7.2. Nehmen Sie den Zugseilclip (Abbildung A) an jedem Ende der Zugseile und befestigen Sie das gewünschte Anbaugerät am Verbindungslauf/Ring (Abbildung B).
  • Page 10 Montageanleitung zu Art.-Nr. 2236197, 3132207 Schritt 8: Einsetzen der Batterien in das Power Meter VORSICHT: Das Power Meter ist eine empfindliche Einheit. Bitte behandeln Sie sie jederzeit vorsichtig. 8.1. Entnehmen Sie den Power Meter aus der kleinen Box, die sich in Box 3 befindet. 8.2.
  • Page 11 Montageanleitung zu Art.-Nr. 2236197, 3132207 Schritt 10: Power Meter – Installation und Einstellung HINWEIS: Das Power Meter kann sich automatisch einschalten, wenn die Kabel angeschlossen sind. Bevor Sie mit Ihrem Training beginnen, schalten Sie den Monitor AUS und warten Sie einen Moment bis Sie einen Piepton hören.
  • Page 12 Montageanleitung zu Art.-Nr. 2236197, 3132207 1-3. Sicherheitsprüfliste nach der Montage Bitte überprüfen Sie die folgenden Schritte, um sicherzustellen, dass Ihr Vasa Ergometer korrekt mon- tiert ist und sicher verwendet werden kann (überprüfen Sie die Vollständigkeit). VORDERSEITE 1. Linsenkopfschraube und Mutter sind am Kopf der vorderen Stütze und am Monorail montiert. 2.
  • Page 13 Operating/assembly instructions Prod. code 2236197 3132207 Vasa Swim Bench Thank you for your purchase! Please read the following notes carefully before use so you can enjoy this product safely and keep these instructions for future reference. If you have any questions, our team is here for you. Deutsch –...
  • Page 14 Assembly instructions for Prod.code 2236197, 3132207 PART 1 - ASSEMBLY 1.1 VASA ERGOMETER – PARTS DESCRIPTIONS PART NAME PART NUMBER 1. Front Assembly VE-1 2. Monorai 16AL-E 3. Bench 4. Seat Carriage 3-VT0796 5. Tether Cord VE-TETHER 6. Rear Stanchion VE-2 7.
  • Page 15 Assembly instructions for Prod.code 2236197, 3132207 1.2 - ASSEMBLING YOUR VASA ERGOMETER SWIM ERG ASSEMBLY VIDEO View under the FAQ tab on this page: https://vasatrainer.com/product/swim-ergometer-swimming-machine/ Unpack and assemble your new Vasa Ergometer in the specific order outlined below (unpack and assemble the parts from Box 1 and Box 2 as instructed, then you will unpack and attach the front assembly from Box 3).
  • Page 16 Assembly instructions for Prod.code 2236197, 3132207 STEP 2: ASSEMBLE BENCH TO SEAT CARRIAGE 2.1. Lay the padded bench on the floor so the side with the four or six holes (with threaded metal nuts inside the bench) is facing up. If you have six holes, you will mount the seat carriage to the four holes closer to the rear of the bench.
  • Page 17 Assembly instructions for Prod.code 2236197, 3132207 STEP 3: PADDED BENCH ASSEMBLY ONTO MONORAIL 3.1. Lay the bench assembly (with the seat carriage up) on the floor next to the monorail. 3.2. Keep the monorail level with the T-slot channel facing up. Slowly feed the monorail between the first set of rollers (Figure A).
  • Page 18 Assembly instructions for Prod.code 2236197, 3132207 STEP 4: MONORAIL INTO THE REAR STANCHION ASSEMBLY 4.1. Loosen the socket set screw on the corner of the rear stanchion head (Figure A) using the 3/16” hex key Allen wrench. 4.2. Hold the rear stanchion assembly upside down and slide the bracket over the rear section of the monorail (Figure B).
  • Page 19 Assembly instructions for Prod.code 2236197, 3132207 STEP 5: UNPACKING FRONT ERGOMETER ASSEMBLY (BOX 3) 5.1. Lay the front end box down on ‘SIDE 1’ (Figure A). 5.2 Open bottom end of box (Figure B). DO NOT OPEN TOP OF BOX. Remove the cardboard insert & set aside.
  • Page 20 Assembly instructions for Prod.code 2236197, 3132207 IMPORTANT: If you purchased an accessory that needs to be installed on the Monorail, do so before con- tinuing to STEP 6. Those accessories will include a separate assembly sheet in the front of this manual. i.e Kayak Foot Brace, Erg Trainer Strap Bar - Deluxe, ROM Knob Kit, etc.
  • Page 21 Assembly instructions for Prod.code 2236197, 3132207 STEP 7: ATTACHING PADDLES OR HANDLES TO DRIVE CORD 7.1. Choose which attachment you would like to use for your workout: swim paddles, exercise handles, or other optional attachment. 7.2. Take the drive cord clip (Figure A) on each end of the drive cords, and snap desired attachment into the connection loop/ring (Figure B).
  • Page 22 Assembly instructions for Prod.code 2236197, 3132207 STEP 8: INSTALLING BATTERIES IN THE POWER METER CAUTION: The Power Meter is a sensitive unit. Please handle with care at all times. 8.1. Locate the Power Meter in the small box packed inside BOX 3. 8.2.
  • Page 23 Assembly instructions for Prod.code 2236197, 3132207 STEP 10: POWER METER - INSTALLING & ADJUSTING NOTE: The Power Meter may automatically turn ON when the cables are connected. Before beginning your workout, turn the monitor OFF and wait a second or two until you hear a beep. Push the ON button to power back on and begin your workout.
  • Page 24 Assembly instructions for Prod.code 2236197, 3132207 1-3. POST ASSEMBLY SAFETY CHECKLIST Please review the steps below to assure that your Vasa Ergometer is assembled correctly and ready for safe use (check if complete). FRONT 1. Button head screw and nut are assembled on front stanchion head and monorail. 2.
