Power Connections
The only method of powering a VIP-9815A
Network Interface is via a Power over Ethernet
(PoE) switch or power injector meeting the
802.3af specification.

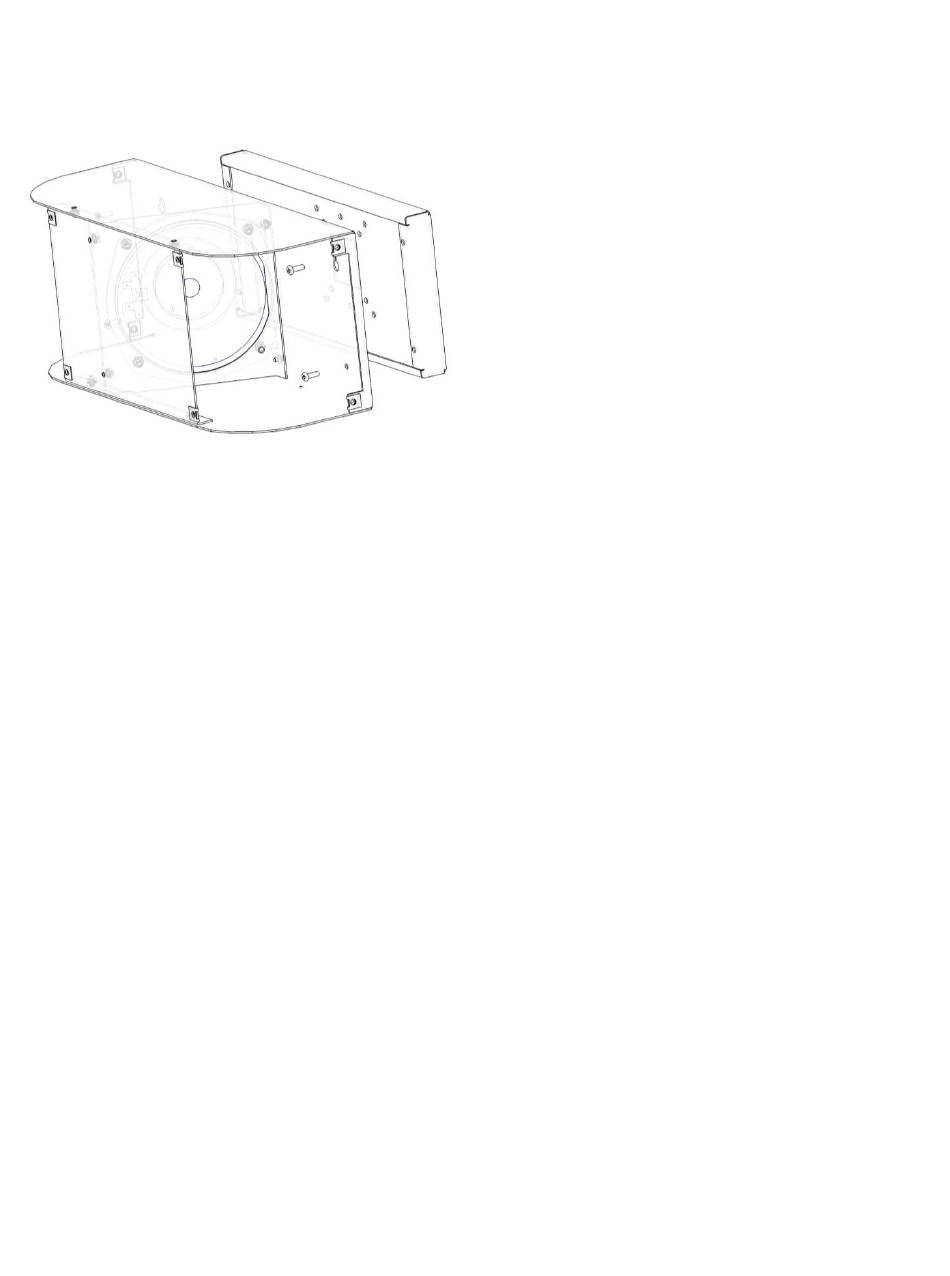

Figure 1. Mounting
Network Connection
The VIP-9815A has one RJ-45 Network
connector. Insert the RJ45 cable connector into
the RJ45 network jack mounted inside the
speaker housing before attaching the front grille
to the speaker housing.
Signal Connections
Signal connections between the network
interface and the speaker are pre-wired from the
factory. If the speaker connections have been
removed, connect the speaker leads to the
Speaker (+) and Speaker (-) screw terminals on
the network interface.
Status Indicator Lights
The VIP-9815A has 2 status indication lights
located on the network jack:
Green LED: (Link) Indicates Ethernet
connection when illuminated.
Yellow LED: (Activity) Indicator flashes to
indicate network activity.
Setup
Information specific to your application will need
to be programmed into the VIP-9815A using a
computer. The PC used for programming
should be connected to the same subnet as the
VIP-9815A.
Setup will be done using the IP Solutions Setup
Tool. The IP Solutions Setup Tool may be
downloaded from the Valcom website at
www.valcom.com/vipsetuptool.
TECHNICAL ASSISTANCE
Assistant is available from the factory. Call
(540) 563-2000 and press 1 for Technical
Support or visit our website at
http://www.valcom.com
Valcom equipment is not field repairable.
Valcom, Inc. maintains service facilities in
Roanoke, VA. Should repairs be necessary,
attach a tag to the unit clearly stating company
name, address, phone number, contact person
and the nature of the problem. Send the unit to:
Repair and Return Dept.
WARRANTY
Warranty information may be found on our
website at www.valcom.com/warranty.
3
Valcom, Inc.
5614 Hollins Road
Roanoke, VA 24019
947837
