Service handbook

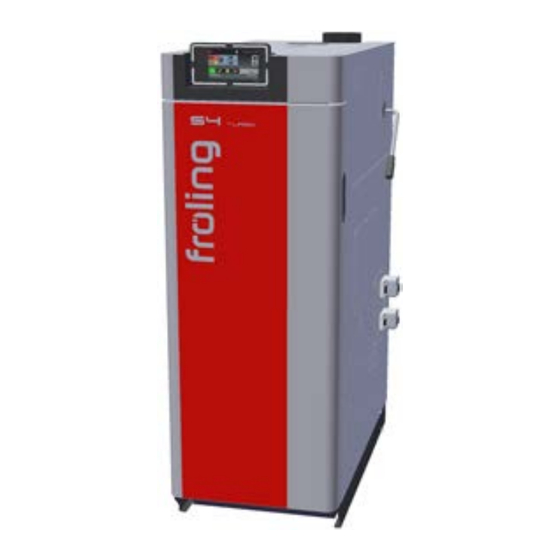

Lambdatronic S 3200 - S4 Turbo
Core module version 55.04 - Build 05.21 | Touch control version 60.01 Build 01.39
Translation of original German version of service handbook for technicians.
Read and follow all instructions and safety instructions.
All errors and omissions excepted.
B1740023_en | Edition 20/03/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lambdatronic S 3200 and is the answer not in the manual?

Questions and answers

Related Manuals for Fröling Lambdatronic S 3200

Summary of Contents for Fröling Lambdatronic S 3200

  • Page 1 Service handbook Lambdatronic S 3200 - S4 Turbo Core module version 55.04 - Build 05.21 | Touch control version 60.01 Build 01.39 Translation of original German version of service handbook for technicians. Read and follow all instructions and safety instructions.

  • Page 2: Table Of Contents

    4.3.4 Solar - Service ........................... 48 4.3.5 Solar - Heat meter........................49 4.4 Buffer tank............................. 50 4.4.1 Buffer tank - Status ........................50 4.4.2 Buffer tank - Temperatures ......................51 B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 3 5.2 Pump stall protection..........................81 5.3 Boiler operating statuses........................81 5.4 Determination of the quantity of heat ....................82 5.4.1 Assembly Information ........................ 82 5.4.2 Functioning and configuration....................82 5.5 Setting times ............................85 B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 4 5.7.1 Carrying out a software update on the boiler controller ............. 90 5.7.2 Carrying out a software update on the touch control ..............92 5.7.3 Finishing a software update ....................... 93 5.8 USB data recording..........................94 B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 5: General

    Insulate the flue gas pipes and do not touch them during operation The information on safety, standards and guidelines in the assembly and operating instructions for the boiler should also be observed! B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 6: Power Connection And Wiring

    KM-06 (Breitbandsonde) Mains fuse KM-30 KM-07 (Mischer 2) (siehe Tabelle ...) 5V/P3 KM-29 KM-08 (Netz) (siehe Tabelle ...) KM-28 5V/P3 (Pumpe 1) KM-09 (Verriegelung) KM-10 (STB) KM-27 KM-11 (Saugzug) (NOT-HALT) B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 7 KM-26 PWM / 0-10V pump 1 KM-27 Induced draught fan Connection cable 3 x 1.5 mm for power supply, Connection cable 3 x 0.75 mm for analysis of current speed B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 8: Mains Connection

    NOTICE! Flexible sheathed cable must be used for the wiring; this must be of the correct size to comply with applicable regional standards and regulations Boiler type Electric fuses Fuse type S4 Turbo C16A S4 Turbo F C16A B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 9: Connecting The Outside Temperature Sensor

    In the delivered state, the outside temperature sensor is read in by the core module ("KM-19 / outside temperature sensor" connection). Alternatively, the outside temperature sensor can be connected to an additional heating circuit module. Ü "Heating circuit module" [} 15] B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 10: Fra Room Temperature Sensor

    Handwheel… Allows you to adjust the temperature by +/- 3°C IMPORTANT! Refer to the supplied assembly instructions for more detailed explanations on connecting and operating the FRA room temperature sensor. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 11: Connecting A Circulating Pump To The Core Module

    Ä Make sure that the cables are configured correctly (polarity) in accordance with the connection diagram of the pump! r Set control of the pump in the relevant menu to “Field pump / PWM” or “Field pump / 0-10V” B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 12 Please note that the minimum speed may need to be adjusted on some pumps (default setting: 30%). FRKEM29 AO-P1 r Connect pump to output “Pump 1” of the core module r In the relevant menu, set the pump control to “Pump without control signal” B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 13: Connecting A Circulating Pump With Valve To The Core Module

    Ä Make sure that the cables are configured correctly (polarity) in accordance with the connection diagram of the pump! r In the relevant menu, set the activation of the pump to “Field pump PDM + valve” or to “Field pump 0-10V + valve” B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 14 Connect the phase (L) for switching over the valves together with the phase (L) for the pump to the switched output of the relay r In the relevant menu, set the pump control to “HE pump without control signal” B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 15: Heating Circuit Pump 0 / Burner Relay

    Connection / Name Note HE-01 Connection with cable – LIYCY paired 2x2x0.5; HE-02 Ü "Connecting the bus cable" [} 28] Caution! CAN L and CAN H must not be connected to +U B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 16 4 x 0.75 mm , max. 0.15A / 230V HE-12 Mixing valve 2 1. YMM to ÖVE-K41-5 or H05VV-F to DIN VDE 0881-5 Fuses 6.3 AT HE-09, HE-10, HE-11, HE-12 B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 17: Hydraulic Module

    Depending on the type of pump, the phase (L) is either connected to the relay output or triac output. Connecting a circulating pump to the hydraulic module 1. YMM to ÖVE-K41-5 or H05VV-F to DIN VDE 0881-5 B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 18 Ä Make sure that the cables are configured correctly (polarity) in accordance with the connection diagram of the pump! r Set control of the pump in the relevant menu to “Field pump / PWM” or “Field pump / 0-10V” B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 19 Connect the power supply for the pump to output “Pump 1” or “Pump 2” and use the triac output for phase r In the relevant menu, set the pump to “Pump without control signal” B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 20 ) from NOC on the relay to the pump using terminal “S/S” as the release contact r Connect power supply at pump connector r In relevant menu, set pump to “Field pump PDM + valve” or “Field pump 0-10V + valve” B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 21 Ä Make sure that the cables are configured correctly (polarity) in accordance with the connection diagram of the pump! r In the relevant menu, set the activation of the pump to “Field pump PDM + valve” or to “Field pump 0-10V + valve” B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 22 Phase (L) for switching the valve and connecting neutral conductor (N) to output “Pump 1” or “Pump 2” using the relay output for phase (L) r Connect the phase (L) for continuous supply (switches the valve back to the initial position) to the power supply at terminal “L” B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 23: Return Mixer Module

    Patch cable CAT 5 RJ45 SFTP 1:1 configuration, included in delivery RL-05 1. YMM to ÖVE-K41-5 or H05VV-F to DIN VDE 0881-5 Fuses 6.3 AT RL-01 Connection example Balancing valve Firewood-/ Return mixing valve Dual fuel boiler (Return mixer module) B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 24: Ignition Expansion

    Connection cable 2 x 0.75 mm², 24V looped through ZE-06 Core module Use the ribbon cable supplied 1. YMM to ÖVE-K41-5 or H05VV-F to DIN VDE 0881-5 Fuses 10 AT ZE-04 B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 25 Power connection and wiring | 2 Connection diagram Lock Lock Use the cable supplied for the connection to the terminal block Core module Hydraulic module Power supply Mains plug Main switch B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 26: Analogue Module

    NOTICE! The inputs and output are pre-configured, so it is essential the following addressing is complied with. Standard configuration – Analogue module with address 0 Input Designation External power specification (0-10V) B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 27 When used in a firewood boilers, connect the 24 V supply as follows: 24 V power supply KM-14 KM-15 - brown: 24 V (+) to core module KM 14 - blue: 24 V (-) to core module KM 15 B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 28: Bus Connection

    For the bus connections between the individual modules, cable type LIYCY paired 2x2x0.5 should be used. The connection to the 5-pin plugs should be carried out according to the following diagram: Braided shield Braided shield white white green green yellow yellow brown brown B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 29: Setting End Jumpers

    If the contacts at the base of the end jumper are not bridged (image left), it is referred to as “not set". In this case there is no bus termination. If the contacts are closed (image right), the end jumper is set and the bus connection is terminated. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 30: Setting The Module Address

    4.1 – 4.2 13 – 14 5.1 – 5.6 5.1 – 5.2 15 – 16 6.1 – 6.6 6.1 – 6.2 17 – 18 7.1 – 7.6 7.1 – 7.2 B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 31: Potential Equalisation / Potential Separation

    Instead of the potential equalisation, a Fröling bus repeater can be used in the bus connection line to the next building. The potential separation (galvanic isolation) allows the bus network to be split into two separate sub- networks. Bus side A Bus side B Expansion Bus repeater module B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 32: Connection Information According To Pump Types

    Connect the control cable to the PDM output on the board, making sure that the polarity is correct: - brown wire to earth - white wire to plus Do not use the other two wires (blue, black) and insulate B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 33: Initial Start-Up With Settings Wizards

    Check for loose or uninsulated wires in the terminal boxes of the pumps, mixing valve and switch valve, which could cause a short-circuit 3.1.3 System check r Check that the main fuse for the boiler has a sufficient rated amperage Ü "Mains connection" [} 8] B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 34: General Information About The Settings Wizard

    Connect Setting parameters required for the boiler to use the “froeling-connect.com” online control (IP address, display password, etc.) Heating up program Activation and selection of a heating up program. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 35: Switching On For The First Time

    Then the basic screen of the touch display is shown. 1: Selection of the controller language 2: Setting the production number (see identification plate) 3: Setting the date and time 4: Display of the basic screen B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 36: Starting The Setting Wizard

    3: Tap the icon of the settings wizard 4: Tap the “Boiler” setting wizard 5: The settings wizard loads 6: Read the information text and continue with “YES” to start B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 37 Field pump 0-10 V + valve Solar pump 0-10 V + valve Switch valve Ü "Activation options of pump outlets" [} 80] Continue to the next step Go back one step B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 38: Parameters Overview

    Room temperature which is regulated outside of the set heating times. heating times. Flow temperature SP at outside air temperature of +10°C First setting point for definition of heating curve. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 39: Heating - Times

    If the outside air temperature exceeds this value during heating, the heating circuit pumps and mixing valve are deactivated. 4.1.3 Heating - Times System menu Heating Ü "Setting times" [} 85] B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 40: Heating - Service

    ▪ NO: During DHW tank loading this heating circuit is compensated basis. deactivated. ▪ YES: Despite active DHW tank priority, this heating circuit is supplied with heat during DHW tank loading. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 41: Heating - Heating Up Program

    Heating up program Service Outfeed temperature setpoint on day 1 … 30 If “heating up program 8” is selected, the flow temperature setpoint can be preset for each day using this setting. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 42 If the current room temperature falls below the set frost protection temperature setpoint, this influences the set flow temperature setpoint of the heating up program. NOTE: Only in conjunction with remote control! B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 43: Heating - General Settings

    DHW tank pump control window has elapsed or the temperature set under “Desired DHW tank temperature“ has been Specifies the speed of the DHW tank pump as a reached. percentage of maximum speed. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 44: Water - Temperatures

    DHW ▪ YES: If in the current day the DHW tank has already tank temperature + 3°C. been loaded once, any further DHW tank loading is prevented. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 45: Solar

    Display of the current temperature at the solar reference transmitter is used. In order to perform the calculation sensor in the lower part of the buffer tank. more precisely, the use of a collector return sensor is recommended. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 46 Collector pump control Indicates which heat sink (buffer tank, DHW tank) is currently being loaded. Display of the current speed of the collector pump as a percentage of maximum speed. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 47: Solar - Temperatures

    Also when the criteria for starting the collector pump have reached after the set time, the collector pump starts. been reached, the collector pump is only active up to the set time. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 48: Solar - Service

    If no temperature Pump outlet to which the solar isolating valve is increase on the collector sensor is detected, the collector connected. pump switches off and the time restarts from zero. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 49: Solar - Heat Meter

    Solar Collector temperature Collector return temperature Display of the current temperature at the solar collector. Prerequisite: Hydraulic system 12 or 13 Display of the current temperature at the collector return. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 50: Buffer Tank

    Display of the current temperature in the lower part of the position at the storage tank. All of the configured sensors buffer tank. are used to calculate the storage tank charge status. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 51: Buffer Tank - Temperatures

    This value, the boiler system follows the shutdown procedure. parameter defines the base point of the charging curve of the buffer tank. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 52: Buffer Tank - Service

    Sensor input of buffer tank bottom sensor Sensor input to which the sensor in the bottom part of the buffer tank is connected. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 53: Boiler

    Display of the current temperature at the boiler return. Display of the current value of the primary air flap Return pump controller according to controller. Reports the current speed of the return lift pump (bypass pump) in percent. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 54: Boiler - Temperatures

    150s! Control of bypass pump Indicates the control type of the RL lift pump. Minimum speed of shunt pump Indicates the minimum speed of the RL lift pump. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 55: Boiler - General Settings

    ▪ YES: In conjunction with a data logger, all temperature been recommissioned by Froling customer services or values are saved in °C. authorized installer! ▪ NO: In conjunction with a data logger, all temperature values are saved in °F. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 56 Boiler number By setting the boiler number, this is automatically transferred into the commissioning report when it is saved. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 57: Boiler 2

    If the secondary boiler is started, it will run for at least the activated immediately on request. length of time set here. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 58: Boiler 2 - Service

    Which pump output is used for unloading the controlled can be adjusted using this parameter. backup boiler Pump outlet to which the loading pump of the backup boiler or the backup boiler switch valve is connected. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 59: Fuel

    A prompt then appears to confirm whether the specified values for the chosen fuel selection should be adopted. 4.8 Ignition System menu Ignition Automatic ignition ▪ NO: Automatic ignition deactivated ▪ YES: Automatic ignition activated. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 60: Network Pump

    Specifies the current speed of the network pump. Speed, distributor 1 pump Prerequisite: Variant 1 and pump for distributor 1 installed Display of the current speed of distributor 1 pump. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 61: Network Pump - Temperatures

    Sensor input to which the sensor for the network return temperature is connected. If for system operation reasons you need to limit the maximum speed for the network pump you can do so by adjusting this parameter. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 62: Difference Regulator

    Display of the current temperature of the heat sink for the differential controller (e.g. tiled stove with water pocket, differential controller (e.g. layered tank, etc.). …). Pump speed Specifies the current speed of the differential controller pump. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 63: Difference Regulator - Temperatures

    Maximum pump speed If for system operation reasons you need to limit the maximum speed of the pump of the differential controller you can do so by adjusting this parameter. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 64: Circulation Pump

    If the flow switch is implemented as a push button, after the button is pressed the circulation pump still continues to run for the specified time. NOTICE! Parameter only relevant when using a flow switch! B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 65: Circulation Pump - Times

    Pump output of circulation pump Pump outlet to which the circulation pump is connected. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 66: Manual

    Digital outputs System menu Manual The parameters displayed depend on the boiler configuration! ▪ A 0: Automatic, Off; A 1: Automatic, On ▪ 1: Manual, On ▪ 0: Manual, Off B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 67: Manual - Analogue Outputs

    Digital inputs System menu Manual The parameters displayed depend on the boiler configuration! ▪ A 0: Automatic, Off; A 1: Automatic, On ▪ 1: Manual, On ▪ 0: Manual, Off B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 68: System

    Maximum ignition duration the current boiler temperature must at least exceed the value set here. Specifies how long the ignition procedure should last. The “Heating” status must be reached within this time. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 69 Setting - Ignition Ignition System menu System Setting Automatic ignition ▪ NO: Automatic ignition deactivated ▪ YES: Automatic ignition activated. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 70 In “Heating” status, the opening of the secondary air flap Secondary air opening at 0% signal is not lower than the specified value. At 0% control of the secondary air flap, this will open by the specified value. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 71 Lambda probe calibration (probe must be at 21% ▪ YES: After activation of the Lambda probe heating, the Lambda probe can be calibrated. NOTICE! The Lambda probe must be at 21% oxygen (air)! B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 72 The measured pump current of the broadband probe is displayed. Broadband probe heating voltage Broadband probe internal resistance The measured heating voltage of the broadband probe is displayed. Display of the measured internal resistance of the broadband probe. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 73 Setting - General settings General settings System menu System Setting Ü "Boiler - General settings" [} 55] MODBUS settings MODBUS General settings settings Setting Ü "Boiler - General settings - MODBUS settings" [} 56] B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 74: System - Current Values

    Display of the current fault messages. In addition, you can also invoke time information here, such as when the fault occurred, when the fault was acknowledged and when the fault was cleared. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 75: Diagnosis - Clear Pending Error

    (cleared). If all 50 fault indication entries are in use and there is another fault indication entry, the oldest entry will be deleted to make room for the current one. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 76: Diagnostics - Clear Error History

    ▪ On: The address in the local network (IP address), the subnet mask, default gateway and DNS server are automatically assigned by the router/server. ▪ Off: IP address, subnet mask, default gateway and DNS server can be manually set. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 77 (e.g. when replacing the core Ü "Software update Lambdatronic 3200" [} 89] module). Restart display Touch control unit is restarted and the data is reloaded from the core module. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 78: Touchscreen - Display Operating Rights

    The parameters displayed depend on the configuration. Boiler: Boiler values visible If this function is activated, all boiler status values and the “Boiler” menu are available on the room console. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 79: Touchscreen - Display Allocation

    To assign a DHW tank to a specific room console, the respective DHW tank number with its address must set on the room console. The parameters are set to “none” at the factory! B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 80: Faq

    When set to “Isolating valve” the output is activated either with 0% or 100%. This setting value is only available in the “Water” or “Boiler 2” menu. HKP0 The following applies to pump outlet HKP0 at the core module: ▪ Relay output ▪ Speed control is not possible B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 81: Pump Stall Protection

    “heating” status. Door open The insulating door is open and the fan runs at maximum speed. The fuel burns down to residual embers. Fault CAUTION - There is a fault! B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 82: Determination Of The Quantity Of Heat

    Activate the circulating pump in manual operation at 50% speed r Press the push bar on the line regulating valve; make a note of the flow on the scale B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 83 Activate the circulating pump in manual operation at 50% speed r Press the push bar on the line regulating valve; make a note of the flow on the scale B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 84 Configuring the heat quantity calculation r Go to the menu “System → Settings → Boiler heat quantity calculation” r Enter the recorded values for the flow of the circulating pump at the respective parameter B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 85: Setting Times

    Tap the symbol under the day of the week Ä The edit window will appear You can specify up to four time windows per component and day. r Tap the desired time window B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 86 If you want to apply the time window setting to another day in addition, you can do this by activating the relevant day. A set time window can be deleted by tapping on the “Recycle bin” symbol. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 87: Calibrating The Touchscreen

    In the “Software update / Service" menu open the “Recalibrate touch control” parameter r Set the parameter to “YES” and confirm at the bottom right Ä The touchscreen will restart and begin calibrating B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 88 NOTICE Inaccurate calibration If you do not tap the indicated points accurately, the control may stop working properly and a software update may be required. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 89: Software Update Lambdatronic 3200

    USB-C USB-A USB-A Ü "Carrying out a software update on the touch control" [} 92] r Close Flash Update Wizard - restart controller Lambdatronic Service Ü "Finishing a software update" [} 93] B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 90: Carrying Out A Software Update On The Boiler Controller

    Ä A window is displayed where you can search for the Flash file r Navigate to the folder where the file is saved r Select the Flash (*.s19) file and click on the "Open" button B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 91 When the flash update is successfully transferred to the boiler controller, the following window appears: NOTICE! Do not close the update at this time and do not disconnect the boiler controller! B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 92: Carrying Out A Software Update On The Touch Control

    Once the update is complete, a message will appear that you can remove the stick r Remove the USB stick Ä The touch control restarts automatically The touch control software is up-to-date following the restart. r Perform updates to any other touch controls B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 93: Finishing A Software Update

    Ä After restarting the boiler controller, check whether all touch controls have started up correctly NOTICE! If not all touch controls connect to the boiler control, a restart of the entire system (main switch OFF/ON) is necessary! B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...

  • Page 94: Usb Data Recording

    Turn on the main switch and connect USB to the extension Ä The USB must not contain a software update Ä Recording starts automatically once the touch display has started B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 95 FAQ | 5 Data recording is indicated in the status line by means of the USB symbol with an activity bar. B1740023_en | Service handbook Lambdatronic S 3200 - S4 Turbo...
  • Page 96 Manufacturer’s address Froling srl Froling SARL Fröling Heizkessel- und Zweigniederlassung Behälterbau GesmbH Aschheim Industriestraße 12 Max-Planck-Straße 6 Via J. Ressel 2H 1, rue Kellermann A-4710 Grieskirchen 85609 Aschheim I-39100 Bolzano (BZ) F-67450 Mundolsheim +43 (0) 7248 606 0 +49 (0) 89 927 926 0 +39 (0) 471 060460 +33 (0) 388 193 269 info@froeling.com...
