Yamaha YDX-MORO Quick Start Manual

Dear New Yamaha YDX-MORO®, YDX-MORO Pro®, YDX-MORO 05, or YDX-MORO 07 e-Bike Owner,
Congratula�ons on your purchase of a new e-Bike during the Yamaha Bicycles EXTRAvaganza
promo�on—and thank you for comple�ng the owner's survey. Enclosed is your free extra batery that
we promised as part of this promo�on.
Your new batery will need to be assembled with the enclosed end cap and ac�vated before use. Please
follow these instruc�ons:
/!\ WARNING:
Do not drop the batery pack or subject it to impact. Doing so could cause the batery pack to become
hot or catch fire, resul�ng in serious injury or property damage.
1. You will need a 3 mm hex wrench ("Allen® key") to assemble the end cap correctly. Prepare a
clean workspace where you can unpack the batery. Be careful not to lose any parts. You should
have these components (see illustra�on below):
 Batery
 Plate
 End cap (composite material)
TIP: If you are uncomfortable assembling the batery or don't have the proper wrench, feel free
to visit your Yamaha dealer or contact Yamaha Power Assist Bicycles Customer Rela�ons for
assistance at 1-800-962-7926.

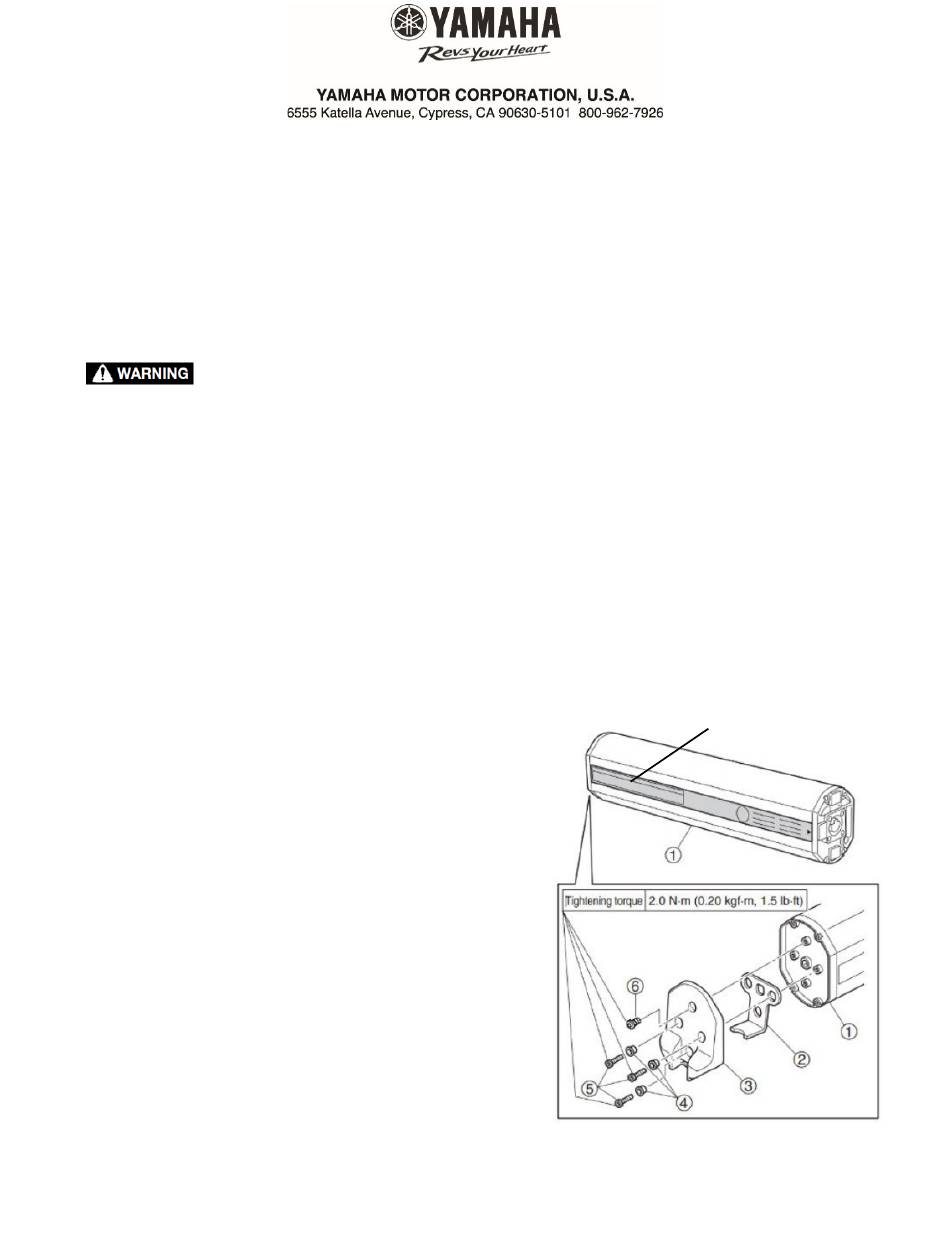

2. Posi�on the batery  with the orange-and-black
Warning Label side facing as shown. Place the
plate  and end cap  on the batery and make
sure all of the holes in both pieces align with the
threaded holes in the batery.
Put a cylindrical washer  on each of the three
longer screws  with the wider collar end up
against the screw head. Insert the screws in to the
three lower holes in the batery as shown. Insert
the shorter screw  into the upper hole as shown.
Lightly finger �ghten each one, being sure the end
cap is properly aligned.
 3 Cylindrical washers (collars)
 3 Hex-head screws (long)
 1 Hex-head screw (shorter)
WARNING LABEL
(Con�nued on other side)
