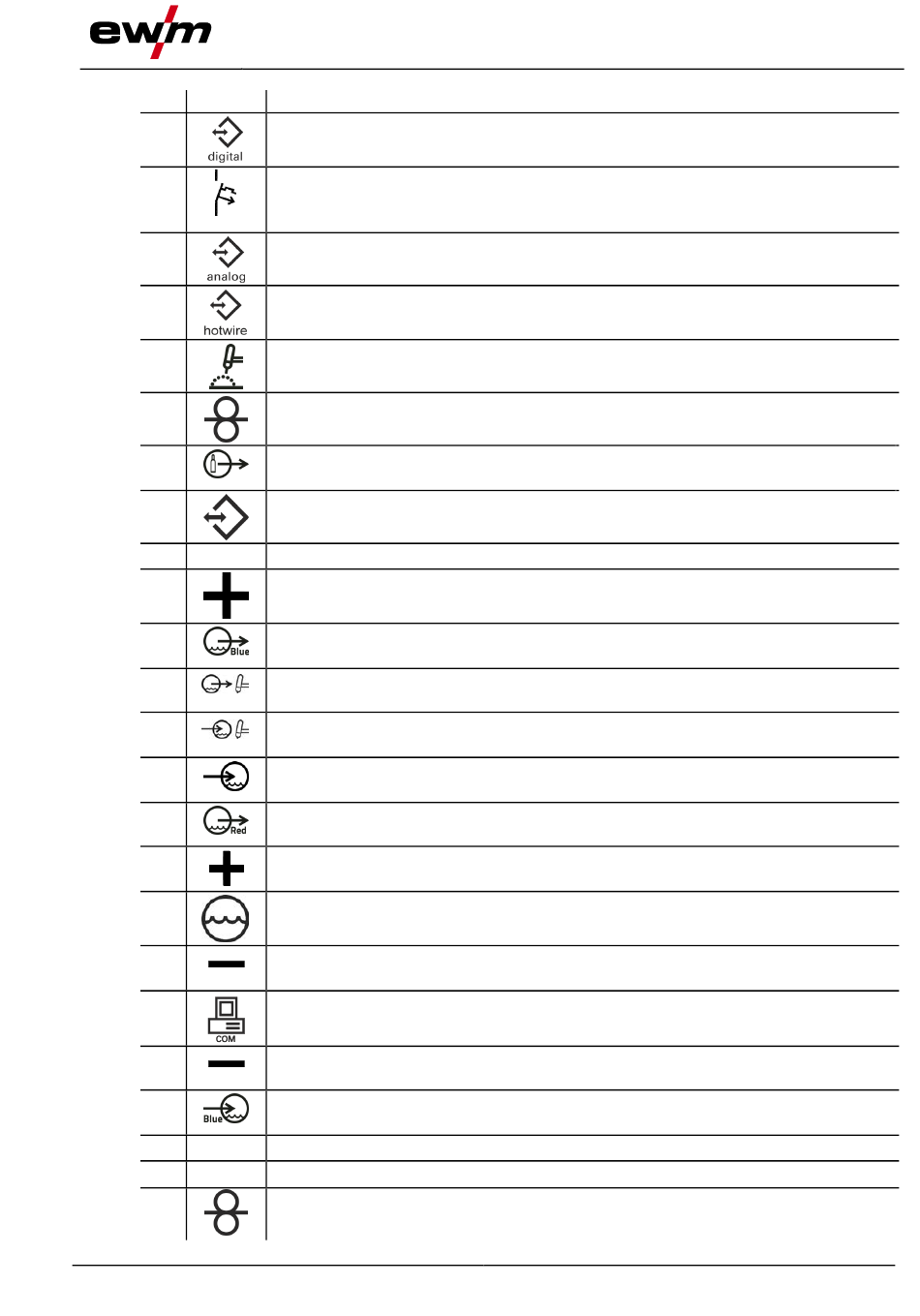

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
099-000161-EW501
28.03.2024
Machine description – quick overview
Description 0
Interfaces connection socket (15-pole)
Key button, automatic cutout
Wire f eed motor supply voltage f use
press to reset a triggered f use
19-pole mechanised welding interface (analogue)
> see 5.2.2 chapter
Control lead connection, hot wire power source
Connection to TIG power source f or hot wire application
19-pole connection socket (analogue)
Mechanised welding torch connection > see 5.2.3 chapter
12-pole connection socket (analogue)
Wire f eed unit connection
Connection thread - G¼"
Shielding gas connection (outlet)
7-pole connection socket (digital)
For connecting digital accessory components
Cover for welding current connection
Load connection screwable potential "+"
Workpiece connection > see 5.1.9 chapter
Quick connect coupling, blue
Coolant supply to the welding machine or wire f eed unit
Connection thread M18x1.5
Coolant supply and welding current connection, minus potential
Connection thread G½"
Coolant return and welding current connection, minus potential
Quick connect coupling, red
Coolant return f rom the welding machine or wire f eed unit
Quick connect coupling (red)
Coolant return to cooling unit
Connection socket for "+" welding current
Connection to TIG power source f or hot wire application
Earthed socket
Power supply, welding torch cooling unit
Connecting plug, welding current "-"
Connection to TIG power source f or hot wire application
PC voltage supply
Protective contact socket
Connection socket for "-" welding current
Welding current plug, TIG hot wire
Quick connect coupling (blue)
Coolant supply f rom cooling unit
Cooling air outlet
Intermediate hose package strain relief > see 5.1.14 chapter
7-pole connection socket (digital)
Wire f eed unit connection
Rear view
