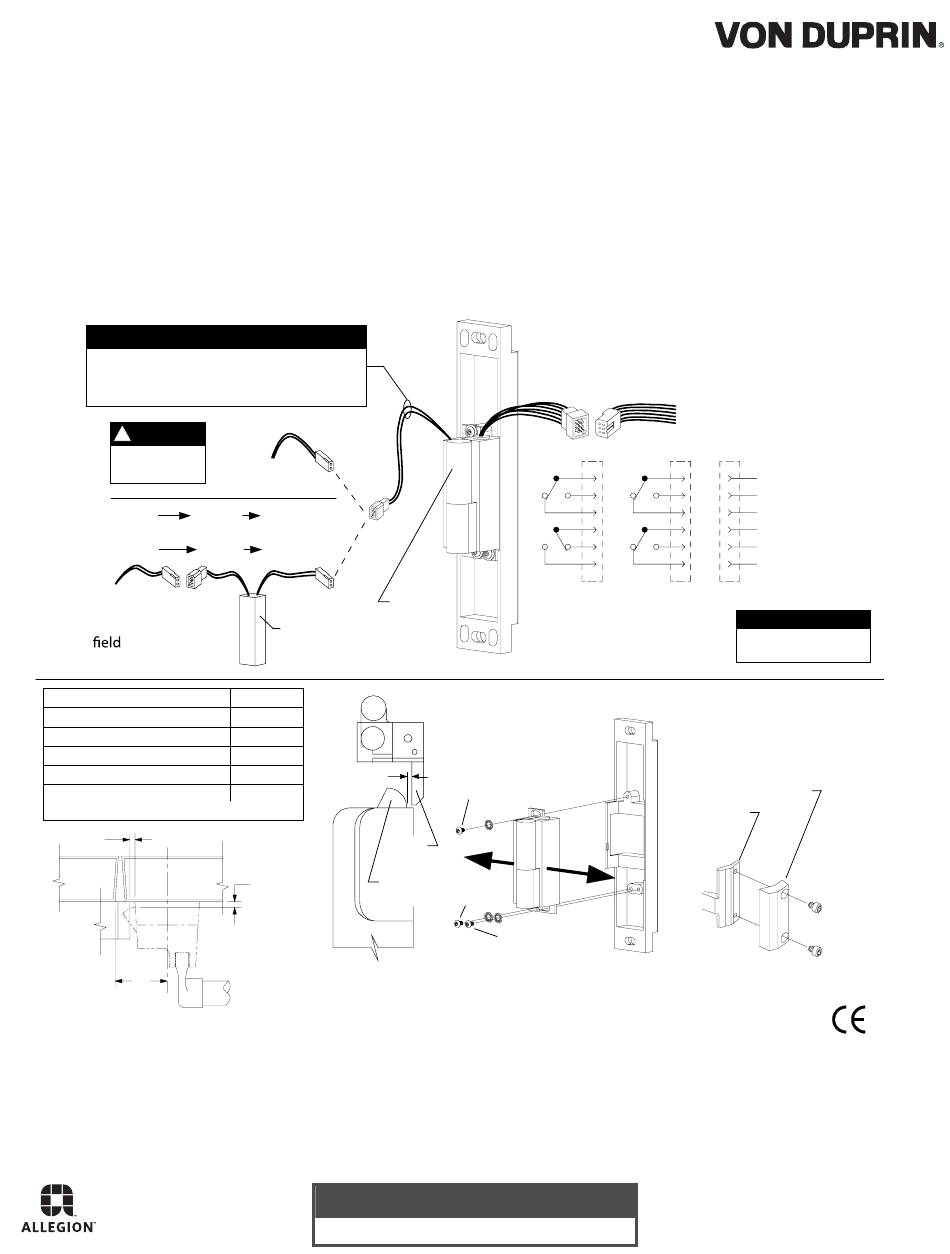

Von Duprin 6121 Installation Instructions

*931239-00*
931239-00
Electric Strike, Double Door Closed Back Rim Application
Note Check with factory for retrofit applications
1. For lock or device preparation, see their directions
Also see application schedule below
2. Prepare door for strike (see other side)
3. Wire strike (Figure 1). (Switches on 6121DS only.)
SOLENOID POWER REQUIREMENTS
Yellow solenoid wires = 12 VDC, 0.57 A
Black solenoid wires = 24 VDC, 0.29 A
(also shown on strike label)
{
! NOTE
Wiring
for DC
DC input is
supply
nonpolarized
{
12 VAC
Wiring
or
for AC
24 VAC
supply
P1 J1A
Use crimp
connectors to
splice wiring
to P1 leads
Von Duprin Device
22 Rim and 98/99 Rim
33/35 Rim EO/DT/NL/TP
33A/35A Series Rim
88 Rim EO/DT/NL/TP
88 Rim K
For other devices, consult factory
X
3/16" ref.
"B"
X
Application Schedule
6121/6121DS
12 VDC
P1
or
24 VDC
J1
SO 2 -1 12 VDC
SO -24 24 VDC
P1A
SO-12 or SO-24
Figure 1
"B"
2-7/16"
1-13/16"
1-15/32"
2-1/2"
1/32"
2-3/8"
5/16"
Line X-X
corresponds to
line X-X on device
Top view;
template
faceplate not
shown for clarity
Figure 2
1-877-671-7011
4. Test strike: Apply solenoid power. Fail secure (SFE) lip unlocks.
Fail safe (FS) lip locks. Figure 1 shows status of switches.
5. Install strike with two #12-24 screws. Make sure clearance
between latch bold and strike lip is 1/32" (Figure 2) If not,
uninstall strike, adjust (Figure 3), and reinstall
6. If latch bolt does not extend far enough to actuate tripper,
install extension (Figure 4). (Tripper on 6121DS only.)
7. Test door: With strike unlocked, door opens
S1
S2
Solenoid
Fail safe (FS)
Switches shown with tripper
depressed, strike lip closed and locked
(switches and tripper on 6121DS only)
To adjust strike, loosen
screws A, B, and C and
move backbox sideways
as necessary
A
Strike
lip
Latch
B
bolt
C
Figure 3
Customer Service
www.allegion.com/us
with latch bolt extended. When door closes,
latch bolt rides over strike lip.
J2 P2
Use crimp connectors to
splice wiring to P2
leads; insulate unused leads
1 1
S1
2 2
3 3
4 4
S2
5 5
6 6
J2 J2 P2
Fail secure (FSE) SWITCH RAT INGS
Standard: 5 A, 30 VDC
Gold: 0.25 A, 30 VDC
NOTE:
Static Strength Rating 1500 lb.
Dynamic Strength Rating 70ft.-lb.
Endurance Rating 250,000 c.
Extension
Tripper
Figure 4
Installation Instructions
}
Red (C)
S1
Blue (monitors
tripper)
Yellow
}
White (C)
S2
(monitors
Gray
strike lip)
Violet
.
© Allegion 2022
Printed in U.S.A.
931239-00 Rev. 12/22-c
