Summary of Contents for Renac R1 Kiddy Series

  • Page 2: Table Of Contents

    Contents 1.Introduction ................................2 1.1 Introduction ..............................2 1.2. Applied designations ............................ 2 1.3. Important safety information ......................... 3 1.4. System sizing ............................... 3 2. Technical description of inverters ........................4 2.1. Mechanical design ............................4 2.2. Electrical system design ..........................5 2.3.

  • Page 3: Introduction

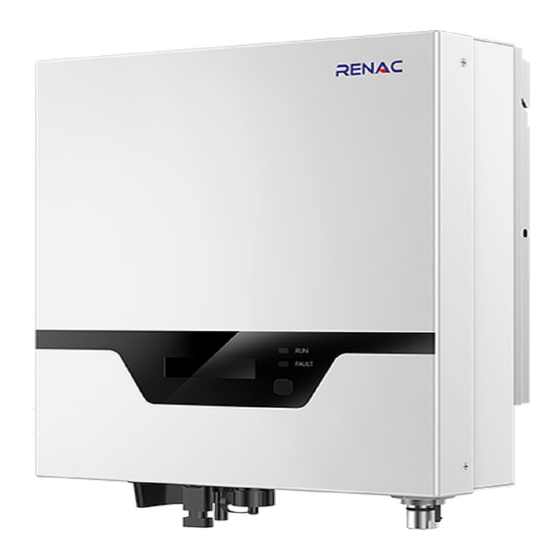

    1.Introduction 1.1 Introduction This manual describes solar inverters: NAC4K-DS/NAC5K-DS/NAC6K-DS/NAC7K-DS/NAC8K-DS. These inverters are transformerless based inverter. Please read the safety instructions in this manual first. Throughout the manual it is assumed that the reader is familiar with AC and DC installations and knows the rules and regulations for electrical equipment and for connecting it to the utility AC grid.

  • Page 4: Important Safety Information

    The limitation depends mainly on internal and ambient temperatures. The limitation is calculated continuously and always allows the maximum possible amount of energy to be produced. Please use the tool supplied by Renac Power when dimensioning a photovoltaic system.

  • Page 5: Technical Description Of Inverters

    2. Technical description of inverters 2.1 Mechanical design Figure 2-1 shows the outline dimensions of NAC4K-DS/NAC5K-DS/NAC6K-DS/NAC7K-DS/NAC8K-DS: Figure 2-1 Outline dimensions Figure 2-2 shows the electrical terminals of NAC4K-DS/NAC5K-DS/NAC6K-DS/NAC7K-DS/NAC8K-DS:...

  • Page 6: Electrical System Design

    Figure 2-2 Electrical Terminals Remark: For CEI standard, DRM S0 is the DI port, corresponding to PIN5 (GND), PIN6 (DI input port) of RJ45. DC (PV terminal) DC Switch I/O Port Communication port AC terminal LEDs （Run/Fault） 2.2 Electrical system design For safety reasons, the use of a DC switch is recommended.

  • Page 7: Technical Data

    2.3 Technical data NAC4K NAC5K NAC6K NAC7K NAC8K Model DC Input Data Max. Recommended PV Power 5200Wp 6500Wp 7800Wp 9100Wp 10400Wp Max.DC Input Voltage 600V MPPT voltage Range 100-550V Start-up Voltage 120V No. of MPP Trackers No. of Input Strings per Tracker Max.

  • Page 8: Grid Codes

    2.4 Grid codes National/Regional Grid Code Description Germany power Grid, meet Grid standards “VDE-AR-N-4105”. VDE4105-DE CEI0-21 Italy power Grid. AS4777 Australia power Grid. RD1699 Spain power Grid. EN50549-TR Turkey power Grid. EN50549-DK Denmark power Grid. Greece Greece power Grid. Netherland power Grid, meet Grid standards “EN50438”. EN50549-NL C10/11 Belgium power Grid.

  • Page 9: Installation And Startup

    3. Installation and startup Warning！ Before installation and maintenance, AC and DC side doesn’t carry electricity, but if DC side is just disconnected, capacitance still contains electricity, so please wait for at least 5 minutes to ensure the capacitors completely release the energy and inverter is not electrified.

  • Page 10: Installation Position

    Please do not install inverter under direct sunlight, rain and snow. Figure 3-2 installation environment 3.3 Installation position The installation method and mounting location must be suitable for the inverter's weight and dimensions. Mount on a solid surface. Select a well-ventilated place sheltered from direct sun radiation. Figure 3-3 installation position In consideration of heat dissipation and convenient dismantlement, the minimum clearances around the inverter should be no less than the following value:...

  • Page 11: Mounting Procedure

    3.4 Mounting procedure Setp1: Drill 4 Fix Ø11 holes in the wall according to the dimensions. Step2: Fix the wall mounting bracket on the wall with 4 expansion bolts in accessory bag. Setp4: Place the inverter on the wall-mounted bracket and install the fix screw. Figure 3-5 mounting the inverter...

  • Page 12: Electrical Connection

    3.5 Electrical connection 3.5.1 Connection to the grid (AC output) Add breaker or fuse to AC side, the specification should be more than 1.25 times of rated AC output current. The PE line of inverter should be connected to the earth, make sure the impedance of neutral wire and earth wire less than 10 ohm.
  • Page 13 3.5.2 Connection to PV string (DC input) Before connecting PV string, make sure DC switch is turned off Make sure PV string polarity confirms with DC connector, otherwise, it will cause damage to inverter Make sure the maximum open circuit voltage (Voc) of each PV string does not exceed the inverter input voltage Vmax under any condition Do not connect positive or negative pole of PV string to earth wire.
  • Page 14 3.5.3 RS485 communication Please make sure the RS485 connecting cables not exceed 1000m. Communication lines must be separated from other power lines to avoid communications interference. Remark: RS485 port, PIN3: A, PIN4:B. Figure 3-9 RS485 Port Figure 3-10 RS485 in multiple series Figure 3-11 install WIFI/GPRS module Please refer to the module user manual in detail.

  • Page 15: Starting The Inverter

    3.6 Starting the inverter Before turn on the inverter, please confirm: Three AC wires (PE/L/N) cable correctly connected to the inverter AC side through AC circuit breaker; The DC cable connected correctly to the inverter DC side through DC circuit breaker, please be attention to the cable connected to the two string correctly and it’s polarity;...

  • Page 16: Lcd Display

    4.2 LCD display Menu structure: Normal/fault Power： 中文 Language Factory setting Factory setting Vpv1： Power： English Country setting Factory setting Factory setting Ipv2： Power： VDE4105 Vac A： Factory setting Factory setting Power： 中国2 Iac A： Factory setting Power： Fac： Power： Fault code1 Fault code ...

  • Page 17: Setting Language

    4.4 Setting language Press pushbutton less than 1 sec. several times until you reach the “Setting” menu. Press pushbutton long in order to enter the “setting” menu. Press pushbutton less than 1 sec. several times until you reach the “language setting” menu. Press pushbutton less than 1 sec.
  • Page 18 Auto-Test from Solar Admin: Download and install “Solar Admin” on laptop. Connect inverter to laptop via RS485 port. When the inverter and “solar admin” are successfully connected. Click “Sys.setting” - “Other” - “AUTOTEST” enter into “Auto-Test” interface. Click “Execute” to start the test. The inverter will automatically run the test until the screen shows “Test end”.

  • Page 19: Warranty

    5. Warranty The standard warranty period for the inverter is 60 months from the date of installation and no more than 66 months (5.5 years) from the date of shipment from factory. 5.1 Warranty claim procedure Please report defective device with a brief error description and SN code to our service mail or service hotline for registration.

  • Page 20: Appendix A: Faq (Frequently Asked Questions)

    Appendix A: FAQ (Frequently asked questions) Sometimes, the PV system does not work normally; we recommend the following solutions for average troubleshooting. This can help the technician to understand the problem and take a proper action. Fault LCD display Possible actions 1.
  • Page 21 P/N: 422-00022-02...

This manual is also suitable for:

Nac4k-dsNac5k-dsNac6k-dsNac7k-dsNac8k-ds
