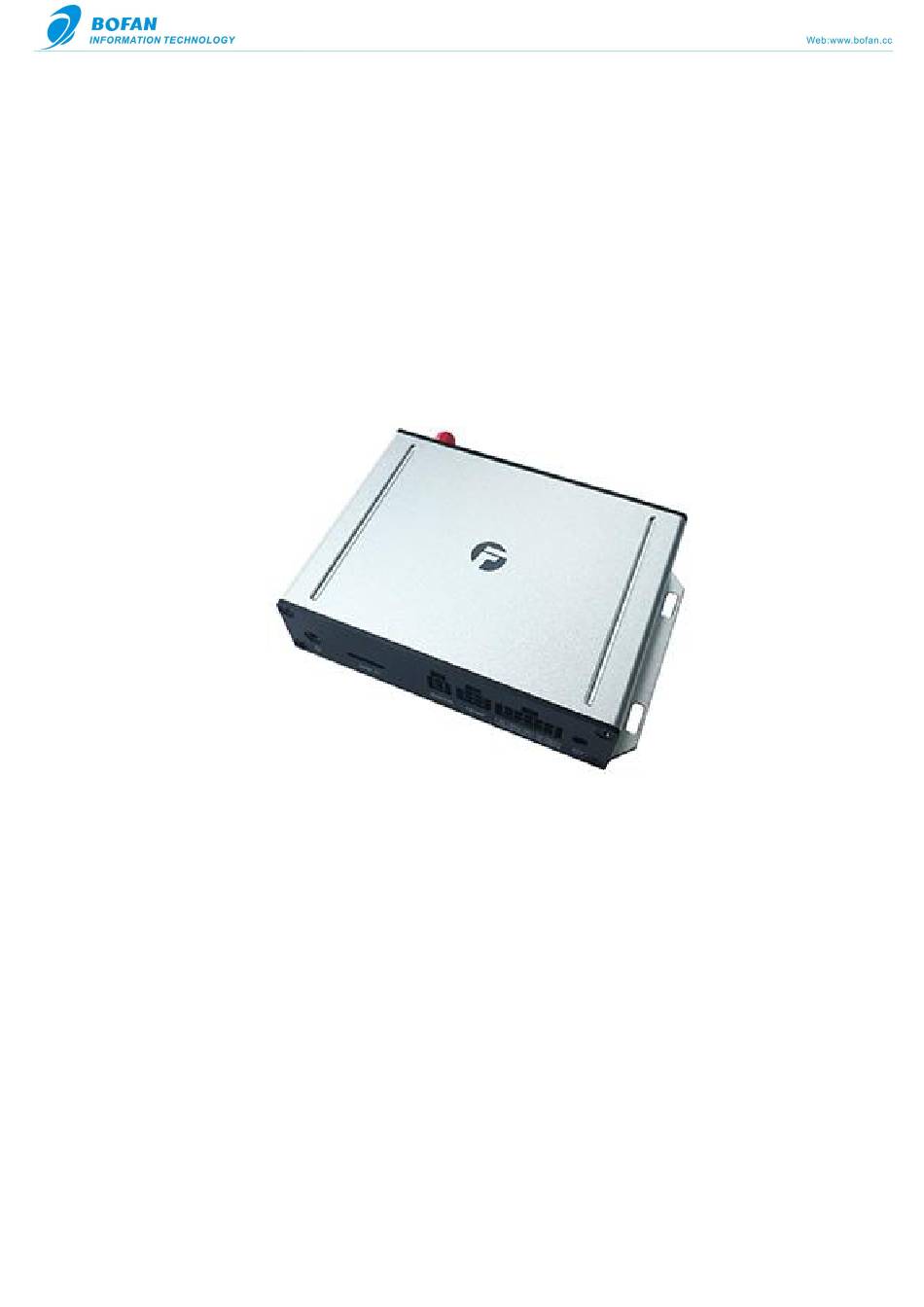

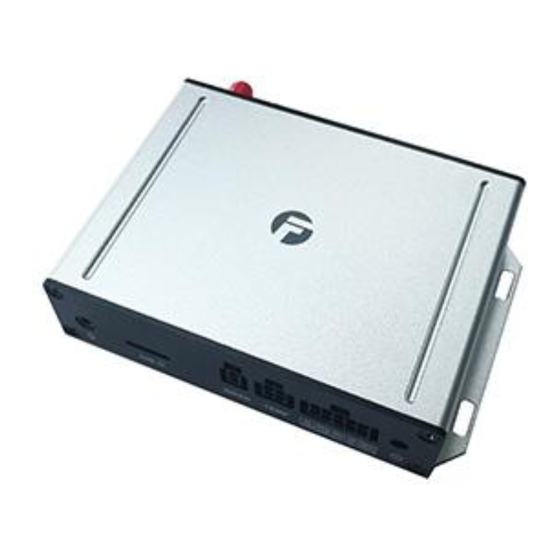

- Page 1 PT621- 4G GPS Vehicle Tracker User Manual...
-
Page 2: Table Of Contents
Contents Contents.................................. 2 1. Introduction................................3 1.1 Attention................................3 1.2 Instructions of safety............................3 1.3 Terminology..............................3 2. Basic Description..............................3 2.1 Standard Package............................4 2.2 Basic Structure..............................4 2.3 Specification..............................5 2.4 Features................................6 2.5 Application................................6 3. Installation and Operation............................6 4. Start Tracking.................................7 4.1 Tracking by mobile SMS:..........................7 4.2 Tracking by FMS platform.......................... -
Page 3: Introduction
PT621 is a GPS & 4G tracking tracker which is specially developed and designed for vehicle real-time tracking and security, it has good sensitivity and stable performance. Especially, PT621 is well designed to work with FMS, which is suitable for a company to establish their own tracking platform to provide real-time tracking service to their customers or manage their fleets. -
Page 4: Standard Package
2.1 Standard Package Main Unit GPS Antenna GSM Antenna Power Harness 2.2 Basic Structure External Power(+) GND1 External Power(-) / GND Black GND2 Connect to SOS button SOS button White Negative Input2 Positive Input3 Orange Connect to vehicle ignition Connect to AD fuel sensor or any other analog input sensor Purple OUT1 Connect to extra relay... -
Page 5: Specification
2.3 Specification Items Specifications Standard package Weight 0.5KG Dimensions 104(L)x 78(W) x 26(H) mm Input Voltage DC 9V~36V/1.5A Back-up Battery 400mAh/3.7v, 8~24 hours depends on preset report interval Power Consumption 50mA standby current Operating Temperature Range -10°C to +60°C Storage Temperature Range -20°C to +70°C Humidity Up to 75% non-condensing... -
Page 6: Features
Memory Save 8192 way points Motion sensor 4ch*12Bits 2.4 Features Manually tracking via SMS or automatically location update via SMS Get Google Map link for current location by SMS request Real-time online tracking in FMS platform via GPRS ... -
Page 7: Start Tracking
Note: The antennas should be installed in the open position without metal shield, face to sky, and should be away from of the interference source of power supply. After installation, fix antenna with double-sided glue, to avoid antenna sliding to GPS/GSM signal blind area. Connect red wire with car battery positive pole, and black wire with car battery negative pole. -
Page 8: Tracking By Fms Platform
You can input Latitude & Longitude in the reply SMS into our platform, click “Locate” button to see the position. 4.2 Tracking by FMS platform Please ensure that the SIM card inside PT621 supports GPRS service and connection. If do real-time tracking on our platform, you need add the tracker’s IMEI number as tracker ID on FMS platform. -
Page 9: Set Sim Card Apn
Please click “Submit” button after you finish the basic information. 4.2.2 Set SIM card APN Generally after setting tracker ID only, it can connect with our platform with the default settings, if not, then try to set APN in below format, please contact your local SIM provider to get the APN. SMS Command format : <password >APN<APN>, <User>, <Pass>... -
Page 10: Sms Commands List
Extending use of two-way communication Command <password>TEM2 Remarks If you want to save credit of SIM card number in PT621, you can send this command, then dial out from your mobile phone to PT621’s SIM card number for two way communication Voice Monitoring Command <password>TEN... - Page 11 If only set the 1st number, PT621 will send SMS and then call to this first number after pressing SOS button. If set the 2nd or 3rd numbers too, PT621 will send SMS to all 3 numbers, only call to the 1 number after ...
- Page 12 Take photo at a preset time interval Command <password>PTI<time interval> Remarks Time Interval =0 to turn off this function Time Interval =[120-65535] (unit: second) Example: 000000PTI300, PT621 will take photos every 300 seconds NOTE This feature is valid when PT621’s firmware version is 1.40 above...
- Page 13 Index1 in above AN command Example 000000SALIN11110 That means, when input 1(SOS key) is pressed, PT621 will send SOS alarm on platform, send alarm SMS to SOS number, call to SOS number, but do not take photo Disable Fatigue Driving...
- Page 14 000000AD1<10,Fuel Low,4 After you connect fuel sensor to PT621 AD1 wire, PT621 will send Fuel Low alarm SMS to SOS number when tracker get AD1 data <10%, but this alarm is effective only when input4 on (if you connect input4 to car ignition, then it means car ignition on).
- Page 15 For example: 000000AID0019254851, If need set multi-tags, you can set them in one command, use comma to separate all IDs. Example: 000000AID0019254851,0019254852,0019254853,0019254854 (max 10 IDs in one setting), PT621 can support maximum 200 ID tags. If connects with buzzer, when swiping RFID card successfully, two short beeps will sound, if swiping card fails, a long beep will sound.
-
Page 16: Alert List
Example: 000000GID, set IMEI as default tracker id (suggest) Set APN Command <password >APN<APN>,<User name>,<Password> Remarks If your APN doesn’t have user name and password, type APN only; (Please get the correct APN of SIM card in tracker from your SIM card provider) Set Server Command <password>SVR<domain>,<Port>... -
Page 17: Trouble Shooting
Problem: Reply SMS starts with ‘Last…’ Possible Cause: Resolution: PT621 does not have clear view of the sky Move the antenna of the unit to a location where the sky is visible. PT621 is indoor Make it work in an open area outside...
