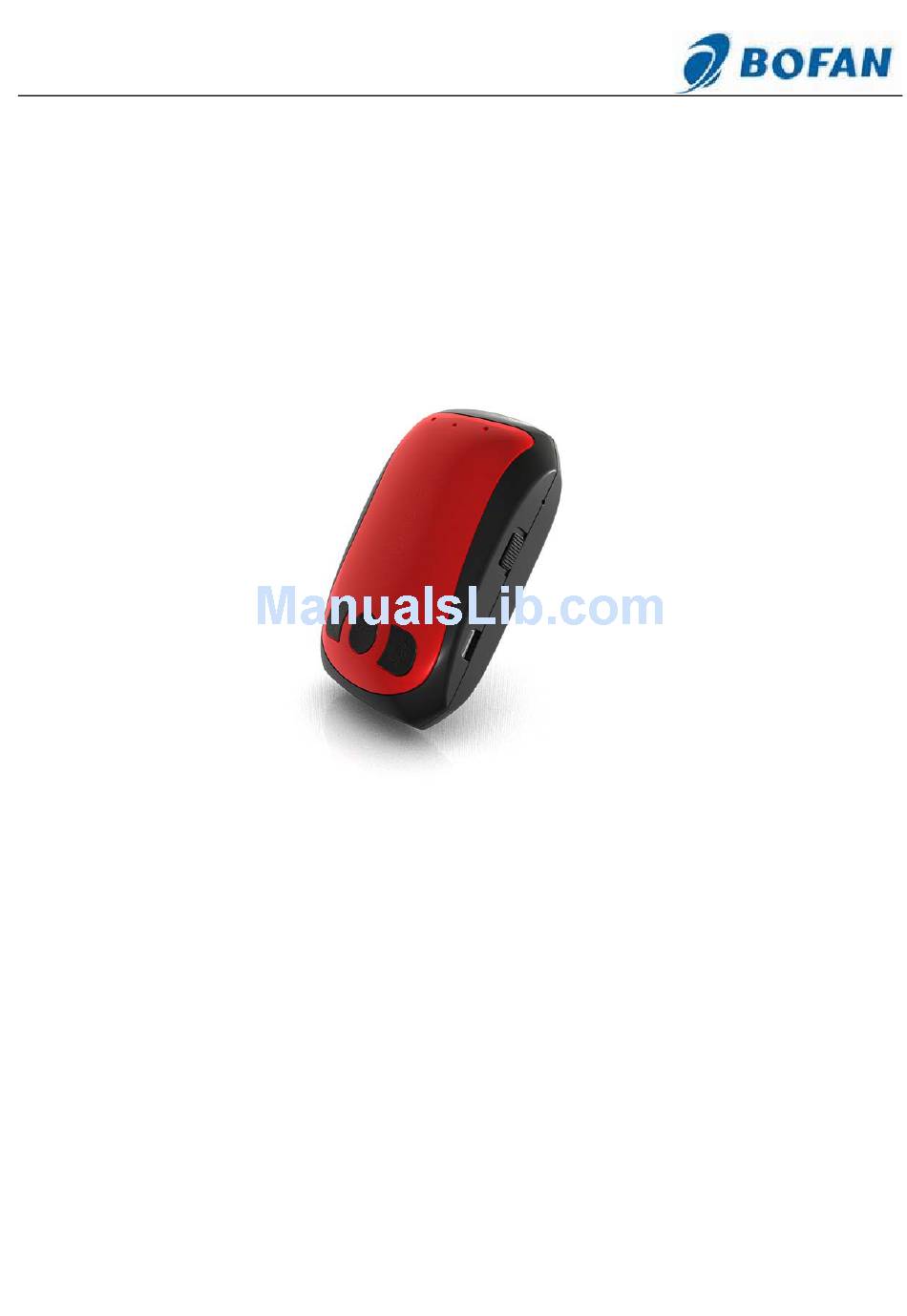

Bofan PT80 User Manual

Mini gps personal tracker
Hide thumbs Also See for PT80:

Advertisement

Quick Links

Download this manual See also: User Manual
M
i
n
i
G
P
S
P
M
i
n
i
G
P
S
P
U
s
e
U
s
e
P
e
r
s
o
n
a
l
T
r
a
e
r
s
o
n
a
l
T
r
a
r
M
a
n
u
a
l
r
M
a
n
u
a
l
T
8
0
P
T
8
0
c
k
e
r
c
k
e
r
- 0 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the PT80 and is the answer not in the manual?

Questions and answers

Related Manuals for Bofan PT80

Summary of Contents for Bofan PT80

  • Page 1 - 0 -...
  • Page 2 PT80 is a compact size GPS tracking device which is specially developed and designed for tracking Kids, Elder or Pets. It is especially well designed to work with Bofan Web-based tracking software LiveGTS which is suitable for a company to establish their own tracking platform to provide real-time tracking service to their clients,targeting large sales teams, students, camping teams, travel teams etc.

  • Page 3: Technical Parameters

    2. Technical Parameters: Items Parameters Dimension 6.5*4.2*2.0cm Weight GSM module embedded GSM 900/1800/1900Mhz embedded GSM 850/900/1800/1900Mhz (Optional) GPS Chipset GPS SiRF-Star III chipset GPS Sensitivity -158Db GPS Frequency L1, 1575.42 MHz Position Accuracy 10 meters, 2D RMS Hot start 1 sec., average Warm start 38 sec., average Cold start...

  • Page 4: Getting Started

    3. Getting Started This part will describe how to set up your PT80 3.1 Hardware and Accessories PT80’s standard package includes following items: 1*Main Unit 1*Mini USB cable 3.2 View - 3 -...
  • Page 5 Then open cover of PT80 and install the simard into the main unit by referring to the picture below: After simcard installed, you can close the cover and to turn on the device as below, then the LED will flashing...
  • Page 6 4.1 Tracking via SMS by using your mobile: When you want to locate your PT80, you can call the number of simcard installed in PT80 or send a SMS command: 000000RCP to PT80 from your mobile and after seconds, it will reply a SMS with the coordinates data back to your mobile.
  • Page 7 "Locate" button. It will display the location on map as follows: Option 2. Send 000000RCM to PT80 and get google map link, you can click the link by using your smart phone, you will be able to locate PT80 on the google map 4.2 Tracking via GPRS by log on GPS Tracking Software LiveGTS...
  • Page 8 Go to “Manage” -> click “Add New Tracker” button, then fill in your tracker name and tracker ID, select correct tracker Model PT80 or PT01x(because PT80 use the same plugin firmware as PT01x), click ”Modify” button to add this tracker into software successfully.
  • Page 9 SMS Example: 000000GTI30 PT80 will reply SMS(SET OK, GTI:30) Then PT80 will report data by GPRS to server every 30 seconds. We suggest time interval >= 30 seconds. Time interval value should not exceed 65535 seconds. You will be able to see your trackers on the map in the “Real-time” page of the LiveGTS software if all above settings correct.
  • Page 10 SMS reply: Center: Nigang West Road Side Rd,Futian,Shenzhen,Guangdong,China (Note: tracker can only reply the detail address in English) PT80 will only reply command from a user which uses the correct password. Command with wrong password is ignored. 5 SMS Command List...
  • Page 11 Number2>,<SOSNumber3> phone call or SMS from PT80. Max 16 digits. Maximum 3 SOS numbers can be set. If only set the 1st number, PT80 will send SMS and then call to this first number after pressing SOS button. If set the 2nd or 3rd numbers too, PT80 will send SMS to all 3 numbers, only call to the 1 number after press SOS button.
  • Page 12 Set time zone difference <password>TMZ<Time> TMZ=Time Zone Time from -13 to 13 Example: 000000TMZ8 Restart <password>RST<Type> RST=Restart Type=0 or null, to reboot PT80 Type=1 to reboot GPS Type=2 to reboot GSM Reset PT80 to default <password>DFT DFT=Default <password>RPO Request Power...
  • Page 13 For example: 000000SALIN1111 It means PT80 will send SOS alarm to platform, send SMS alert to SOS number, call SOS number when SOS BUTTON pressed 000000SALGEO110 It means PT80 will send SOS alarm to platform, send alarm SMS to SOS number without calling SOS number when...
  • Page 14 PT80 will report data to server every 300 meters distance moving, PT80 will report data to server when it bends for 30 degrees or over 30 degrees, PT80 will report data to server every 2 hours (30secondsx240=7200seconds=2hours) when it stops moving.
  • Page 15 Battery power is low Recharge device Problem: Can’t real-time tracking on platform Possible Cause: Resolution: GPRS setting is not correct. Please set each step strictly according to user manual. APN is wrong Ask your GSM provider to get the correct APN, username and password if it has,then set again.
