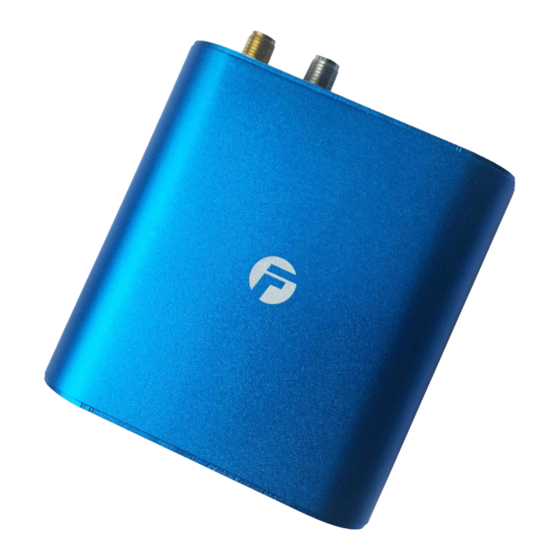

PT502S- 4G GPS Vehicle Tracker
User Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT502S and is the answer not in the manual?

Questions and answers

Related Manuals for Bofan PT502S

Summary of Contents for Bofan PT502S

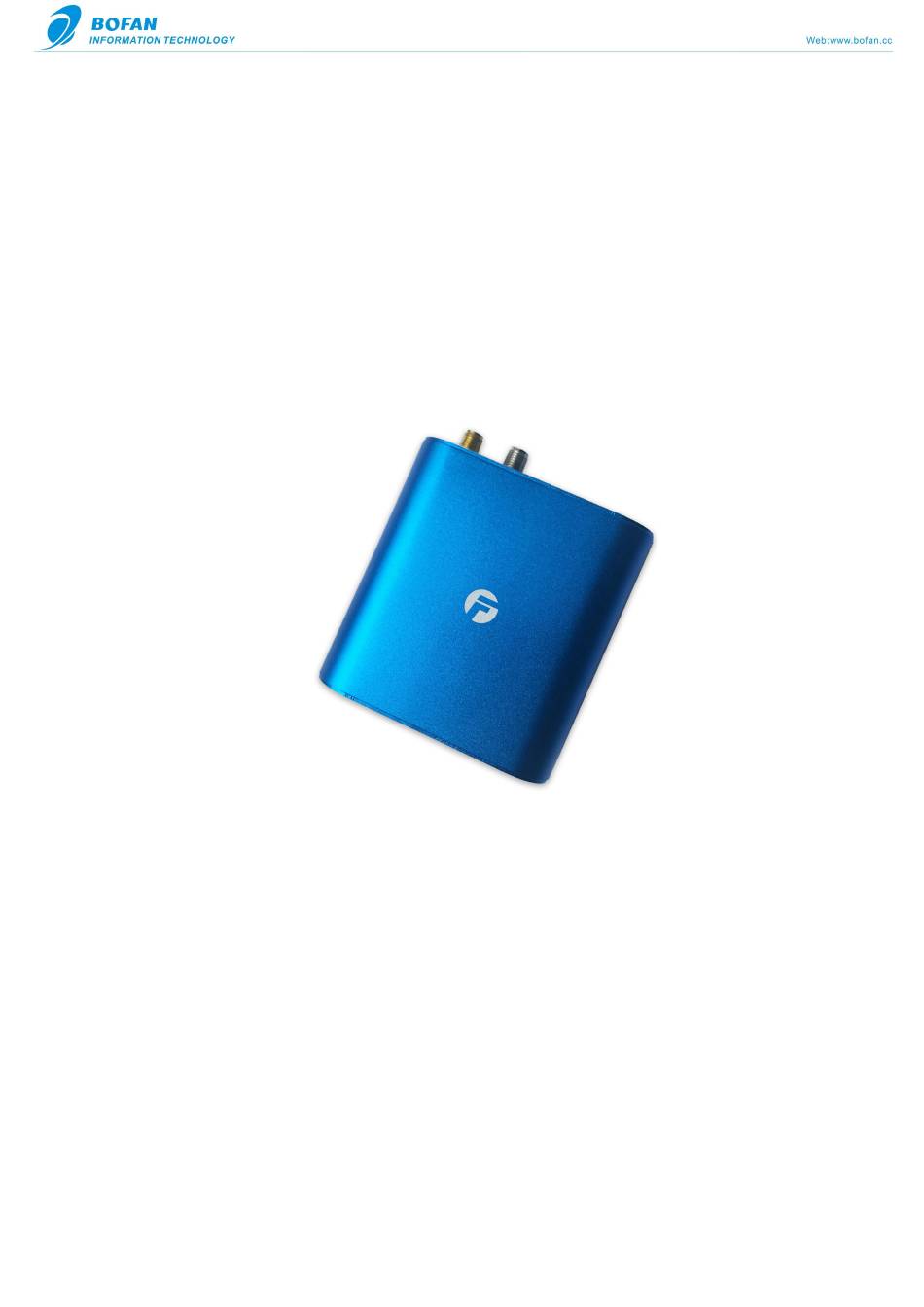

  • Page 1 PT502S- 4G GPS Vehicle Tracker User Manual...

  • Page 2: Table Of Contents

    Contents Contents ..................................2 1. Introduction ................................3 1.1 Attention ................................3 1.2 Instructions of safety ............................3 1.3 Terminology ..............................3 2. Basic Description ..............................3 2.1 Standard Package ............................4 2.2 Basic Structure ..............................4 2.3 Specification ..............................5 2.4 Features ................................6 2.5 Application ...............................

  • Page 3: Introduction

    Use original parts, qualified batteries and peripheral equipment to avoid damages. BOFAN is not responsible for any harm caused by using wrong parts or cables. BOFAN shall not be liable to any responsibility for accidents caused by customers using the products.

  • Page 4: Standard Package

    2.1 Standard Package Main Unit GPS Antenna GSM Antenna Power Harness 2.2 Basic Structure External Power(+) GND1 External Power(-) / GND Black GND2 Connect to SOS button SOS button White Negative Input2 Positive Input3 Orange Connect to vehicle ignition Connect to AD fuel sensor or any other analog input sensor Purple OUT1 Connect to extra relay...

  • Page 5: Specification

    2.3 Specification Items Specifications Standard package Weight 0.5KG Dimensions 104(L)x 78(W) x 26(H) mm Input Voltage DC 9V~36V/1.5A Back-up Battery 400mAh/3.7v, 8~24 hours depends on preset report interval Power Consumption 50mA standby current Operating Temperature Range -10°C to +60°C Storage Temperature Range -20°C to +70°C Humidity Up to 75% non-condensing...

  • Page 6: Features

    2.4 Features Manually tracking via SMS or automatically location update via SMS  Get Google Map link for current location by SMS request  Real-time online tracking in FMS platform via GPRS  Update position online via time interval, distance, angle, move ratio and ACC ratio ...

  • Page 7: Start Tracking

    When testing without external power supply, press the power button for 2seconds to turn on the tracker. GPS signal red light - indicating GPS signal status Keep on, no flashing GPS module power supply issue, or no any data from GPS module 2s ON and 2s OFF GPS signal lost 0.1s ON and 2.9s OFF...

  • Page 8: Tracking By Fms Platform

    4.2 Tracking by FMS platform Please ensure that the SIM card inside PT502S supports GPRS service and connection. If do real-time tracking on our platform, you need add the tracker’s IMEI number as tracker ID on FMS platform. 4.2.1 Add New Tracker on FMS Login FMS: open your FMS platform by IE and login with your account Go to “Settings”...

  • Page 9: Set Sim Card Apn

    Please click “Submit” button after you finish the basic information. 4.2.2 Set SIM card APN Generally after setting tracker ID only, it can connect with our platform with the default settings, if not, then try to set APN in below format, please contact your local SIM provider to get the APN. SMS Command format : <password >APN<APN>, <User>, <Pass>...

  • Page 10: Sms Commands List

    If only set the 1st number, PT502S will send SMS and then call to this first number after pressing SOS  button. If set the 2nd or 3rd numbers too, PT502S will send SMS to all 3 numbers, only call to the 1 number ...
  • Page 11  Example：000000GOF0, to turn off this function. NOTE When car leaves out or enters a preset scope, PT502S will send one Geo-fence SMS to the preset SOS number. We strongly suggest set Geo-fence function on the platform. Set Mileage Alert Command <password>MLA<base mileage>,<increment>...
  • Page 12 Command <password>PTI<time interval> Remarks Time Interval =0 to turn off this function Time Interval =[120-65535] (unit: second) Example: 000000PTI300, PT502S will take photos every 300 seconds Optional: <password>PTI<time interval>,<resolution> Resolution: 1-3, default is 2 1: 160x128 2: 320x240 3: 640x480...
  • Page 13 000000AD1<10,Fuel Low,4 After you connect fuel sensor to PT502S AD1 wire, PT502S will send Fuel Low alarm SMS to SOS number when tracker get AD1 data <10%, but this alarm is effective only when input4 on (if you connect input4 to car ignition, then it means car ignition on).
  • Page 14 Command <password>SKA<index> Remarks Index = 1, to send shake alarm SMS to SOS number when PT502S shakes = 0, not to send shake alarm SMS to SOS number when PT502S shakes. NOTE PT502S with built-in motion sensor to support this function.
  • Page 15 If need set multi-tags, you can set them in one command, use comma to separate all IDs. Example: 000000AID0019254851,0019254852,0019254853,0019254854 (max 10 IDs in one setting), PT502S can support maximum 200 ID tags. If connects with buzzer, when swiping RFID card successfully, two short beeps will sound, if swiping card fails, a long beep will sound.

  • Page 16: Alert List

    Wrong password in your SMS or wrong SMS Write correct password or SMS format format The SIM in PT502S runs out of credit Recharge credit of the SIM card No SIM card Insert working SIM card. Check in phone that the SIM can send SMS message.
  • Page 17 Problem: Reply SMS starts with ‘Last…’ Possible Cause: Resolution: PT502S does not have clear view of the sky Move the antenna of the unit to a location where the sky is visible. PT502S is indoor Make it work in an open area outside...
