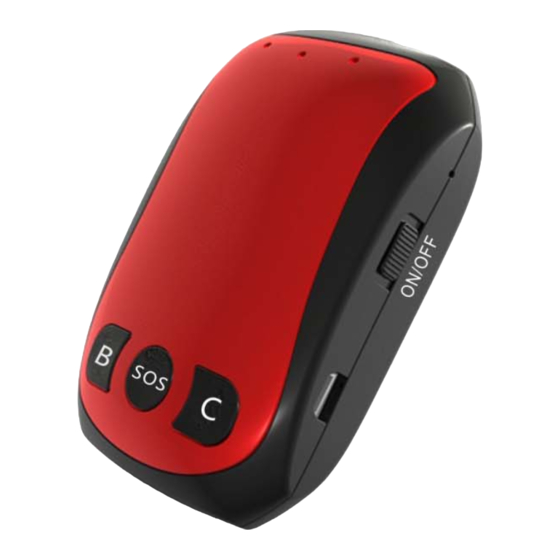

Bofan PT80 User Manual

Gps personal tracker
Hide thumbs Also See for PT80:
Table of Contents

Advertisement

Quick Links

Download this manual
PT80 User Manual
Document Title PT80 User Manual
Version 1.42.6
Date 2014-01-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT80 and is the answer not in the manual?

Questions and answers

Related Manuals for Bofan PT80

Summary of Contents for Bofan PT80

  • Page 1 PT80 User Manual Document Title PT80 User Manual Version 1.42.6 Date 2014-01-01...

  • Page 2: Table Of Contents

    Contents Contents ..........................II  1. Introduction.......................... 1  1.1 Attention......................... 1  1.2 Instructions of safety....................1  1.3 Terminology........................2  2. Basic Description........................ 2  2.1 Standard Package......................2  2.2 Basic Structure ......................3  2.3 Specification........................4  2.4 Features ........................5  3. Installation and Operation ....................5  4.

  • Page 3: Introduction

    To avoid mechanical damage, it is advised to transport the BOFAN tracker in an impact-proof package. Before usage, the tracker should be placed so that its LED indicators are visible, which show the status of operation the tracker is in.

  • Page 4: Terminology

    2. Basic Description PT80 is a compact size GPS tracking device which is specially developed and designed for tracking Kids, Elder or People who need tracking service. It is especially well designed to work with Bofan Web-based tracking software platform FMS which is suitable for a company to establish their own tracking platform to provide real-time tracking service to their clients, targeting large sales teams, students, camping teams, travel teams etc.

  • Page 5: Basic Structure

    2.2 Basic Structure...

  • Page 6: Specification

    2.3 Specification Items Specifications Weight 0.05KG (only for main device, without accessories) Dimensions 65(L) x 42(W) x 20(H) mm Input Voltage DC 5V/2A Back-up Battery 1000mAh / 3.7V Power Consumption 50mA standby current Charging connector DC 5V (USB port) Operating Temperature Range -10°C to +60°C Storage Temperature Range -20°C to +70°C...

  • Page 7: Features

    It is a GSM card not CDMA card. And please disable the SIM card PIN code. Open cover of PT80 and install the SIM card into the main unit, after that, you can close the cover and to turn on...

  • Page 8: Start Tracking

    No GSM signal ( on for 2 seconds and off for 2 seconds) Blue light Flashing PT80 is connected to the GSM network (on for 0.1 second and off for 2.9 seconds) Green Light - indicating GPS signal status Green light Flashing...
  • Page 9 2. Tracker will hang up automatically after several rings, then replies a position SMS to your mobile phone. Note: if you don’t like the tracker reply a message after calling, you can send command 000000OPT0 to close this function, if you want to restore this function later, you can send command 000000OPT1 to activate this function again.
  • Page 10 Note: when tracker doesn’t get GPS signal, it will reply a SMS starts with “Last”, which means this data is for the last place where the tracker got GPS signal successfully. Above two methods just got coordinate for position, you can locate this position in your FMS or http://demo.livegts.com which includes the Google map, manually input the latitude and longitude what you get from this reply SMS and click the "Locate"...

  • Page 11: Tracking By Fms Platform

    4.2 Tracking by FMS platform Please ensure that your SIM card in PT80 supports GPRS connection. If you want to do live tracking on platform, you need strictly to add new tracker, set tracker ID, tracker SIM card APN, FMS server, tracker Port and time interval as below steps 4.2.1~4.2.5.

  • Page 12: Set Tracker Id By Sms

    Example: Sending SMS command 000000APNCMNET to set the tracker SIM card APN. PT80 will reply with an SMS “SET OK, APN: CMNET, USER: PASS : ”. Note: CMNET is China mobile’s APN, no username & password for it. You can ask your GSM operator for their SIM card GPRS connection APN, username and password, if it has user name and password;...

  • Page 13: Sms Commands List

    VER=Version. Example: 000000VER Get current location Command <password>RCP Remarks Get current location’s latitude and longitude of PT80 Example: 000000RCP Voice Monitoring Command <password>TEN Remarks PT80 SIM card will call your mobile after you send the command to PT80, you can answer...
  • Page 14 If only set the 1st number, PT80 will send SMS and then call to this first number after pressing SOS button. If set the 2nd or 3rd numbers too, PT80 will send SMS to all 3 numbers, only call to the number after press SOS button.
  • Page 15 Index4=1, to take photo 0, do not take photo Example 000000SALSLP100 That means, when there is sleep alarm, PT80 will send enter sleep alarm on platform, no send alarm SMS to SOS number, no call to SOS number Shake Alarm(or Move Alarm) Command <password>SKA<index>...

  • Page 16: Trouble Shooting

    It means tracker will enter deep sleep mode if it keep still for over 300s Deep sleep means GSM module will also not work. tracker can wake up only by shaking PT80 will enter sleep mode if keep still for 300s by default Note...

  • Page 17: Safety And Disclaimer

    You are welcomed to contact your sales representative in our company or email us at sales@bofan.cc if there is...
  • Page 18 any question.
