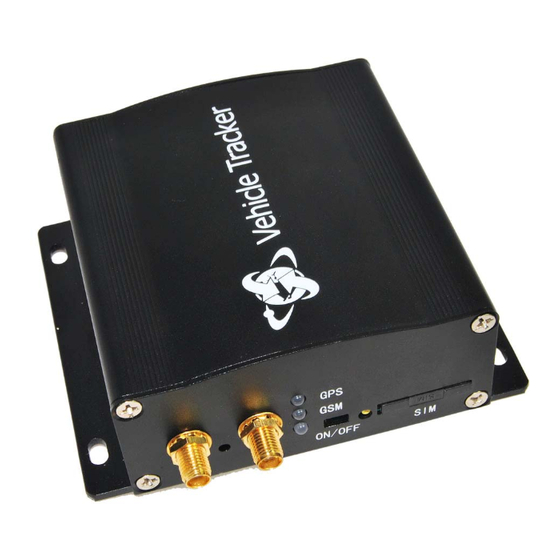

Bofan PT600X User Manual

Gps vehicle tracking device
Hide thumbs Also See for PT600X:
Table of Contents

Advertisement

Quick Links

PT600X User Manual
Document Title PT600X User Manual
Version 1.42.6
Date 2014-01-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT600X and is the answer not in the manual?

Questions and answers

Related Manuals for Bofan PT600X

Summary of Contents for Bofan PT600X

  • Page 1 PT600X User Manual Document Title PT600X User Manual Version 1.42.6 Date 2014-01-01...

  • Page 2: Table Of Contents

    Contents 1. Introduction .......................... 1 1.1 Attention ......................... 1 1.2 Instructions of safety ....................1 1.3 Terminology ........................2 2. Basic Description ........................ 2 2.1 Standard Package ......................2 2.2 Basic Structure ......................3 2.3 Specification ........................3 2.4 Features ......................... 4 2.5 Application ........................

  • Page 3: Introduction

    To avoid mechanical damage, it is advised to transport the BOFAN tracker in an impact-proof package. Before usage, the tracker should be placed so that its LED indicators are visible, which show the status of operation the tracker is in.

  • Page 4: Terminology

    2. Basic Description PT600X is an improved version based on PT600, it is a GPS/GSM/GPRS tracking tracker which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GSM modules, PT600X has good sensitivity and stable performance. Especially, PT600X is well designed to work with FMS, which is suitable for a company to establish their own tracking platform to provide real-time tracking service to their customers or manage their fleets.

  • Page 5: Basic Structure

    2.2 Basic Structure Anode Ext. Power(+) GND1 Ext. Power(-) / GND Black GND2 Be connected to SOS button Can connect to fuel sensor Can connect to temperature sensor Blue Can connect to alcohol sensor Can connect to any other analog input sensor Output1 Can connect to relay Output2...

  • Page 6: Features

    Operating Temperature Range -10° C to +60° C Storage Temperature Range -20° C to +70° C Humidity Up to 75% non-condensing Back-up Battery work time 8~24 hours depends on preset report interval GSM Frequency GSM 850/900/1800/1900MHz GPRS Multi-slot Class 8(4Rx, 1Tx, 5 slot Max.) Support all 4 coding schemes(CS-1, CS-2, CS-3 and CS-4) ·...

  • Page 7: Application

     Take photo automatically when SOS or Geo-fence or any other alarm triggered  Update door open/close status, available to control open/close vehicle door by SMS or platform  Available to set different alarm notification ways, such as via SMS, call or email ...
  • Page 8 Second step, connection Basic connection as the following table is NEEDED: Connect the GSM Antenna Connect the GPS Antenna, put Connect the wires to tracker, and the GPS antenna black side also connect red wire to vehicle upside face the sky battery (+), black wire to vehicle battery (-).

  • Page 9: Start Tracking

    ( on for 2 seconds and off for 2 seconds) does not fix RED light Flashing PT600X is connected to the GSM network (on for 0.1 second and off for 2.9 seconds) PT600X does not connect to server Green light Flashing...
  • Page 10 2. Tracker will hang up automatically after several rings, then replies a position SMS to your mobile phone. Note: if you don’t like the tracker reply a message after calling, you can send command 000000OPT0 to close this function, if you want to restore this function later, you can send command 000000OPT1 to activate this function again.

  • Page 11: Tracking By Fms Platform

    Note: it will cause GPRS cost for your mobile. 4.2 Tracking by FMS platform Please ensure that your SIM card in PT600X supports GPRS connection. If you want to do live tracking on platform, you need strictly to add new tracker, set tracker ID, tracker SIM card APN, FMS server, tracker Port and time interval as below steps 4.2.1~4.2.5.

  • Page 12: Set Tracker Id By Sms

    FMS (here the tracker ID starts with 115 just for example), and total numbers should less than 10.  Model: must select the correct model number PT600. (No PT600X option, just select PT600.) Please remember to click ― Modify‖ button after you input all information.

  • Page 13: Set Fms Server And Tracker Port By Sms

    PT600X’s input4 to vehicle ignition wire, and send SMS command 000000GTI30,0,0,0,240 to tracker, and then PT600X will update position to FMS very 30 seconds when vehicle ignition is ON, and every 2 hours when vehicle ignition is OFF (30seconds x 240=7200seconds=2hours).

  • Page 14: Accessories

    After done all above settings, please login your FMS to track it online now. If it still show ―NO DATA‖ in FMS after few minutes, please send below four SMS commands to tracker for confirming tracker’s setting:  command: 000000ASKGID Tracker will reply you ―Query Parameter OK, GIDXXXXX‖, please check if it is the correct tracker ID number what you added in FMS, if no, please send new command 0000000GID with correct ID number again.

  • Page 15: Accessories Connection

    Sensor Sensor Normal Camera Circular Camera Conch Camera Rectangular Camera Conversion (Infrared) (Infrared) Camera (Infrared) Cable 5.2 Accessories connection  Microphone: plug-in tracker interface where marked MIC  Speaker: plug-in tracker interface where marked SPK  Normal camera: plug-in tracker interface where marked Camera ...

  • Page 16: Accessories Operation

    5.3 Accessories operation  SOS: sending SMS command 000000SOS,13112374567 to set phone number for receiving SOS alarm by SMS and call. Once you press the SOS button (black button in plug-in wires), will get SOS alarm on phone 13112374567.  Microphone: Voice monitoring ...
  • Page 17 Please don’t use this feature while car/vehicle with high-speed driving, and we suggest connect relay with fuel control line in your car, Bofan is not liable for any traffic accidents.  Buzzer:  Sending SMS command 000000OPC2,1 to tracker to trigger buzzer for one time ...

  • Page 18: Sms Commands List

    Extending use of two-way communication Command <password>TEM2 Remarks If you want to save credit of SIM card number in PT600X, you can send this command, then dial out from your mobile phone to PT600X’s SIM card number for two way communication Voice Monitoring Command <password>TEN...
  • Page 19 SOS button.  If set the 2nd or 3rd numbers too, PT600X will send SMS to all 3 numbers, only call to the 1 number after press SOS button. Note: <password>SOS, command is for cancel all pre set numbers.
  • Page 20 After setting time zone into tracker, you can get your local time in tracker reply message. Restart Command <password>RST<Type>  Remarks Type=0 or null, to reboot PT600X  Type=1 to reboot GPS  Type=2 to reboot GSM Reset PT600X to default Command <password>DFT...
  • Page 21 Index1 in above AN command Default Setting: 000000SALIN11110 000000SALIN21110 000000SALIN31110 000000SALIN40000 000000SALIN50000 Example 000000SALIN11110 That means, when input 1(SOS key) is pressed, PT600X will send SOS alarm on platform, send alarm SMS to SOS number, call to SOS number, but do not take photo...
  • Page 22 Example 000000AD1<10,Fuel Low,4 After you connect fuel sensor to PT600X AD1 wire, PT600X will send Fuel Low alarm SMS to SOS number when tracker get AD1 data <10%, but this alarm is effective only when input4 on (if you connect input4 to car ignition, then it means car ignition on).
  • Page 23 (Please get the correct APN of SIM card in tracker from your SIM card provider) Set Server Command <password>SVR<domain>,<Port> Remarks Domain: the tracking platform domain name Port: 8600, fixed for PT600X Set Time Interval Command <password>GTI<Time Interval>,<Distant Interval>, <Angle>,<Move Ratio>,<ACC Ratio>  Remarks Time Interval =[5-65535] (unit: second);...

  • Page 24: Trouble Shooting

    Problem: Reply SMS starts with ‘Last…’ Possible Cause: Resolution: PT600X does not have clear view of the sky Move the antenna of the unit to a location where the sky is visible. PT600X is indoor Make it work in an open area outside...
