Bofan PT520 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PT520
User manual
I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT520 and is the answer not in the manual?

Questions and answers

Related Manuals for Bofan PT520

Summary of Contents for Bofan PT520

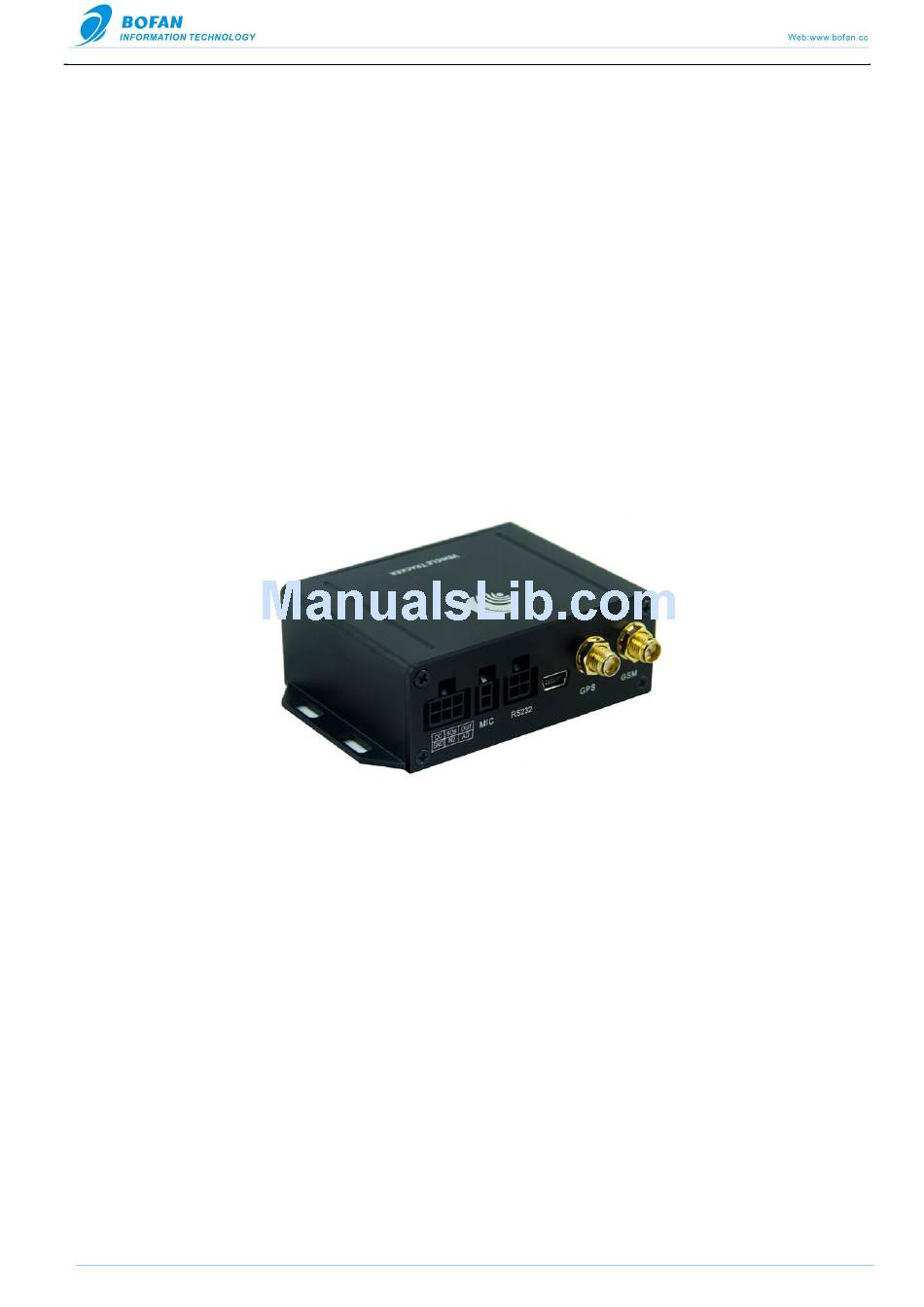

  • Page 1 PT520 User manual...

  • Page 2: Table Of Contents

    Catalogue ...................................... II ATALOGUE COPYRIGHT AND DISCLAIMER ............................1 1. BASIC DESCRIPTION ..............................1 ..................................1 1.1 A PPLICATION ....................................2 1.2 F UNCTION 1.3 P ..................................2 ACKING LIST 1.4 S ..................................3 PECIFICATION 2. INSTALLATION AND OPERATION ..........................3 2.1 I ..............................

  • Page 3: Copyright And Disclaimer

    Thank you very much for selecting BOFAN GPS tracker. Please read this user manual carefully before using it, to ensure correct installation and operation. The newest edition will be released with the newest product. In no event shall BOFAN be liable for direct, indirect damages arising out of the use or inability to use the product. Kindly reminder ...

  • Page 4: Function

    1.2 Function  Timing tracking  Fixed distance tracking  Turning angle tracking  Text message tracking  Input alarm  Low power supply alarm  Power cut off alarm  Over speed alarm  Hard accelerate alarm  Mileage alarm ...

  • Page 5: Specification

    1.4 Specification Dimension 72(L)*53(W)*27(H)mm Net weight 150g Power supply DC 9V~36V/1.5A Back-up battery 600mAh/3.7V Power consumption 50mA standby current Operating Temperature -10°C to +60°C Basic information Storage Temperature -20°C to +70°C Humidity Up to 75% non-condensing GPS LED&GSM LED Memory Save 16,000 waypoints Motion sensor Digital input...

  • Page 6: Install The Power Line

     Please install the terminal in the car, So as to keep dry 2.1 Install the power line Fig.1 Port description Power line Function Specification 1—DC Red cable Power input 9VDC~36VDC，Ext. Power(+) 2--GND Black cable Ext. Power(-) 3—SOS White cable Low effective 4—IN2 Orange cable...

  • Page 7: Install The Sim Card

    2.2 Install the SIM card Fig.2 SIM card installation 1/5: Open the back shield Fig.3 SIM card installation 2/5: Open SIM card slot...
  • Page 8 Fig.4 SIM card installation 3/5: Install SIM card Fig.5 SIM card installation 4/5: Lock SIM card slot...

  • Page 9: Install Antenna

    Fig.6 SIM card installation 5/5: Install the back shield 2.3 Install Antenna Fig.7 Install antenna GPS antenna and GSM antenna installed as shown above, note: The GSM antenna should be installed in the open position without metal shield, and should be away from of the interference source of power supply.

  • Page 10: Turn On The Tracker

    2.4 Turn on the tracker When external power connected, terminal will power on automatically; When testing without external power supply, press “Power Key” for at last 2seconds to power on terminal. “Power Key” is descript as the following figure Fig.8 Power key GPS signal red light - indicating GPS signal status Keep on, no flashing GPS module power supply issue, or no any data from GPS module...

  • Page 11: Set The Necessary Command

    Fig.9 Add terminal to LiveGTS 2.6 Set the necessary command After installation and terminal power-on, it is needed to set the following parameters by the text message and debug tool, which is described as the following table, to connect the terminal to the tracking platform; Default password is “000000”. Set tracker ID Format <password>GID<ID>...

  • Page 12: Start Tracking On Livegts

    04. mss_off_ratio: Ratio under static state; After setting, terminal uploads GPRS data every base_int second under moving state, while (base_int * mss_off_ratio) second under static state; This parameter is valid in terminal with Motion Sensor. 05. acc_off_ratio: Ratio under ACC OFF state; After setting, terminal uploads GPRS data every base_int second when ACC ON, while (base_int * acc_off_ratio) second when ACC OFF;...
  • Page 13 Fig.10 Tracking in LiveGTS...

  • Page 14: Optional Accessories

    3. Optional accessories 3.1 Optional accessories list Relay (12V & 24V) Buzzer Wired Door Sensor Microphone Fuel Sensor Sets Temperature Sensor Temperature Sensor Alcohol Sensor Camera 3.2 Accessories connection  Relay: as the following figure, available available connection to output Fig.11 Relay installation ...

  • Page 15: Sms Commands List

    Microphone: Connect to “MIC” port  Camera: Connect to “RS232” port 4.SMS Commands List Note: 1. The terminal default password is 000000 2. Any other questions, please contact with support@bofan.cc VER-Query version Command <password>VER RCA-Get current address Command <password>RCA IME-Query IMEI Command <password>IME...
  • Page 16 05 acc_off_ratio: Ratio under ACC OFF state; After setting, terminal uploads GPRS data every base_int second when ACC ON, while (base_int * acc_off_ratio) second when ACC OFF; 06 If both acc_off_ration and mss_off_ratio are set, terminal uploads data depend on ACC, i.e., mss_off_ratio is useless if acc_off_ration!=0;...
  • Page 17 Command <password>AV<index><min_volt>,<max_volt> Remarks 01 index: AD input index, the value is 1 02 min_volt: Voltage corresponds to 0% of input range, unit V 03 max_volt: Voltage corresponds to 100% of input range, unit V CSV-Clear the GPRS blind area storage data Command <password>CSV<option>...
  • Page 18 Remarks 01 cam_ID: Camera ID, range 1~4, multi-camera is supported. 02 cam_ID=0 or empty: all cameras take photo in sequential order. 03 resolution: resolution of photography, when this section is empty, default resolution is used. 1—160*128 2—320*240(default set) 3—640*480 PTI-Timing Photography Command <password>...
