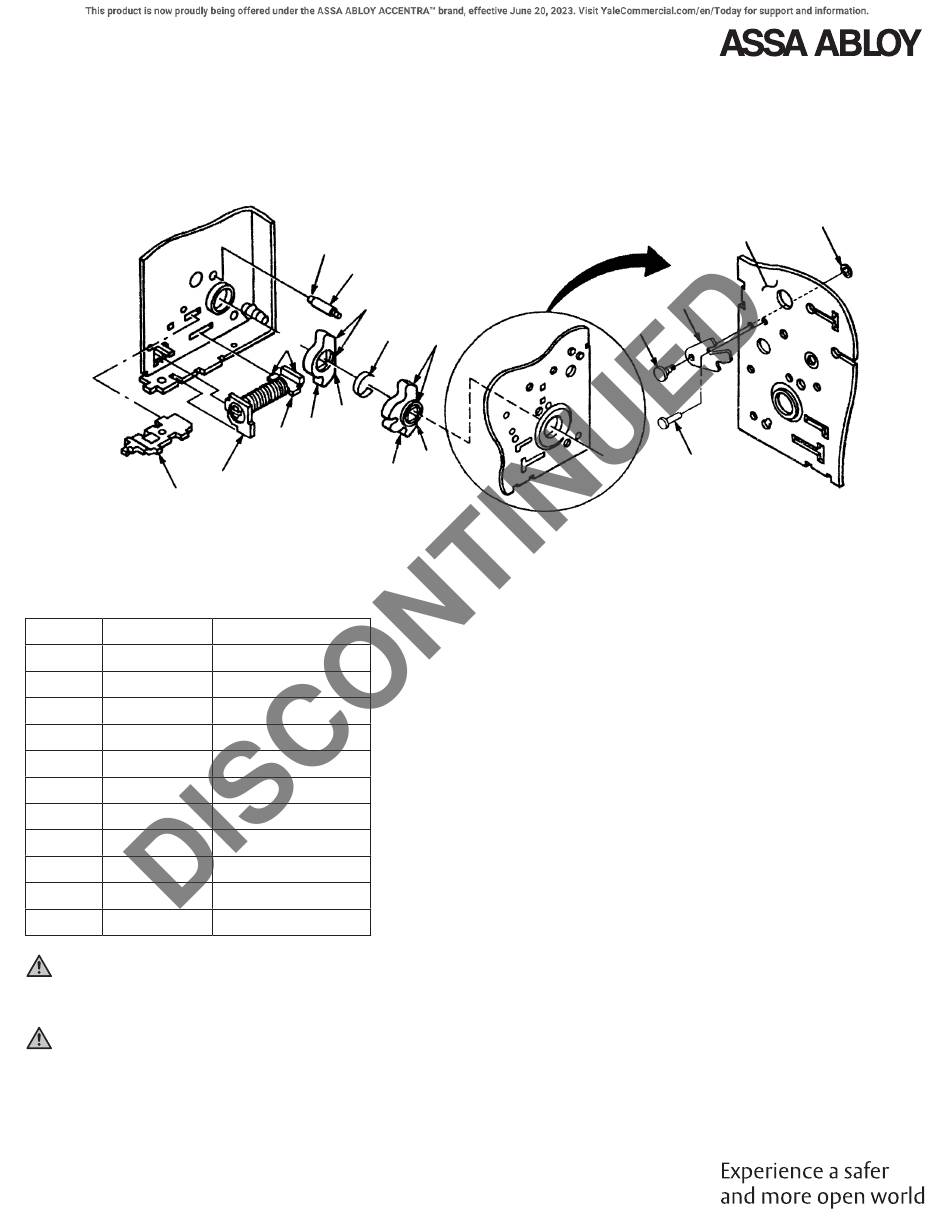

Assa Abloy 87FL Installation Instructions

87FL Conversion Kit
For Mechanical Locks and Electrified Locks
To Change from Knob Trim to Lever Trim
Installation Instructions
Lock Case
26
Parts List
Item No. Part No.
22 50-4601-1005 Hub Aligning Ring
26 50-4602-1012 Stop Plunger
27 50-8700-1052 Lever Stop Pin
29 50-4602-1004 Lever Locking Hub
30 50-4601-1004 Lever Hub
31 50-4601-0223 Spring Cage Assembly
38 50-4601-6029 Fuse Pin (Lead)
39 50-4601-7153 Pivot (Stainless Steel)
40 50-4601-7028 Fire Stop Lever
41 99-9999-4638 Retaining Ring
42 99-9901-0100 Lubricant
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65warnings.ca.gov.
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening,
and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific situation. When
retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a
code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
1-800-438-1951 • www.assaabloy.com
Copyright © 1992, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Mechanical Locks 46, 8600, 8700 Series Mortise Locks
Square End
27
L
22
L
30
L
29
31
RH LOCK SHOWN
Description
PARTS INCLUDED IN KIT
L = Lubricate
L
L
1. Remove three screws from cover. Remove cover by lifting up and moving away from lock
front. (Note position of all Internal components.)
2. Remove exsisting hubs and replace with new hubs 29 and 30, and 22 hub aligning ring.
Be sure to place the locking hub 29 on the cylinder or locked side of the case. (Remove
all foreign material and old lubricant from case. Use the lubricant packed with the kit to
lubricate all areas noted with "L".)
Insert the spring cage assembly 31. Align spring cartridge against hubs first, then compress
3.
spring and insert front into slots in case as shown.
4. Insert lever stop pin 27 in hole shown. Square end goes into hole in the case, tapered end
acts as guide when installing cover.
5. Assemble fire stop lever 40 to cover with pivot (stainless steel) 39 and its retaining ring 41.
Install fuse pin (lead) 38 and peen over as shown in illustration on page 3.
6. Install new stop plunger 26 (note how old stop plunger is oriented in lock). New stop plunger
is heat treated to with stand the added force that can be applied with the lever handle.
7. Replace cover. All parts must be in alignment with the positioning slots or openings in the
cover. Do not force. Once the cover is firmly seated, insert and tighten three attaching screws.
8. Check lock to see that it operates properly.
9. Lock is now ready for installation in the door with new lever/spindle assembly.
IMPORTANT:
ALL STEPS MUST BE FOLLOWED EXPLICITY TO MAINTAIN UL LISTING OF THE LOCK ASSEMBLY.
Inside Face
of Cover
40
39
38
Lock Cover
ROTATED 90˚
41
80-9086-0015-010 01/24
