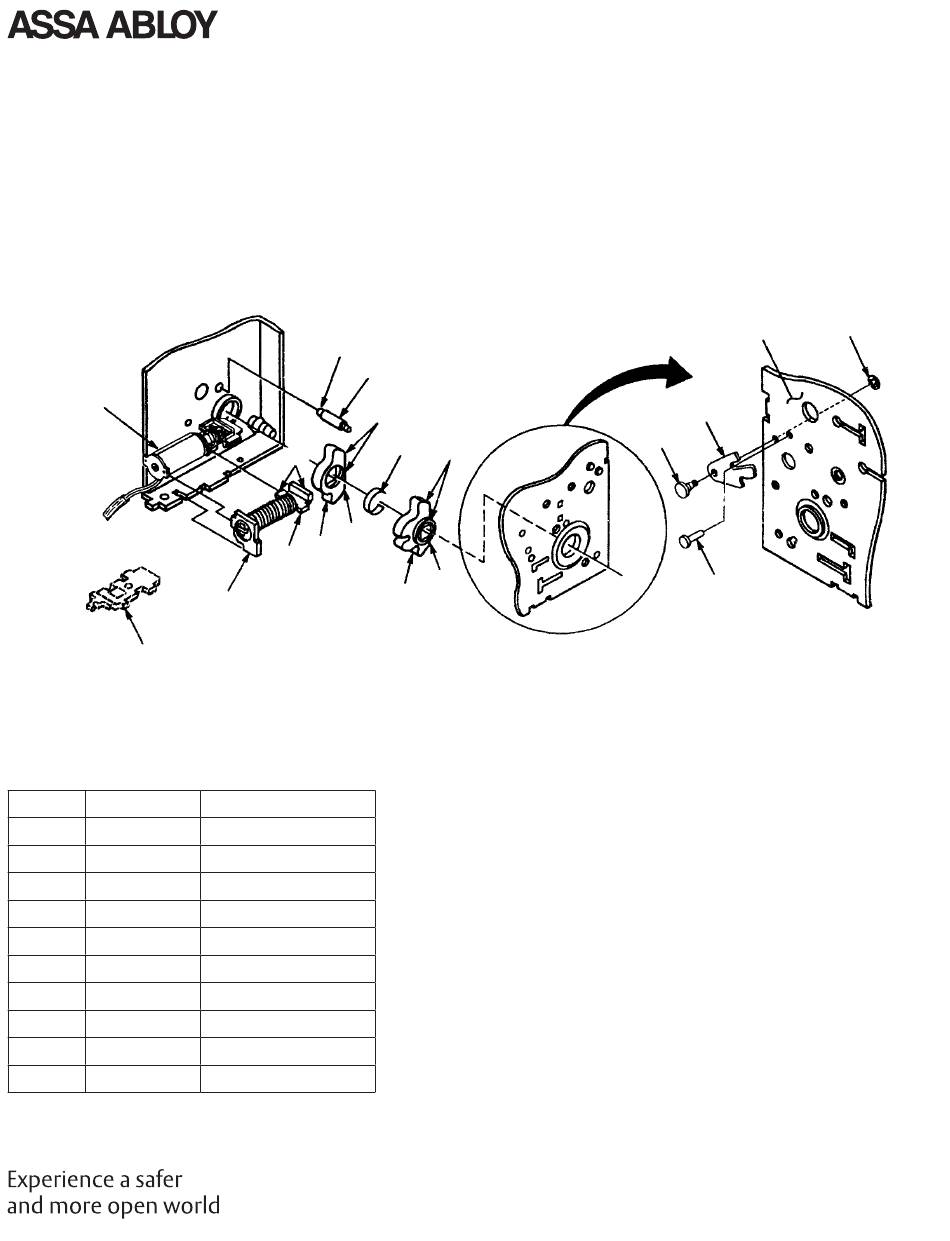

Assa Abloy 87FL Installation Instructions page 2

Lock Case
Solenold
Item 26 is Not Required for Electrified Locks
Item No. Part No.
22 50-4601-1005 Hub Aligning Ring
27 50-8700-1052 Lever Stop Pin
29 50-4602-1004 Lever Locking Hub
30 50-4601-1004 Lever Hub
31 50-4601-0223 Spring Cage Assembly
38 50-4601-6029 Fuse Pin (Lead)
39 50-4601-7153 Pivot (Stainlesss Steel)
40 50-4601-7028 Fire Stop Lever
41 99-9999-4638 Retaining Ring
42 99-9901-0100 Lubricant
80-9086-0015-010 01/24
4680/90, 8680/90, 8780/90 Series Electric Mortise Locks
2600, 2700, 3100, 3900, 4100 Series Electronic Mortise Locks
Square
End
27
L
L
30
L
31
RH LOCK SHOWN
Description
For Mechanical Locks and Electrified Locks
To Change from Knob Trim to Lever Trim
Electrified Locks
PARTS INCLUDED IN KIT
L = Lubricate
22
L
L
29
1. Remove three screws from cover. Remove cover by lifting up and moving away from lock
front. (Note position of all Internal components. Pay particular attention to solenoid and
stop plunger.)
2. Remove exsisting hubs and replace with new hubs 29 and 30, and 22 hub aligning ring.
Be sure to place the locking hub 29 on the cylinder or locked side of the case. (Remove
all foreign material and old lubricant from case. Use the lubricant packed with the kit to
lubricate all areas noted with "L". Do not get lubricant on solenold plunger.)
3. Insert the spring cage assembly 31. Align spring cartridge against hubs first, then compress
spring and insert front into slots in case as shown.
4. Insert lever stop pin 27 in hole shown. Square end goes into hole in the case, tapered end
acts as guide when installing cover.
Assemble fire stop lever 40 to cover with pivot (stainless steel) 39 and its retaining ring 41.
5.
Install fuse pin (lead) 38 and peen over as shown in illustration on page 3.
6. Replace cover. All parts must be in alignment with the positioning slots or openings in the
cover. Do not force. Once the cover is firmly seated, insert and tighten three attaching screws.
7. Check lock to see that it operates properly. (Be careful solenoid wires are not pinched or
damaged by spring cage assembly 31.)
8. Lock is now ready for installation in the door with new lever/spindle assembly.
IMPORTANT:
ALL STEPS MUST BE FOLLOWED EXPLICITY TO MAINTAIN UL LISTING OF THE LOCK ASSEMBLY.
Copyright © 1992, 2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
2
87FL Conversion Kit
Installation Instructions
Inside Face
of Cover
40
39
38
Lock Cover
ROTATED 90˚
1-800-438-1951 • www.assaabloy.com
41
