Assa Abloy ACCENTRA 197 Installation Instructions

N° 197 and 197-1/4 Boltlock
Auxiliary Deadbolt
Installation Instructions
General Info
For wood doors 1-3/8" to 2-1/4" (35mm to 57mm) thick with wood frames.
N 1
o
N 1
o

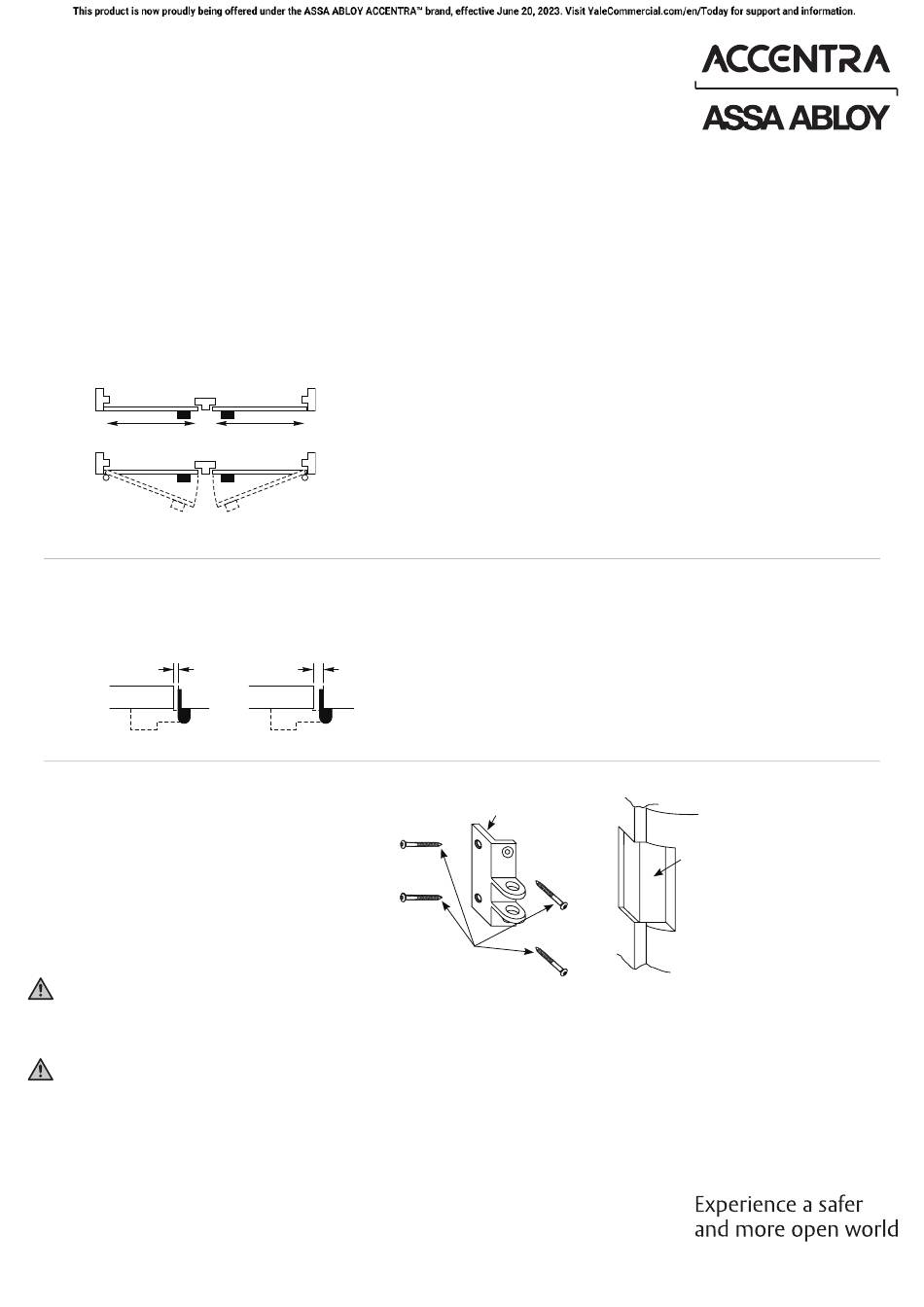

1. Determine Strike Mount
A. Determine if strike is mortised or surface mounted. (See illustrations above.)
1/8" (3mm)
or less
2. Strike Installation
A. Determine desired height of lock.
B. Determine gap between door and frame.
C. Install strike.
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65warnings.ca.gov.
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY ACCENTRA™ makes no representations or warranties concerning what such impact may be in any
specific situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated
opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with
all applicable codes and ratings.
1-855-557-5078 • www.accentra-assaabloy.com
Copyright © 2018-2024, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or
in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
Use 197F Flat Strike and 97 Spacer Plate For Other Applications:
N 2
o
Doors Opening Outward
Hollow Metal Doors and Frames
Pairs of Doors Opening Inward
N 2
o
Pairs of Doors Opening Outward
Pairs of Sliding Doors
Sliding Doors on Outside of Frame
More than
1/8" (3mm)
Strike
Attaching
Screws
Mortise to suit.
This
surface
flush with
door.
80-9350-0003-000 01/24
