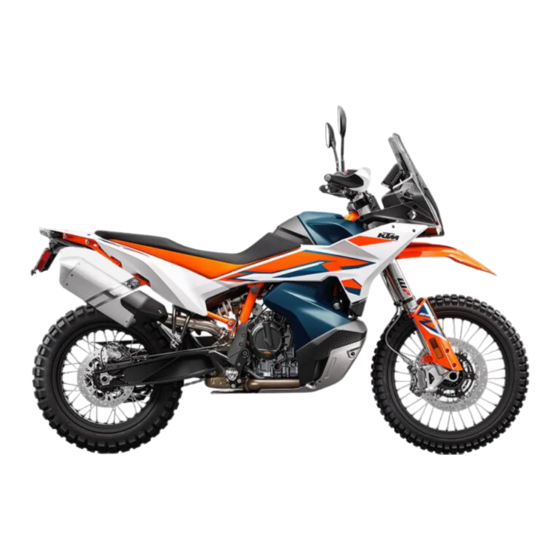

KTM 890 ADVENTURE R 2023 Setup Instructions
  1. Manuals
  2. Brands
  3. KTM Manuals
  4. Motorcycle
  5. 890 ADVENTURE R 2023
  6. Setup instructions

KTM 890 ADVENTURE R 2023 Setup Instructions

Hide thumbs Also See for 890 ADVENTURE R 2023:

Advertisement

Quick Links

Download this manual
SETUP INSTRUCTIONS
2023
890 ADVENTURE R
Art. no. 3214823en

Advertisement

loading
Need help?

Need help?

Do you have a question about the 890 ADVENTURE R 2023 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KTM 890 ADVENTURE R 2023

Summary of Contents for KTM 890 ADVENTURE R 2023

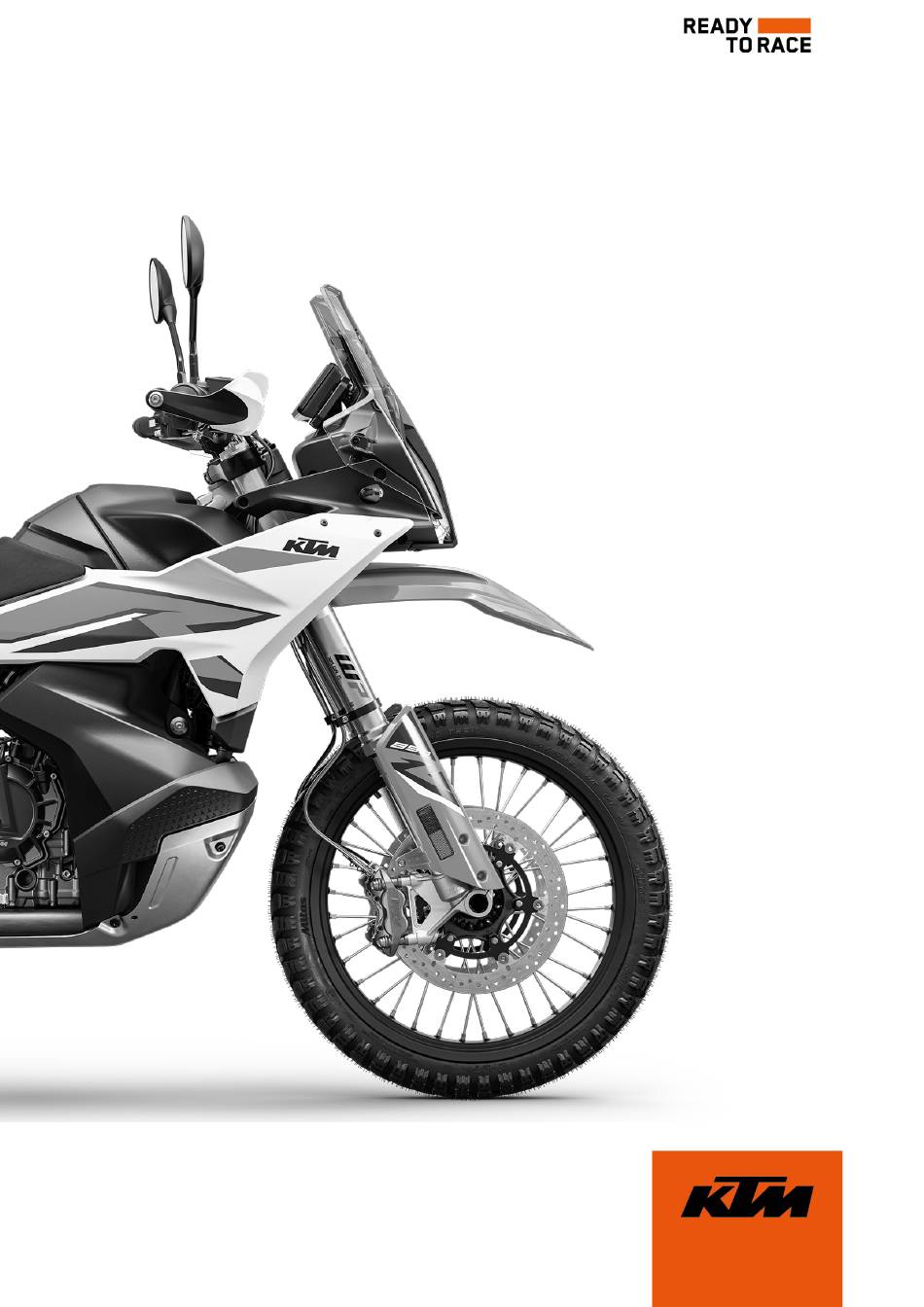

  • Page 1 SETUP INSTRUCTIONS 2023 890 ADVENTURE R Art. no. 3214823en...
  • Page 3 KTM accepts no liability for delivery options, deviations from fig- ures and descriptions, misprints, and other errors. The models portrayed partly contain special equipment that does not belong to the regular scope of supply.

  • Page 4: Means Of Representation

    1 MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
  • Page 5 To operate the vehicle, the vehicle electronics must be enabled. This process is conducted during initial setup in KTM Dealer.net. Enabling ensures that the initial setup in KTM Dealer.net is docu- mented. Enabling can be performed either temporarily, e.g. for a test ride, or permanently for vehicle handover.
  • Page 6 2 SETUP – Roll down the film at the sides. Guideline To avoid damaging the vehicle while setting it up, do not remove the protective film on each component until installing the component, and leave it on the vehicle until work has been completed.
  • Page 7 SETUP 2 – Mount the right hand guard. Guideline Hand guard fitting 6 Nm (4.4 lbf ft) Hand guard screw 25 Nm (18.4 lbf ft) F02129-01 – Mount the left hand guard. Guideline Hand guard fitting 6 Nm (4.4 lbf ft) Hand guard screw 25 Nm (18.4 lbf ft) F02130-01...
  • Page 8 2 SETUP Guideline Screw for throttle 3.5 Nm grip (2.58 lbf ft) Screw, combination 5 Nm (3.7 lbf ft) switch, right Info Pay attention to the markings on the handlebar. Make sure the cables and wiring are positioned cor- rectly. –...
  • Page 9 SETUP 2 (EU) – Mount reflector with rubber bushings and tension washers on the license plate holder – Position the license plate bracket on the license plate sup- port. – Mount and tighten screws Guideline Screw, license 5 Nm (3.7 lbf ft) plate holder Loctite ®...
  • Page 10 2 SETUP – Remove the labels from the brake line and the frame. – Unpack and mount the KTM PowerParts included in the deliv- ery (optional). Info Read the accompanying KTM PowerParts fitting instruc- tions. – Attach the stickers included in the scope of supply (optional).
  • Page 11 WORK 3 Adjusting the handlebar position Warning Danger of accidents A repaired handlebar poses a safety risk. If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a result. – Change the handlebar if the handlebar is damaged or bent. –...

  • Page 12: Mounting The Seat

    3 WORK Mounting the seat – Hook holding lug of the seat onto the fuel tank, lower the rear and push it forward. – Insert locking pin into the lock housing and push down the rear of the seat until the locking pin engages with a click. –...
  • Page 13 WORK 3 Closing the storage compartment on the left Main work – Close the storage compartment. – Raise elastic fastener and hang up in area F03286-10 Finishing work – Install the left side cover. ( p. 11) – Mount the seat. ( p.
  • Page 14 3 WORK Removing the right side cover Preparatory work – Remove the seat. ( p. 9) Main work – Remove the side cover from the rubber bushings in areas – Pull off the right side cover sideways and remove it toward the front.
  • Page 15 WORK 3 3.10 Closing the storage compartment on the right Main work – Close the storage compartment. – Raise elastic fastener and hang up in area F03288-10 Finishing work – Install the right side cover. ( p. 13) – Mount the seat. ( p.
  • Page 16 3 WORK 3.12 Removing the main silencer – Remove screw – Remove the clamp. R06157-10 – Remove screw with the washer. – Take off the main silencer. R06211-11 3.13 Installing the main silencer – Position the main silencer with the gasket. –...
  • Page 17 WORK 3 – Tighten screw Guideline Screw, main silencer 25 Nm (18.4 lbf ft) holder R06211-10 3.14 Removing the battery cover Preparatory work – Remove the seat. ( p. 9) Main work – Remove screws with the bushings. – Remove the battery cover from above. Z03264-10 3.15 Installing the battery cover...

  • Page 18: Charging The 12-V Battery

    3 WORK 3.16 Charging the 12-V battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep 12 V batteries out of the reach of children. – Wear suitable protective clothing and safety glasses. – Avoid contact with battery acid and battery gases. –...
  • Page 19 WORK 3 Alternative 2 UK battery charger XCharge‑professional (00029095052) Info Follow the instructions of the charger and the manual. – Disconnect the battery charger after charging the 12-V battery. Guideline The charging current, charging voltage, and charging time must not be exceeded. Recharge the 12-V battery 6 months regularly when the motorcy-...
  • Page 20 3 WORK Main work – Disconnect negative cable from the 12-V battery. G03707-10 3.18 Connecting the negative cable of the 12-V battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep 12 V batteries out of the reach of children. –...
  • Page 21 WORK 3 3.19 Installing the windshield – Hook windshield into area – Mount and tighten screws Guideline Remaining screws, 5 Nm (3.7 lbf ft) chassis – Mount and tighten screws Guideline Remaining screws, 5 Nm (3.7 lbf ft) Z03266-11 chassis 3.20 Removing the windshield –...
  • Page 22 3 WORK 3.22 Adjusting the headlight range Preparatory work – Check the headlight setting. ( p. 19) Main work – Turn adjusting screw to adjust the headlight range. Info Turn clockwise to reduce the headlight range; turn counterclockwise to increase the headlight range. If you have a payload, you may have to correct the headlight range.
  • Page 23 WORK 3 – Mount screws , but do not tighten yet. Guideline Screw, engine guard M6x8 8 Nm (5.9 lbf ft) – Tighten all the screws of the engine guard. Guideline Screw, engine M6x8 8 Nm (5.9 lbf ft) guard Screw, engine M6x10 10 Nm (7.4 lbf ft)
  • Page 24 3 WORK – Remove engine guard Guideline Pull the damping rubbers out of the cut-outs on both sides. Z03270-10 3.25 Refueling Danger Fire hazard Fuel is highly flammable. The fuel in the fuel tank expands when warm and can escape if overfilled. –...
  • Page 25 WORK 3 – Switch off the engine. – Open the fuel tank filler cap. ( p. 23) – Fill the fuel tank with fuel up to the lower edge of the filler neck. Total fuel tank 20 l Super unleaded capacity, approx.
  • Page 26 3 WORK – Lift cover of the fuel tank filler cap and insert the ignition key into the lock. Note Danger of damage The ignition key may break if overloaded. Damaged ignition keys must be replaced. – Push down on the fuel tank filler cap to take pressure off the ignition key.

  • Page 27: Technical Specifications

    TECHNICAL SPECIFICATIONS 4 chassis tightening torques Brake fluid reservoir cover, front 2 Nm (1.5 lbf ft) Brake fluid reservoir cover, rear 1.5 Nm (1.11 lbf ft) Compensating tank cover 1.1 Nm (0.81 lbf ft) Nut, valve ISO 10V2 12 Nm (8.9 lbf ft) Loctite ®...
  • Page 28 4 TECHNICAL SPECIFICATIONS Screw, license plate holder 5 Nm (3.7 lbf ft) Loctite ® 243™ Screw, lower rear panel 3 Nm (2.2 lbf ft) Screw, mask support 5 Nm (3.7 lbf ft) Screw, mask support cover 3.5 Nm (2.58 lbf ft) Screw, side stand sensor 2 Nm (1.5 lbf ft) Loctite...
  • Page 29 TECHNICAL SPECIFICATIONS 4 Screw, footrest bracket, rear 9 Nm (6.6 lbf ft) Loctite ® 243™ Screw, front brake disc 14 Nm (10.3 lbf ft) Loctite ® 243™ Screw, front wheel speed sensor 6 Nm (4.4 lbf ft) Screw, fuel pump 6 Nm (4.4 lbf ft) Screw, fuel tank clamp 3 Nm (2.2 lbf ft)
  • Page 30 4 TECHNICAL SPECIFICATIONS Screw, engine guard frame 25 Nm (18.4 lbf ft) Loctite ® 243™ Screw, foot brake lever return 12 Nm (8.9 lbf ft) spring pin Loctite ® 2701™ Screw, fork stub 15 Nm (11.1 lbf ft) Screw, front brake caliper 25 Nm (18.4 lbf ft) Screw, grab handle 25 Nm (18.4 lbf ft)
  • Page 31 TECHNICAL SPECIFICATIONS 4 Screw, front brake caliper M10x1.25 45 Nm (33.2 lbf ft) Loctite ® 243™ Screw, bottom shock absorber 80 Nm (59 lbf ft) Loctite ® 2701™ Screw, swingarm pivot 100 Nm (73.8 lbf ft) Screw, top shock absorber 80 Nm (59 lbf ft) Loctite ®...
  • Page 32 5 SUBSTANCES Super unleaded (ROZ 95) Standard/classification – DIN EN 228 (ROZ 95) Guideline – Only use super unleaded fuel that matches or is equivalent to the specified standard. – Fuel with an ethanol content of up to 10% (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.g., M15, M85, M100) or more than 10% ethanol (e.g., E15, E25, E85, E100).
  • Page 33 *3214823en* 3214823en 02.03.2023 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KISKA/KTM KTM.COM...
