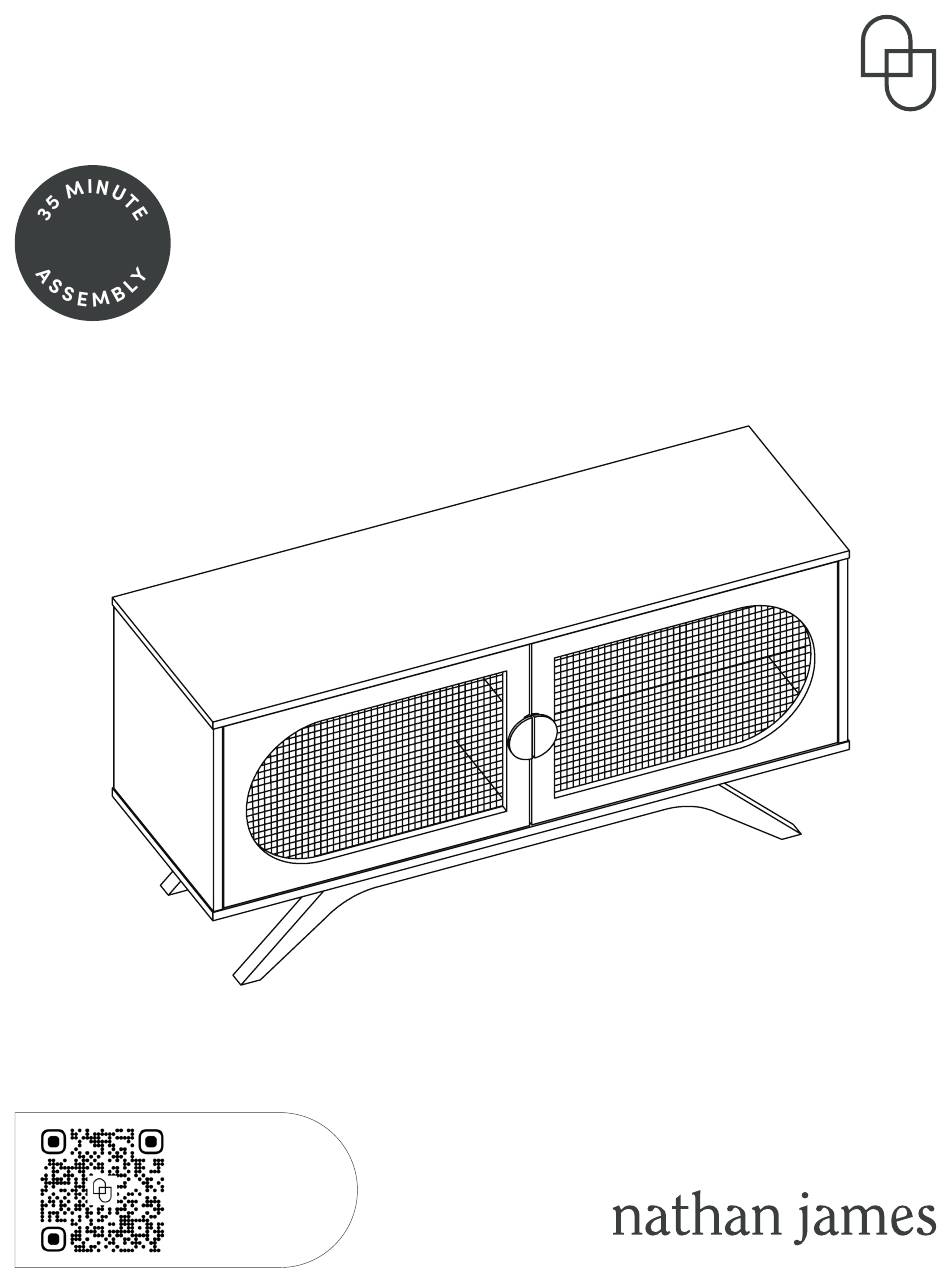

- Page 1 Let’s build the Logan Media Unit SKU 74501 Scan me! Free Lifetime Warranty 23-0213...
- Page 2 Ok, let’s What’s included get rolling Description Top Panel This should be easy, just follow Left Side Panel our instructions and you will be back to Netflix in no time. Right Side Panel D Middle Panel Estimated time for assembly 35:00 Left Back Panel Right Back Panel...
- Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping. 3. Please use hand tools to assemble this product. Do not use power tools.
- Page 4 What’s included Description Wooden Dowel 8*30MM 1/4 x 1 inch Hex Button Head Bolt 1/4 x 1 1/2 inch Hex Button Head Bolt 1/4 x 2 1/5 inch Hex Button Head Bolt T Nuts 1/4 inch Flat Washer 1/4 inch Lock Washer Allen Key Hinges M3.5x12MM Head Screw...
- Page 5 The goods...
- Page 6 Step 1 Let’s get this thing fired up! Attach the Left Side Panel (B), Right Side Panel (C), and Middle Panel (D) to the Top Panel (A) by aligning the holes with the Wooden Dowels (1). Then, use the 1/4 x 1 inch Hex Button Head Bolts (2) to connect them.
- Page 7 Step 2 Next, attach the Back Panels (E) & (F) to the slit of the Right, Left, Middle, and Top Panel (A). Then, insert the Wooden Dowel (1) and T Nuts (5) to the Panels (C), (D), and (B).
- Page 8 Step 3 Attach the Bottom Panel (G) to what you’ve assembled so far. Align the holes with the Wooden Dowels (1) and then insert the Flat Washer (6) and Lock Washer (7) to the 1/4 x 1 1/2 inch Hex Button Head Bolts (3) before tightening everything to 100%.
- Page 9 Step 4 Next, attach the Legs (H) to the Bottom (G) by aligning the holes with the Wooden Dowels (1) and using the 1/4 x 2 1/5 inch Hex Button Head Bolts (4) to connect them. You know the drill - insert the Flat Washer (6) and Lock Washer (7) to the Bolts (4) before tightening everything to 100%.
- Page 10 Step 5 It’s all coming together! Carefully rotate the unit so that it’s facing up and then attach the Hinges (9) to the Doors (I) using the M3.5x12MM Head Screws (10). Then, attach the Doors (I) to the Left and Right Panels (B)(C), following the pre-set holes. 9 10 10 9...
- Page 11 Is your cabinet door looking crooked or unevenly spaced? Then you’ve come to the right place. Follow the illustrations below to get your cabinet door aligned and ready for action.
- Page 12 Step 6 Insert the Shelf Pins (11) to the Left (B), Right (C), and Middle Panels (D) to your desired shelf height. Then place the Shelves (J) into the frame of the cabinet. We told you it would be easy!
- Page 13 Step 7 Last but not least, attach the Handle (12) to the Doors (I) using the M4*20MM Machine Screws (13). You did it! Time for a celebratory Netflix episode!
- Page 14 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...
-
Page 15: Proper Use
Any modifications will Nathan James and its parent companies cannot present the risk of creating significant safety issues which NJ will not be responsible for. be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product. - Page 16 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
